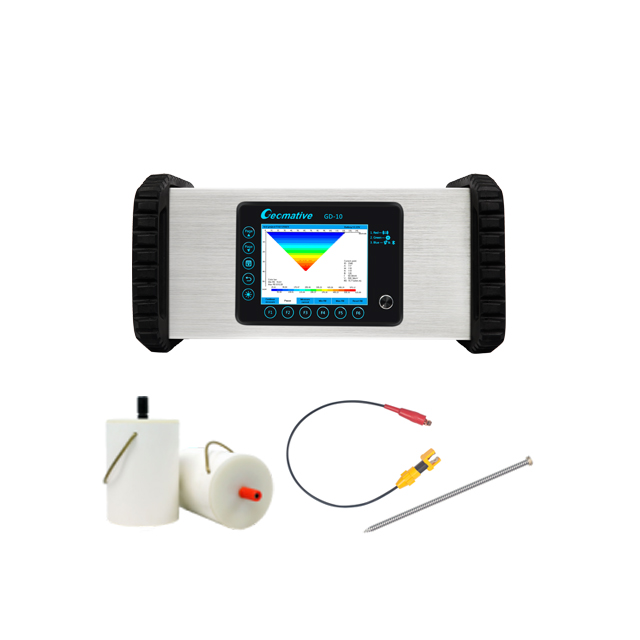

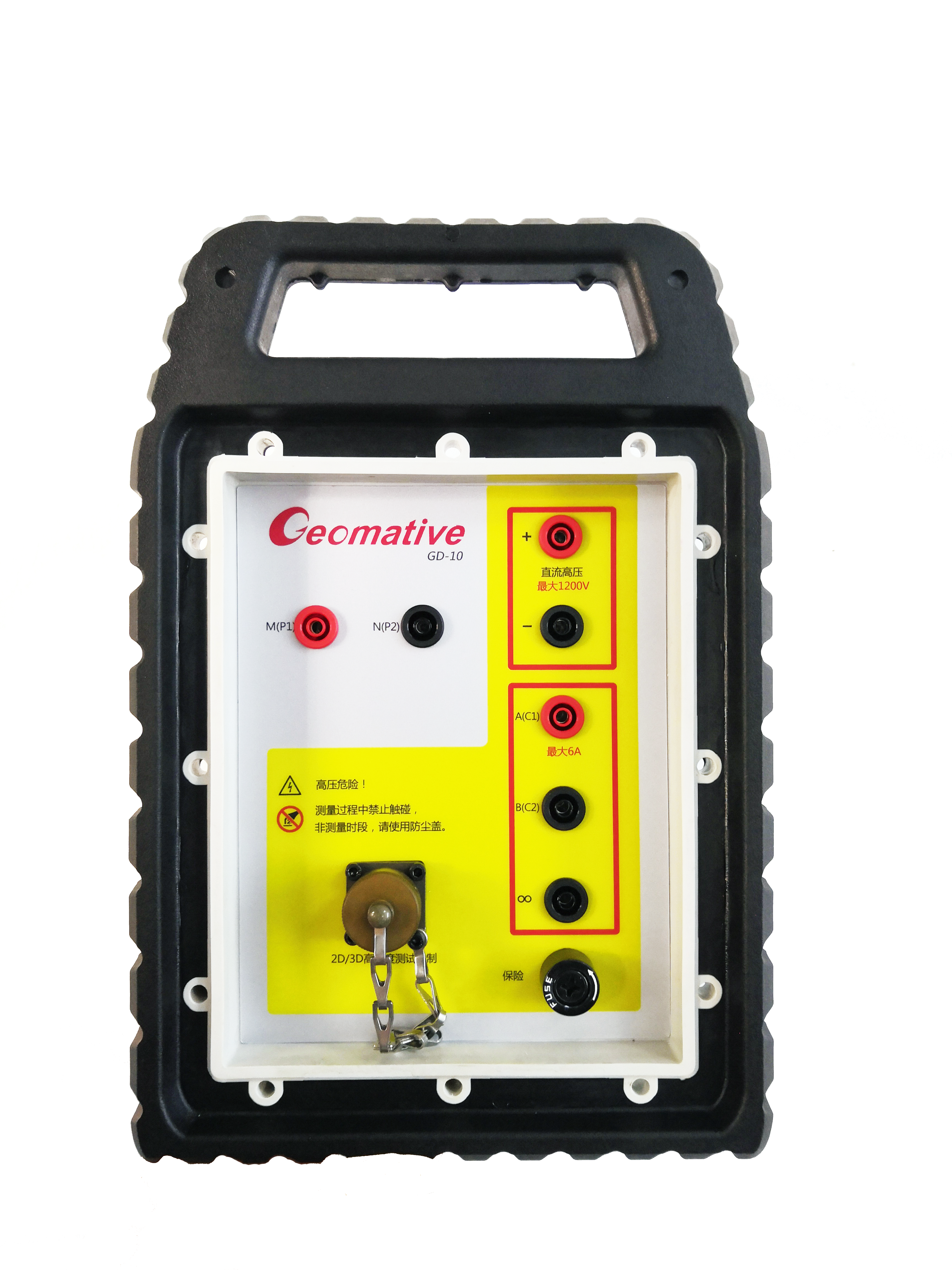

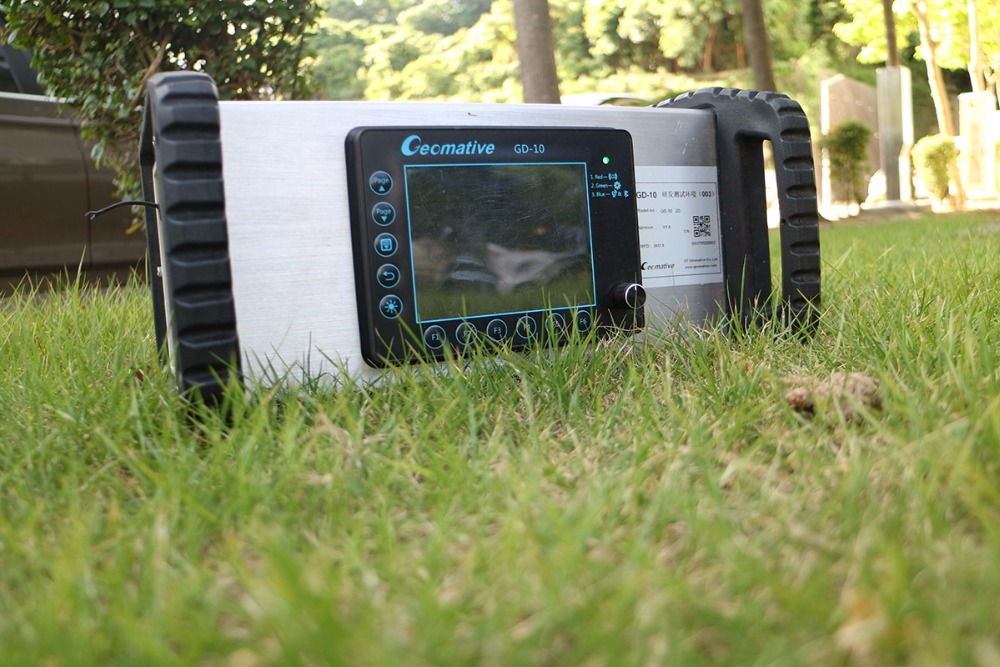

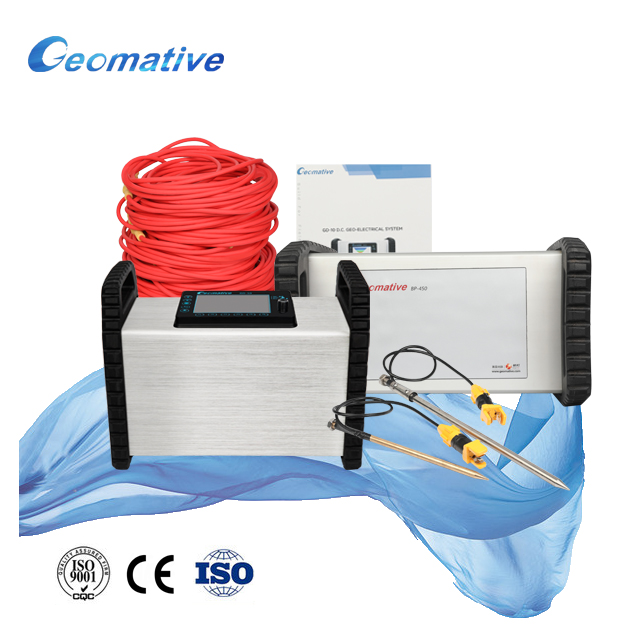

GD-10 Electrical Resistivity & IP Imaging System

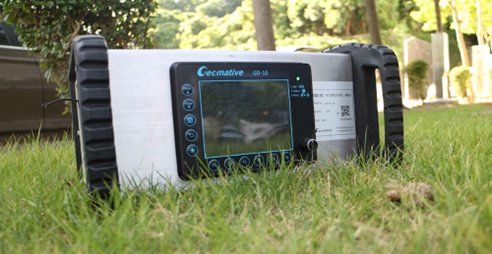

The classic GD10 electrical method system adopts a modular and upgradeable design, with low hardware maintenance and replacement costs. It supports multi-mode electrical imaging observation, allows for the examination of measurement point waveforms to assess data quality, and supports re-measurement of points.

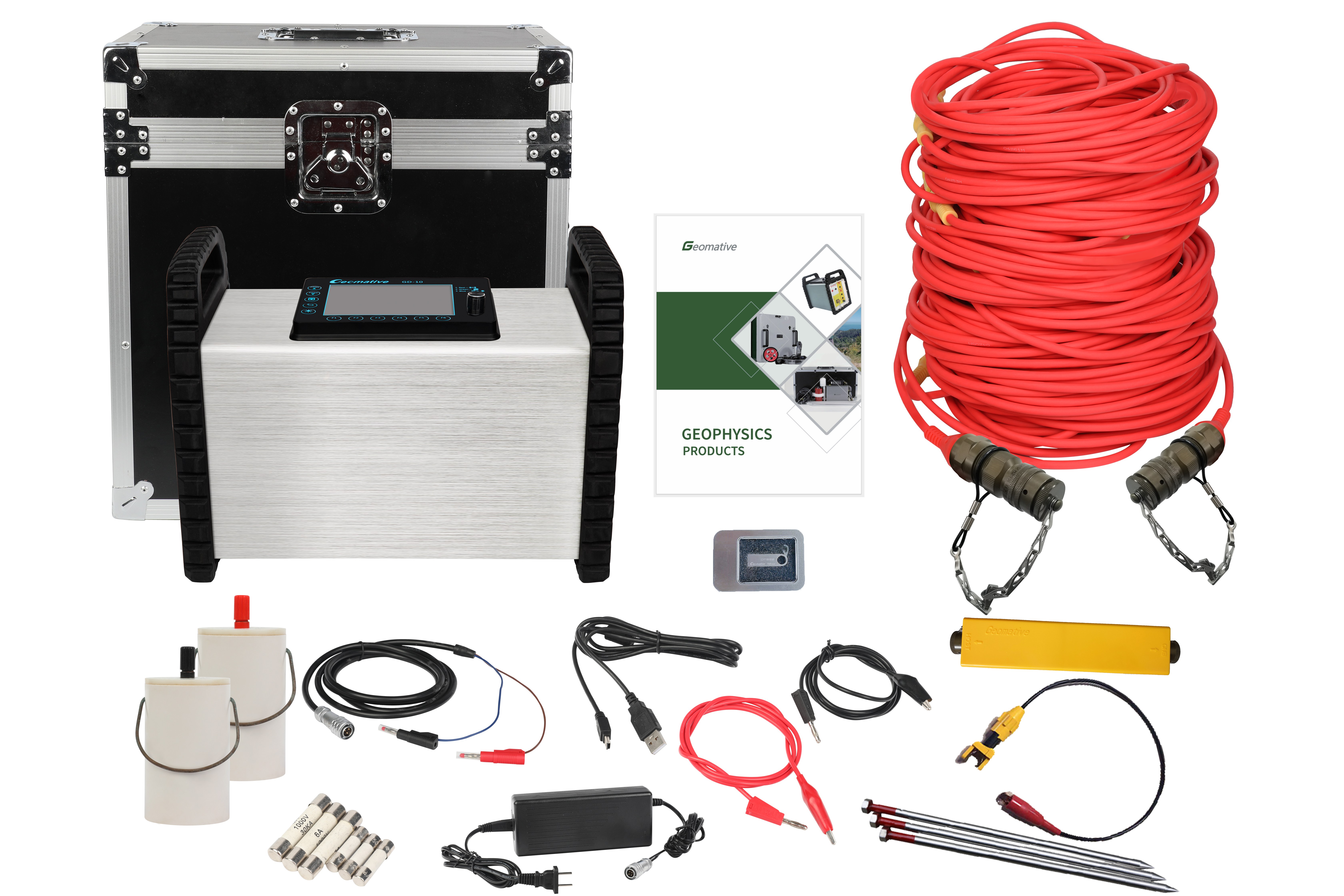

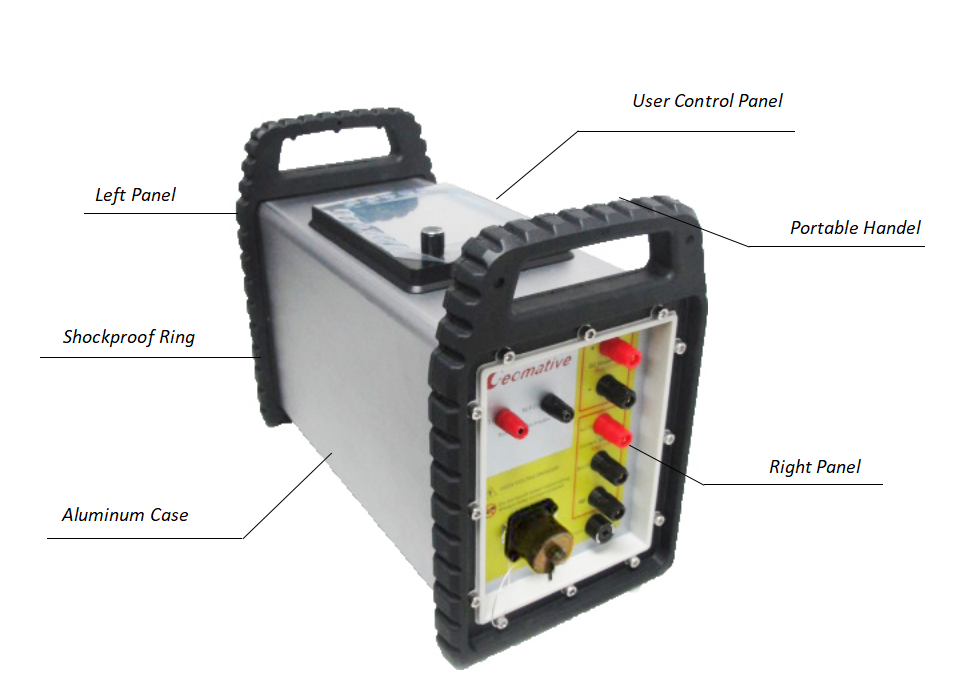

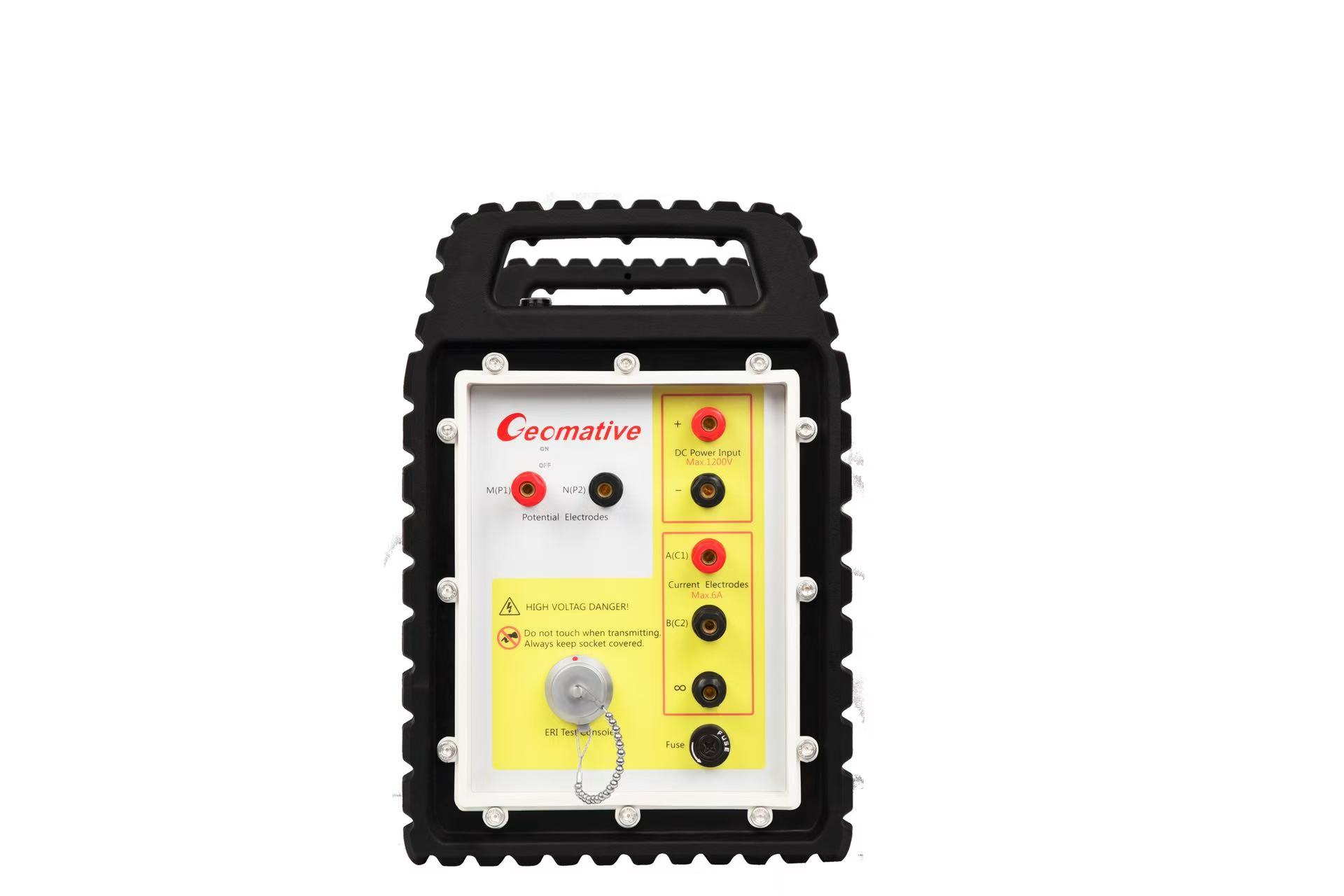

Product Overview

Functions

Performs natural potential (SP), one-dimensional resistivity/polarization sounding, and two-dimensional and three-dimensional high-density resistivity/polarization imaging measurements, supporting various electrode configurations (Wenner, Schlumberger, dipole-dipole, pole-pole, etc.).

Measurement Parameters

Maximum transmission power: 9000W (1500V × 6A); transmission voltage range: ±1500V; transmission current: ±6A; reception voltage range: ±24V; voltage accuracy: 0.1% ± 1μV; self-voltage compensation: ±10V; A/D conversion: 24-bit; selectable polarization period: 0.564s; number of iterations: 1255 times.

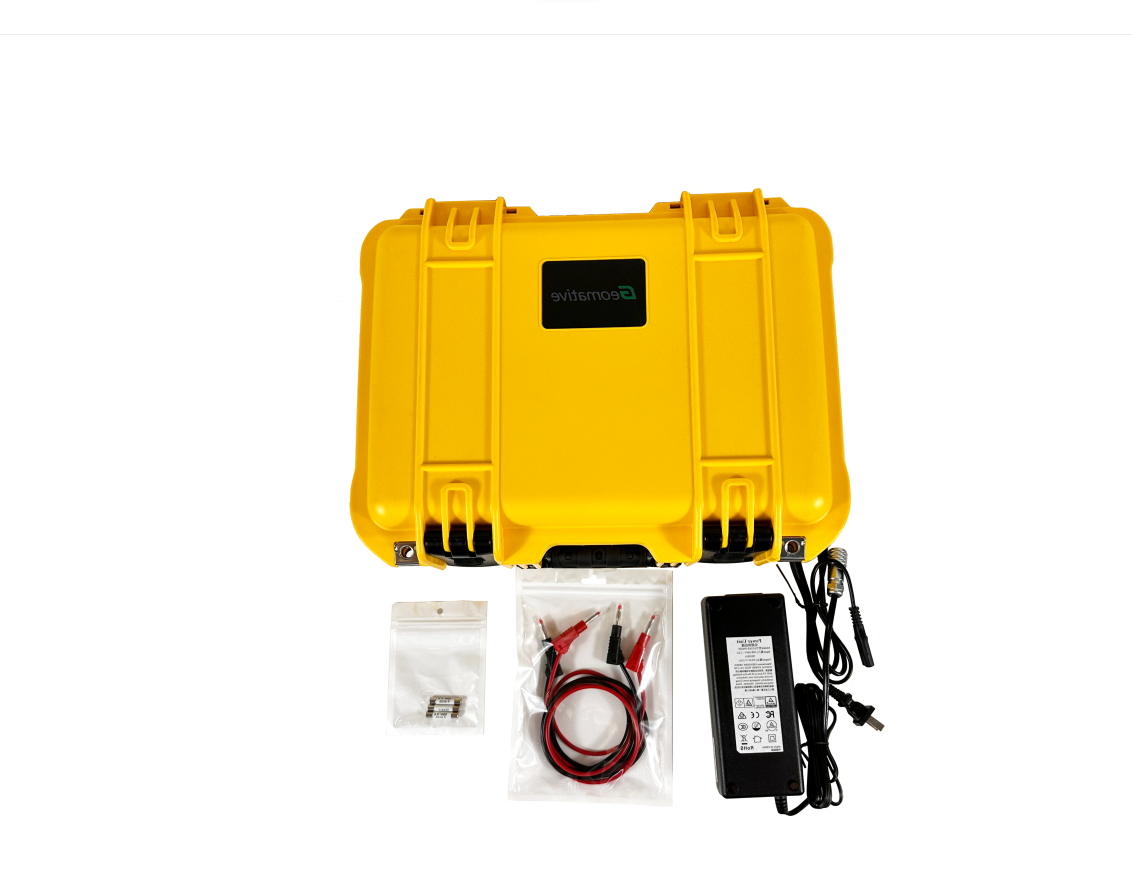

Product Catalog

Ordering Information

GD-10 Junior

GD-10 Senior

GD-10 Advance 2D

GD-10 Supreme 2D

GD-10 Supreme+ 2D+

GD-10 Supreme 3D

GD-10 Supreme+ 3D+

Deep Dive

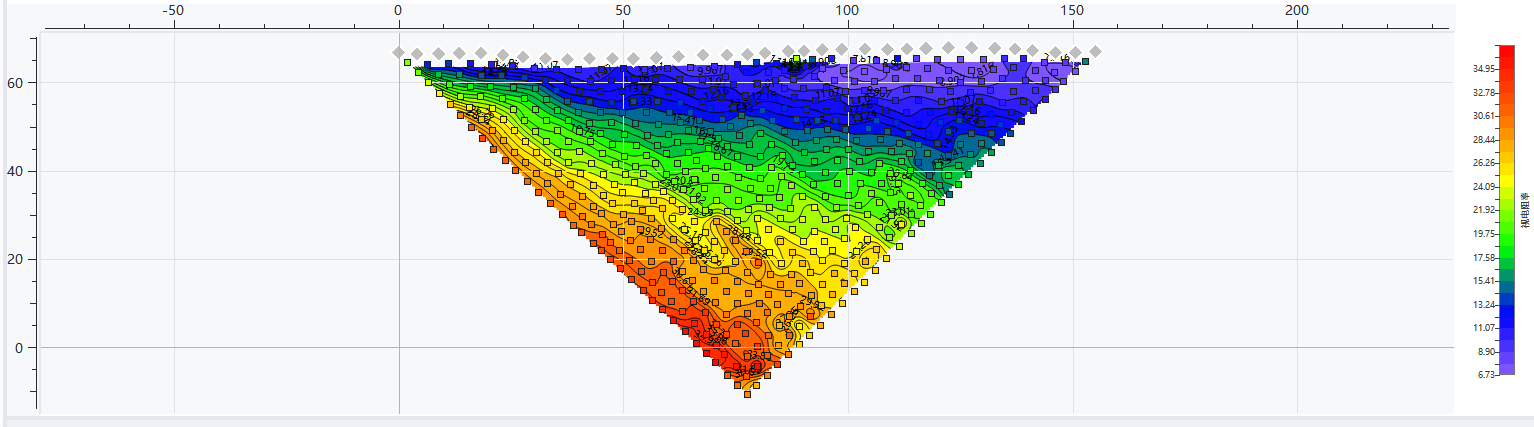

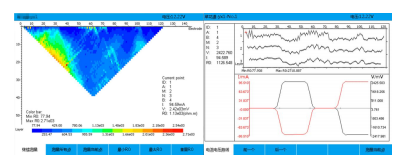

Multidimensional results show

To enable on-site engineers to always have a clear understanding of the quality of the observation data, the GD series host provides a variety of data browsing tools, including a list of measurement points (with detailed data), profile diagrams, cross-sectional diagrams, and waveform diagrams of the transmitted and received signals.

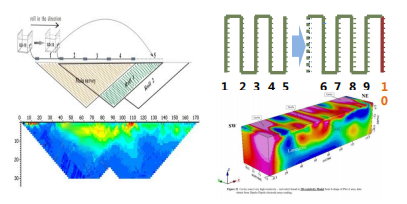

2D/3D scrolling function

2D scrolling, with limited cables, enables longer cross-section tests. The measurement points are not repeated, thereby enhancing the on-site work efficiency. 3D scrolling, where small areas are combined into larger ones, increases the automatic coordinate conversion and makes the cross-section more complete.

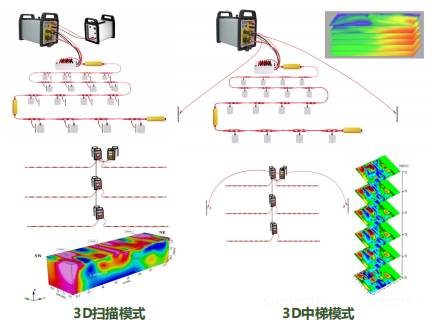

Rich and diverse connection methods

A variety of wiring methods and connection techniques are provided to meet the requirements of different terrains and customer needs, ensuring the authenticity and accuracy of the data to the greatest extent.

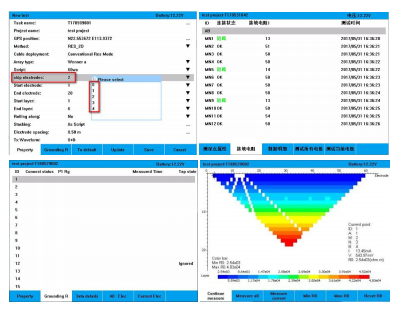

Electrode settings for multiple scenarios

Support equidistant jump electrodes. Small-spacing cables can complete tests with large electrode spacings. In the field, when encountering rocks or gullies that make it impossible to install electrodes, the position can be left unconnected, which will not affect the testing of the entire section. The system provides a detailed list of grounding resistance test data, allowing for intuitive location of electrodes with poor grounding. After taking grounding improvement measures, the affected electrode can be retested individually, or a certain cable can be retested, avoiding the need for repeated full retests. This can not only save field batteries but also improve testing efficiency.

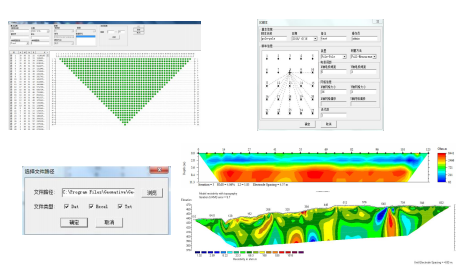

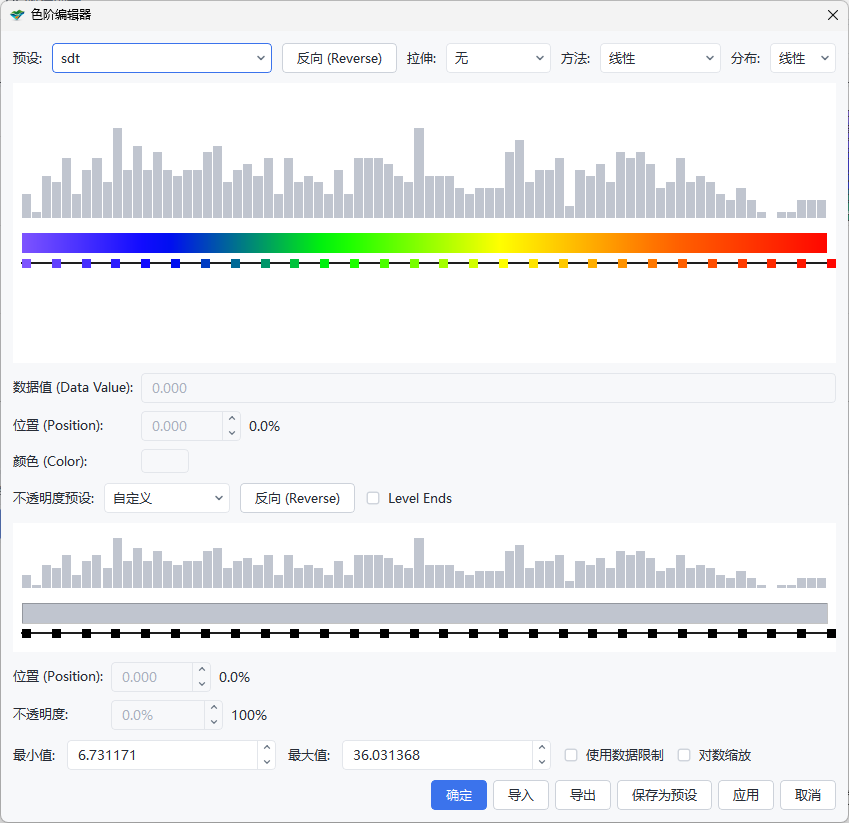

Rich programmable scripts and data processing

Based on the concept of test programmability and customizability, Geomative Studio has designed a scripting method. Users can plan the test area and trim the measurement points in advance. The system supports scripts based on standard devices for trimming, as well as custom scripts that can be fully customized by users and imported from external Excel files. To reduce interference between the measurement points before and after, the script supports three test point testing sequences: layer-by-layer, rolling surface-by-rolling surface, and staggered random. After data collection is completed, Geomative Studio manages the host data and supports the export of various file formats such as txt, excel, dat, and urf, facilitating data processing. At the same time, terrain files are added to the exported data for inversion.

DIGspace

Processing capabilities of raw data: Waveform viewing, automatic removal of bad points upon recalculation Conversion from two-dimensional to one-dimensional Device integration Online inversion

Platform Capabilities: Project and Data Management Real-time 3D Visualization Online Inversion

Gain a deeper understanding of the DIG Space Geophysical Digital Platform...
Register a DIG Space account to receive 50 GeoCoins and embark on your DIG Space exploration journey...

Application Case

Brazil Gold Ore Exploration Case

Tailings Pond Bottom Real‑Time Online Monitoring System Case

Cross‑hole High‑density Electrical Imaging Case of Anti‑seepage Wall

Groundwater Investigation for Leachate Treatment Plant

Foundation Depth Survey Case of Beijing Five‑Pagoda Temple

Landfill Leakage Investigation

Key Features

Independent Innovation "Distributed" Mode: Balances the efficiency of distributed wiring with the stability of centralized signals. It enables quick transitions at field points and eliminates pressure during long sections.

Configure resistivity (RES), self-electricity (SP), induced electricity (IP); 1D electrical sounding, 2D/3D high-density imaging, 4D time-series monitoring covering all aspects; operations can be carried out on the ground, at the well site, between wells, and underwater / in tunnels.

It can be externally powered up to 1500V/6A (9000W), and has strong capabilities for deep exploration.

Self-powered SP compensation of 10V, superior suppression of power frequency noise by more than 120dB, clear weak signals, and more reliable high resistance / deep data.

Real-time display of multi-dimensional data (profiles / sections / waveforms), on-site quality control can be performed immediately, and unqualified measurement points can be re-measured immediately.

The main unit is portable, the cables are lightweight, and construction in mountainous or complex terrains is stress-free.

Technical Specifications

Parameter	GD-10 Junior	GD-10 Senior	GD-10 Advance 2D	GD-10 Supreme 2D	GD-10 Supreme+ 2D+	GD-10 Supreme 3D	GD-10 Supreme+ 3D+
Max. Transmit Power	7200W	7200 W (Standard) / 9000 W (Optional)	7200 W (Standard) / 9000 W (Optional)	7200 W (Standard) / 9000 W (Optional)	7200 W (Standard) / 9000 W (Optional)	7200 W (Standard) / 9000 W (Optional)	7200 W (Standard) / 9000 W (Optional)
Max. Transmit Voltage	±600V	1200 V (Standard) / 1500 V (Optional)	1200 V (Standard) / 1500 V (Optional)	1200 V (Standard) / 1500 V (Optional)	1200 V (Standard) / 1500 V (Optional)	1200 V (Standard) / 1500 V (Optional)	1200 V (Standard) / 1500 V (Optional)
Max. Transmit Current	±4A	±6A	±6A	±6A	±6A	±6A	±6A
IP Period	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable
Output Waveform	Square Wave	Square Wave	Square Wave	Square Wave	Square Wave	Square Wave	Square Wave
Voltage Measurement Range	±24V	±24V	±24V	±24V	±24V	±24V	±24V
Voltage Accuracy	0.3%±1μV	0.3%±1μV	0.3%±1μV	0.3%±1μV	0.3%±1μV	0.3%±1μV	0.3%±1μV
SP Compensation	±10V (auto)	±10V (auto)	±10V (auto)	±10V (auto)	±10V (auto)	±10V (auto)	±10V (auto)
A/D Conversion Resolution	24-bit	24-bit	24-bit	24-bit	24-bit	24-bit	24-bit
Stacking Cycles	1–255	1–255	1–255	1–255	1–255	1–255	1–255
Storage	≥8GB	≥8GB	≥8GB	≥8GB	≥8GB	≥8GB	≥8GB
Built-in Battery	16.8 V Lithium Battery	16.8 V Lithium Battery	16.8 V Lithium Battery	16.8 V Lithium Battery	16.8 V Lithium Battery	16.8 V Lithium Battery	16.8 V Lithium Battery
Charging Voltage	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)
External Power	DC 24V~60V	DC 30V~60V	DC 30V~60V	DC 30V~60V	DC 30V~60V	DC 30V~60V	DC 30V~60V
Operating Temperature	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃
Storage Temperature	-20°C~+60°C	-20°C~+60°C	-20°C~+60°C	-20°C~+60°C	-20°C~+60°C	-20°C~+60°C	-20°C~+60°C
Dimensions	39×20×29 cm	39×20×29 cm	39×20×29 cm	39×20×29 cm	39×20×29 cm	39×20×29 cm	39×20×29 cm
Weight	7.5 kg	8 kg	8 kg	8 kg	8 kg	8 kg	8 kg
Display	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480
Interfaces	A/B/M/N/∞, Multi-electrode Cable Socket 1/2, Charger, External Power, USB, RS485	A/B/M/N/∞, Multi-electrode Cable Socket 1/2, Charger, External Power, USB, RS485	A/B/M/N/∞, ERI Test Console, Charger, External Power, USB, RS485	A/B/M/N/∞, ERI Test Console, Charger, External Power, USB, RS485	A/B/M/N/∞, ERI Test Console, Charger, External Power, USB, RS485	A/B/M/N/∞, ERI Test Console, Charger, External Power, USB, RS485	5.7-inch Full-color LCD, 640×480
Self-Potential (SP)	√	√	√	√	√	√	√
1D Resistivity	√	√	√	√	√	√	√
1D IP	—	√	√	√	√	√	√
2D Resistivity	—	—	√	√	√	√	√
2D IP	—	—	—	—	√	—	√
3D Resistivity	—	—	—	—	—	√	√
3D IP	—	—	—	—	—	—	√

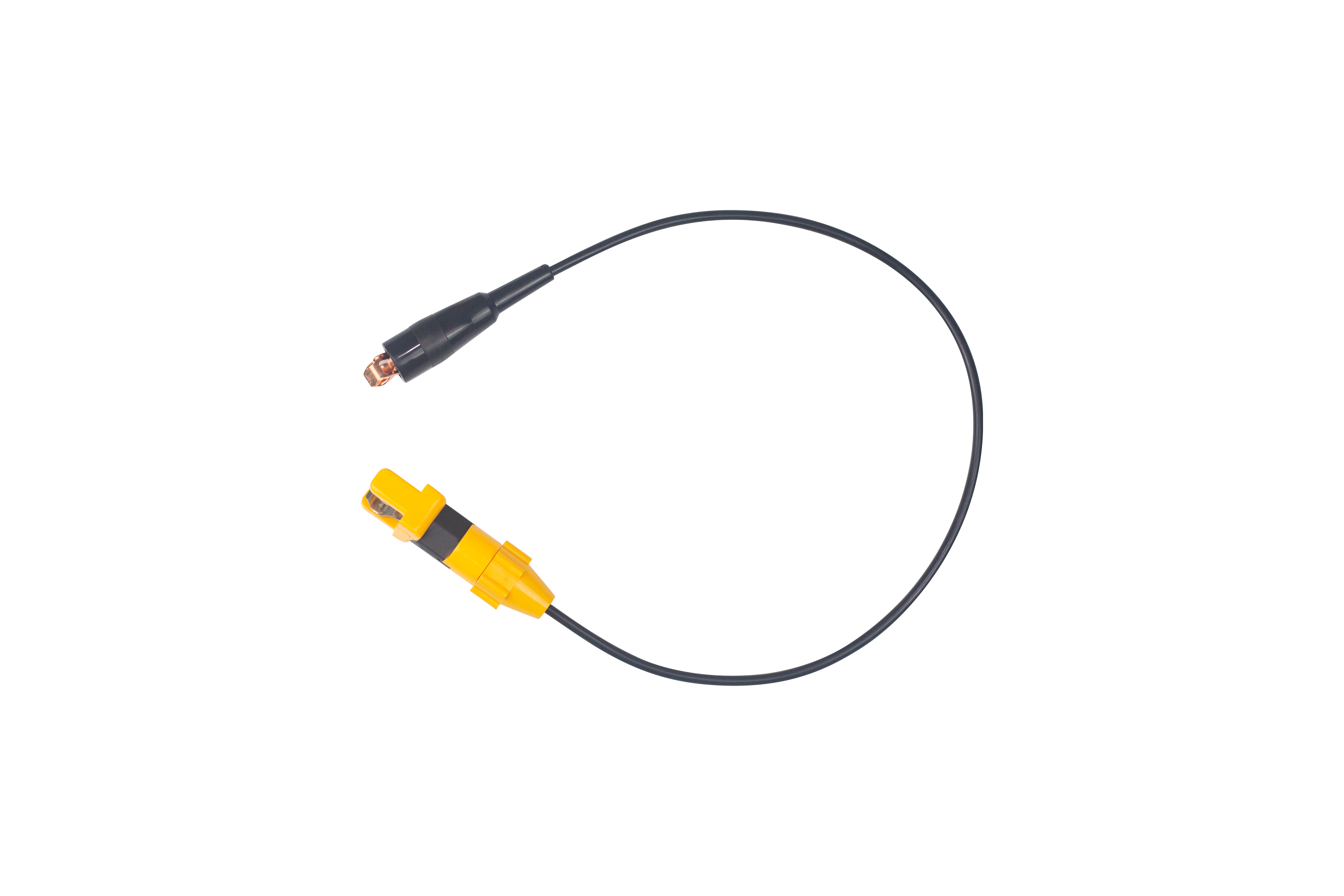

Parts and Accessories

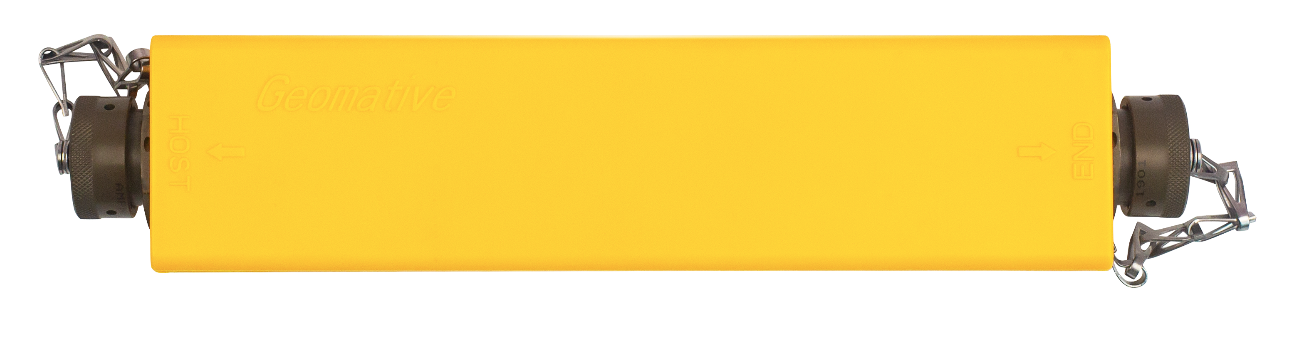

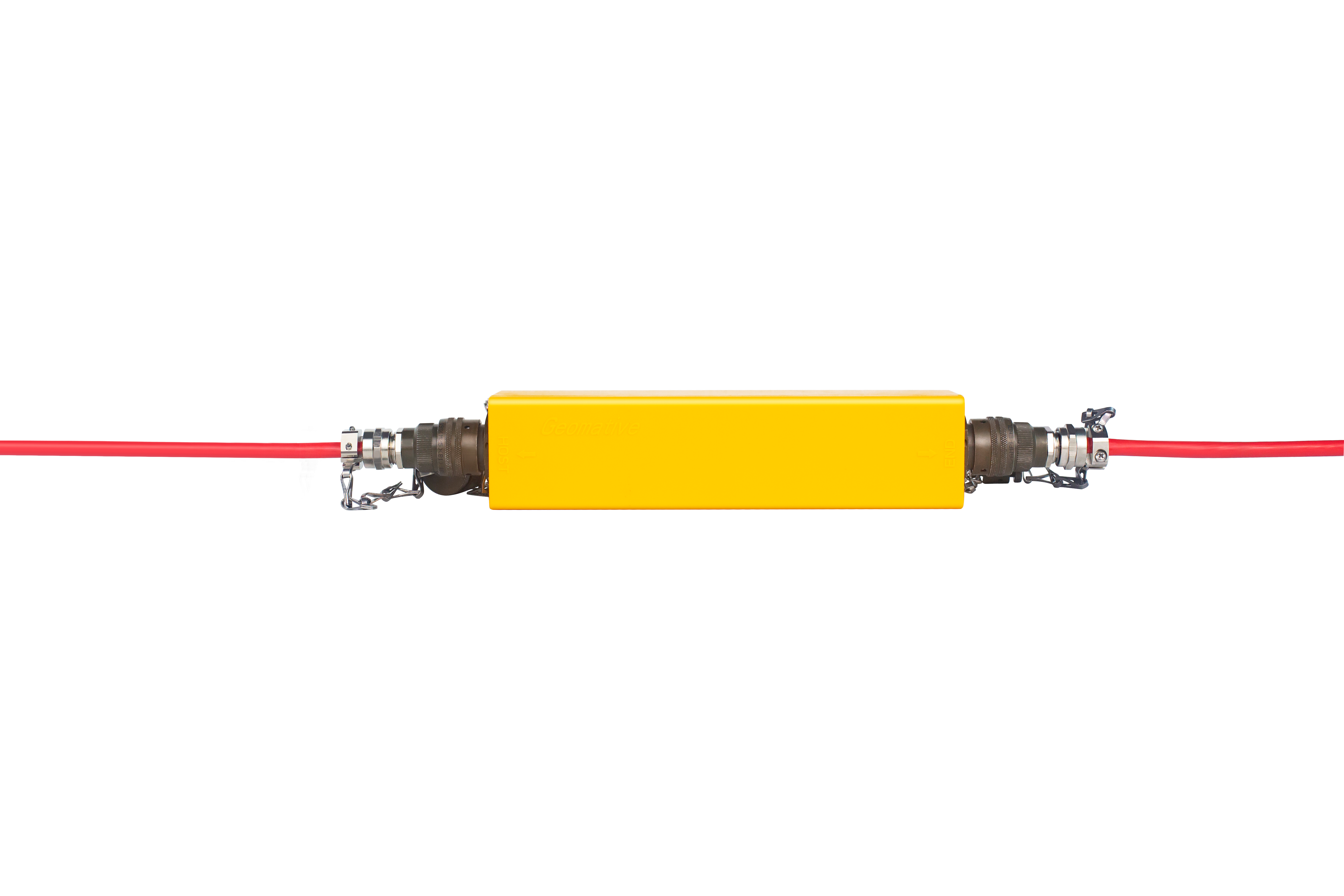

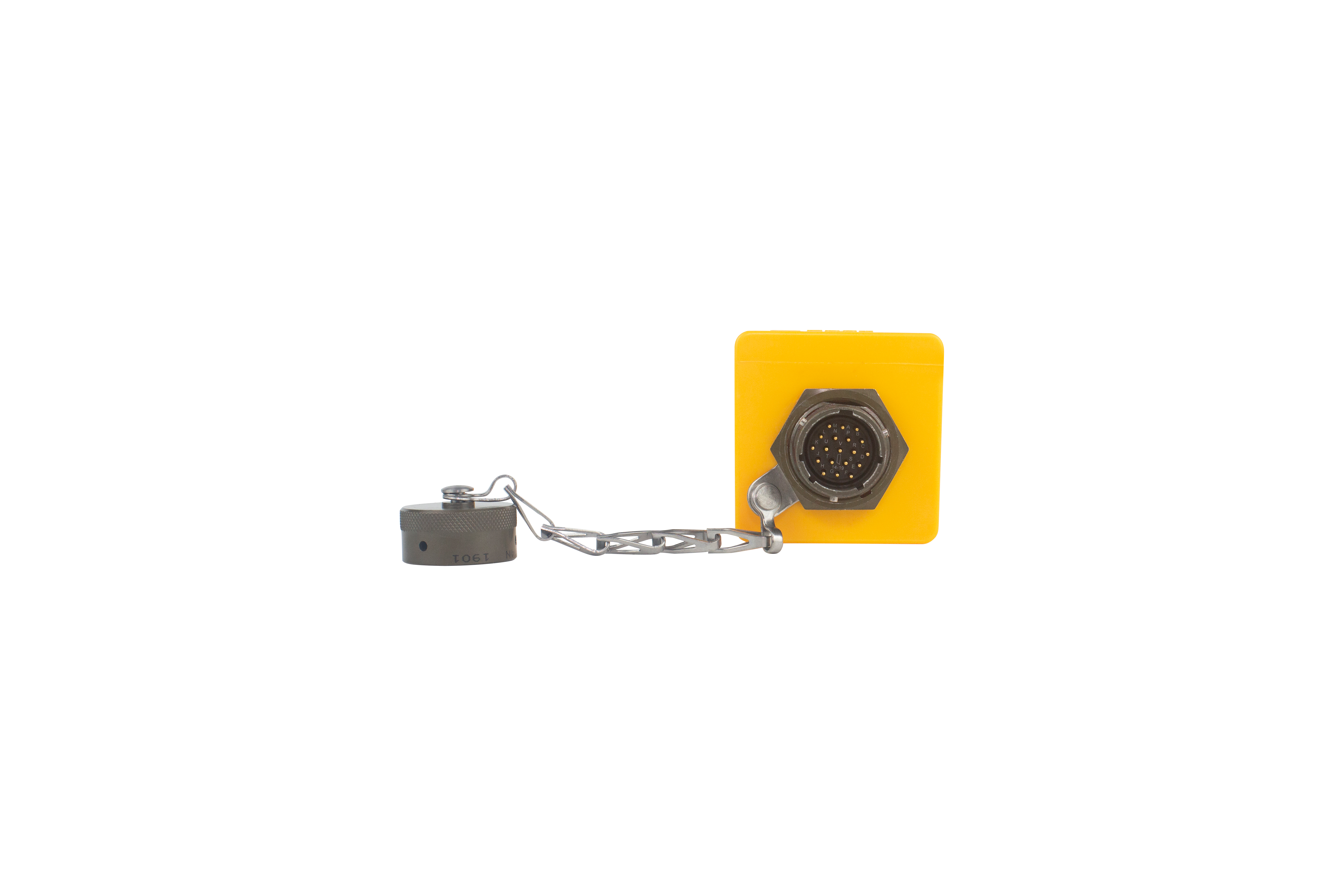

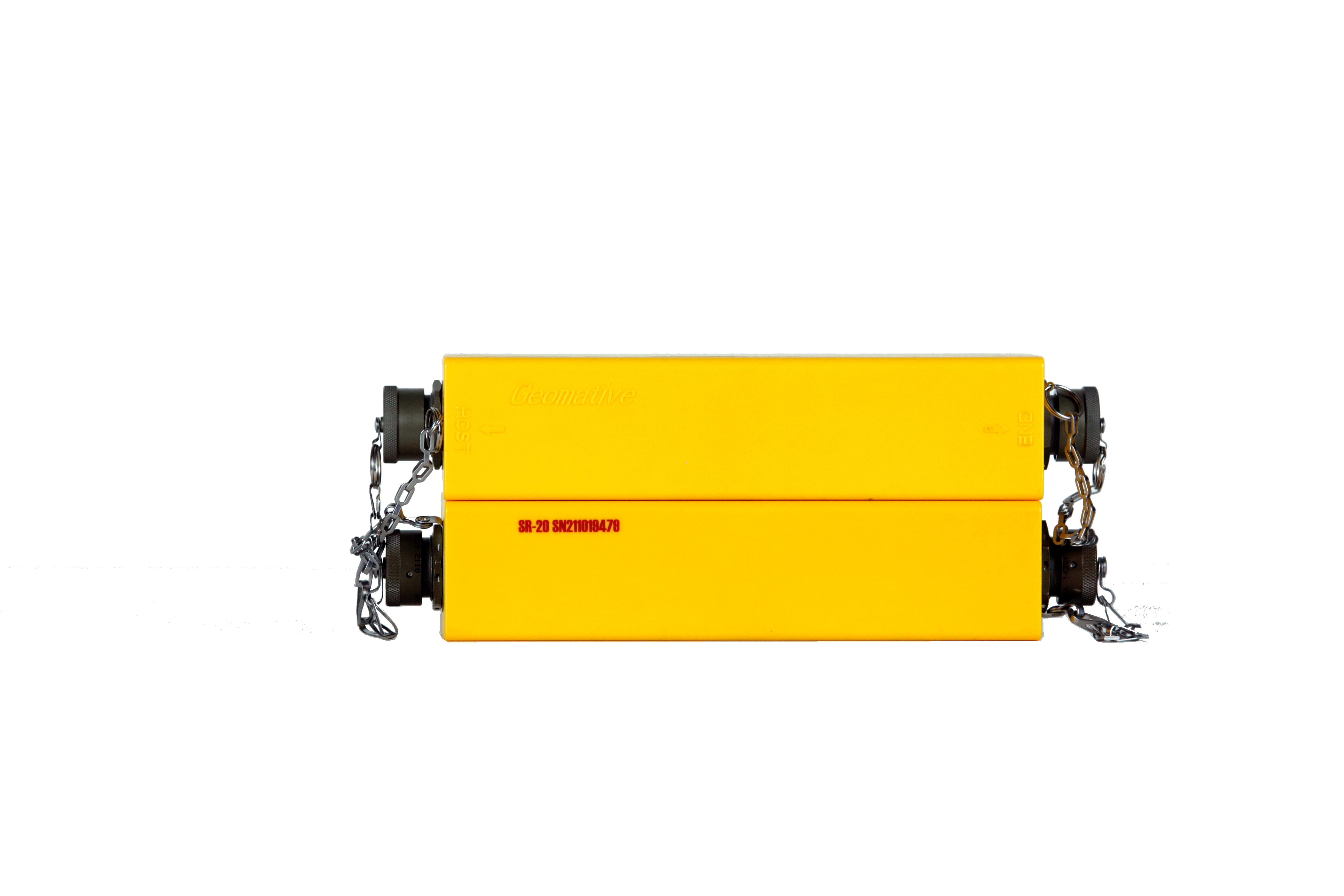

The cable head is the connecting unit between the high-density cable and the main unit, used for the acquisition and switching of electrode signals. It features a PC and ABS material casing, which is sturdy and durable; the American Amphenol waterproof connector is convenient and reliable; and it is designed to be maintenance-free, requiring no charging.

- Specifications: Length 215mm, Outer Diameter 50mm

- Number of Cores:

- Protection Rating: IP67

Order Info

Material Code	Model	Name	Material	Weight	Application	Number of Acquisition Channels
M1.0001	SR-10	Smart Bidirectional Cable Head	PC+ABS Housing	0.4kg	Distributed Survey	Single-channel
M1.0006	SR-60	Single-channel Distributed Switch Box	Aluminum Alloy Housing	5kg	Combined Water–Land and Borehole–Surface Surveys	Single-channel

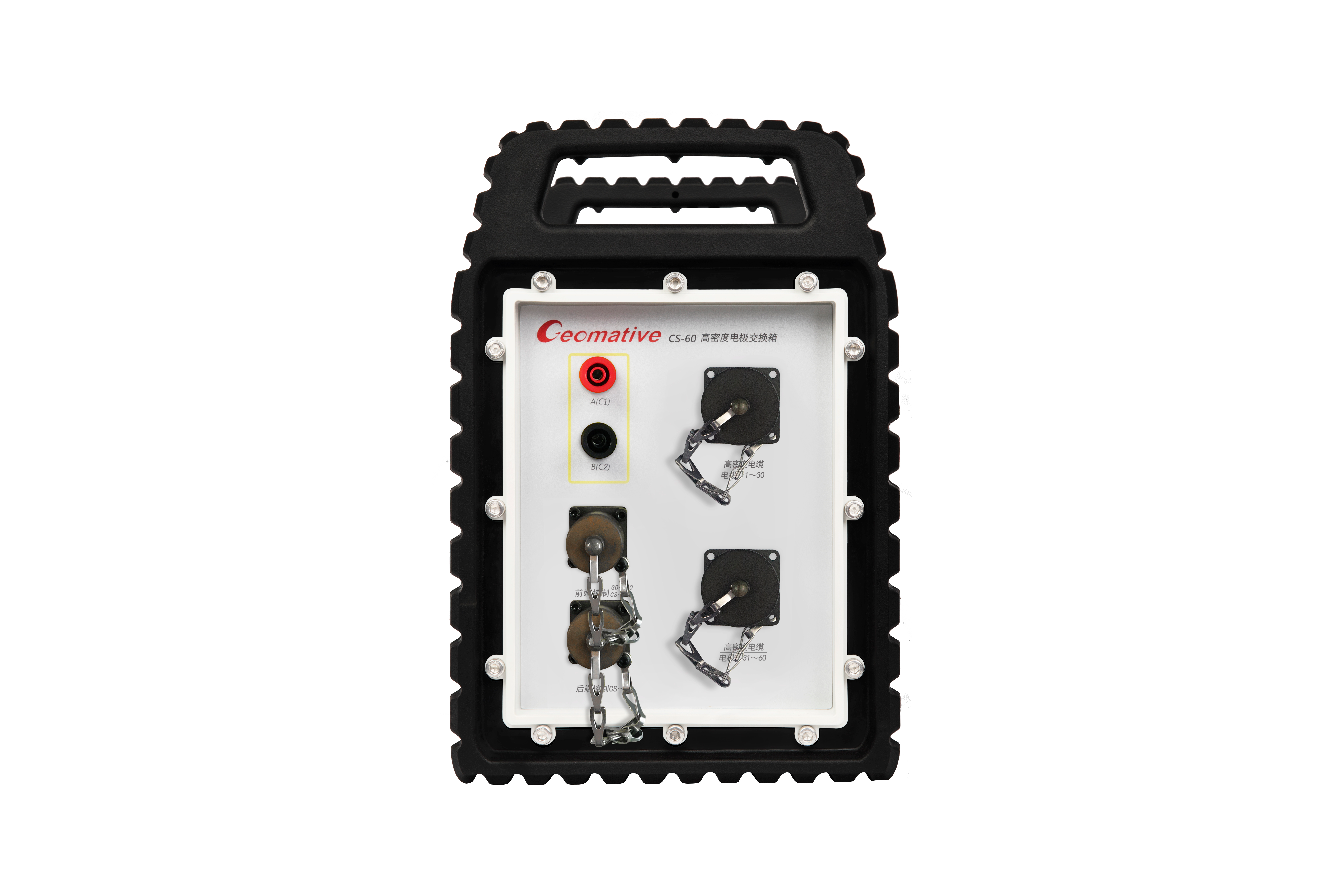

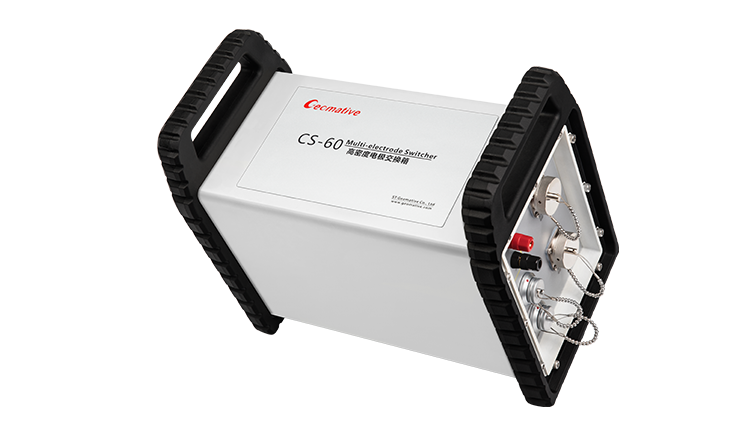

The centralized switching box is used for centralized management of multi-channel high-density cables, allowing connection to high-density cables and enabling automated measurement of large-scale arrays.

- Specifications: 201x168x300mm

- Protection rating: IP65

Material Code	Model	Name	Material	Weight	Application	Acquisition Channel
M1.0003	CS-60	Centralized Switch Box	Aluminum Alloy Housing	5kg	Surface, Cross-hole, Laboratory	Single-channel

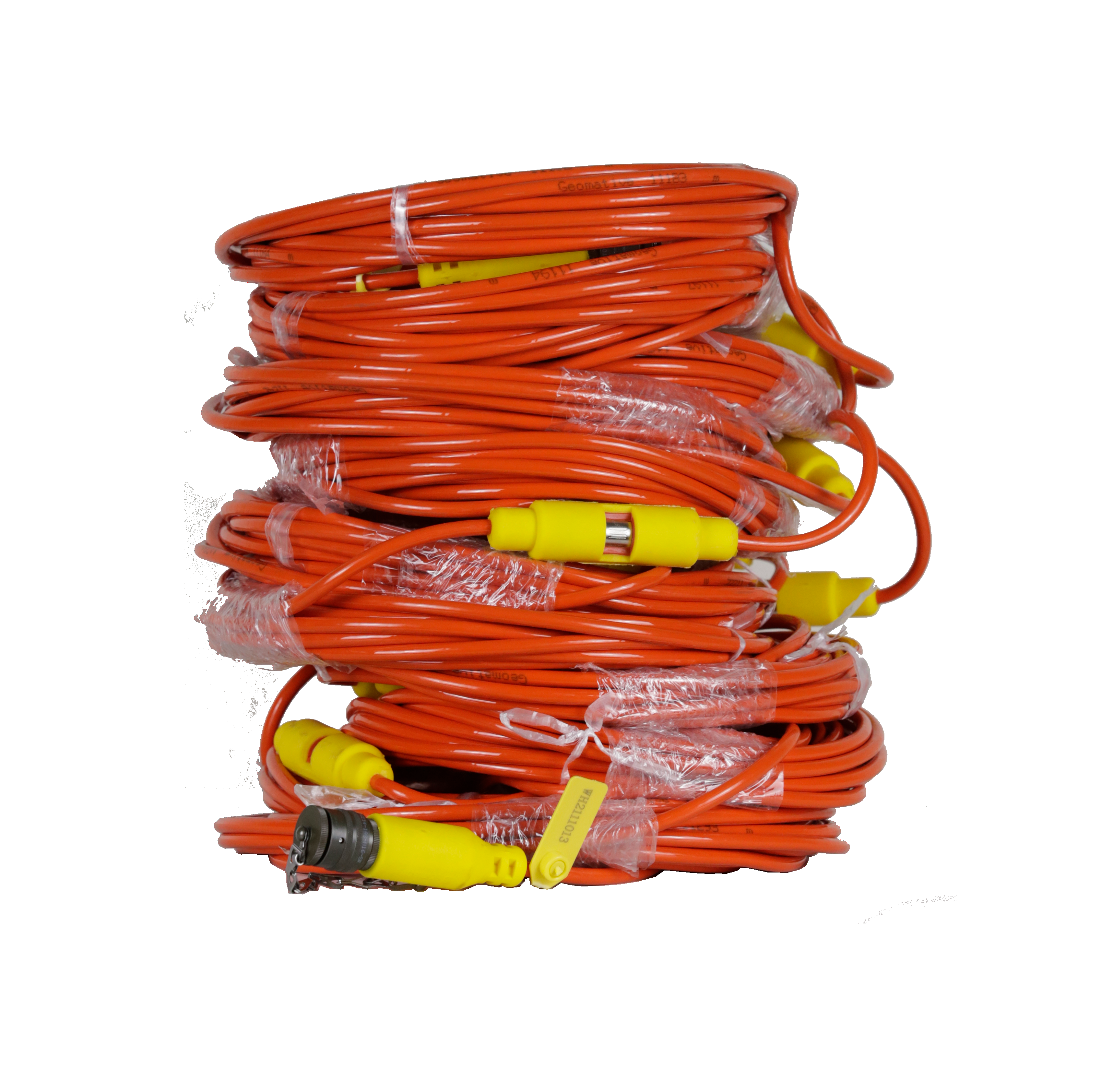

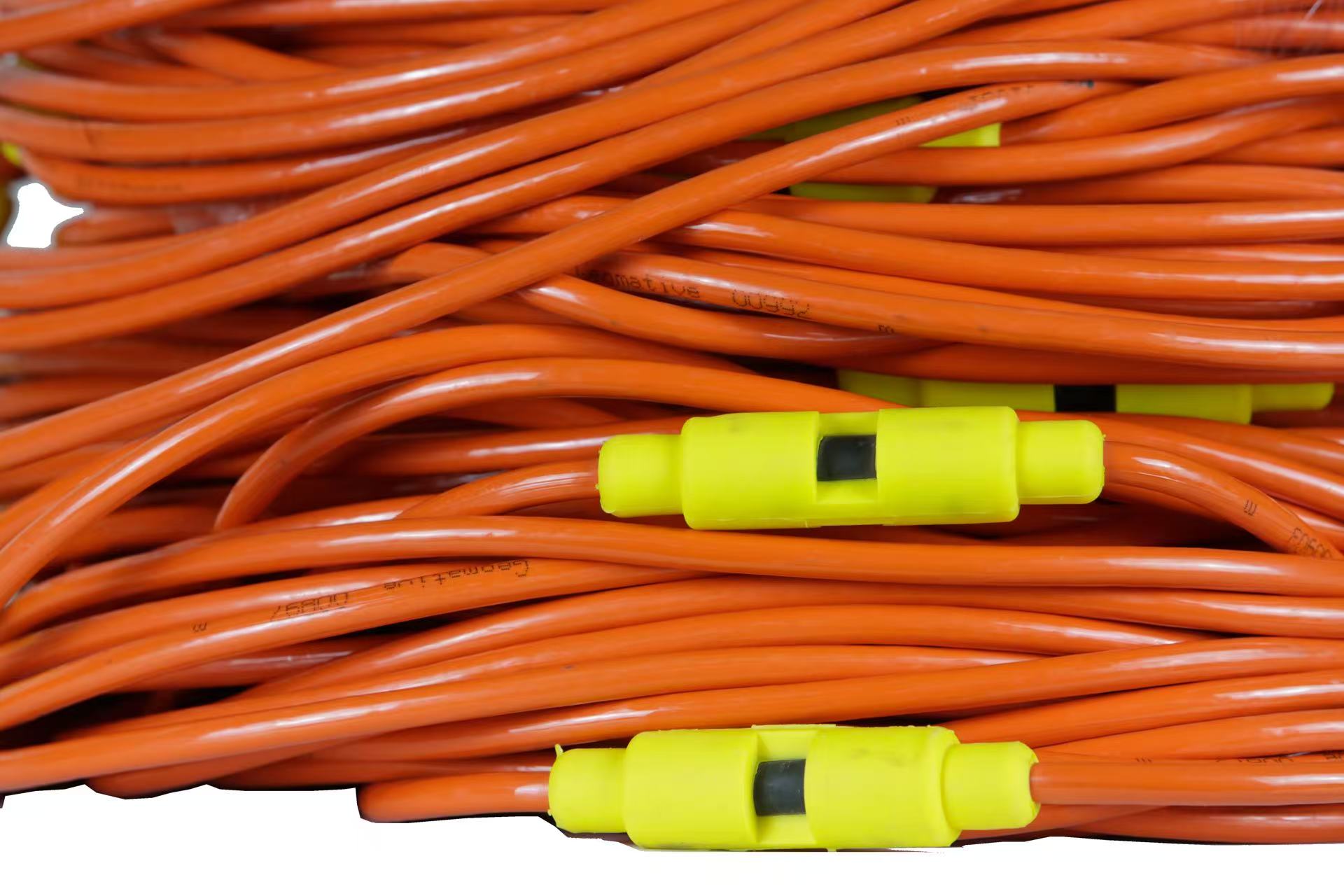

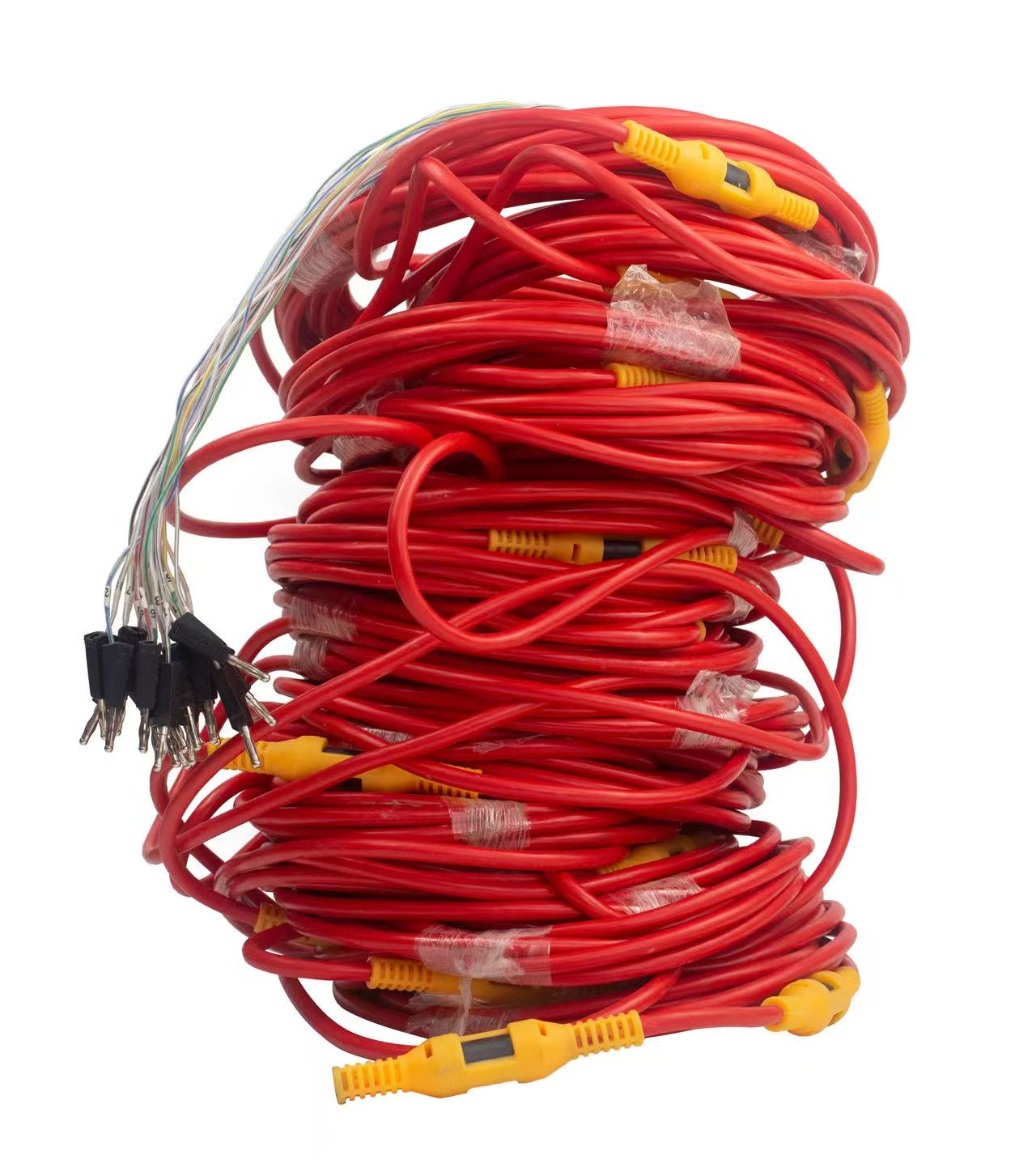

High-density cables are core components of high-density electrical prospecting. They connect to electrodes through multiple taps, transmitting underground electric field signals to the cable head for acquisition and switching. Made with a copper core and TPU outer sheath, they are flexible and tensile-resistant, suitable for deployment in complex field environments. The maximum transmission voltage is 800V, and the maximum transmission current is 2A, compatible with the full range of first- to third-generation electrical instruments. The entire set of high-density cables is structurally divided into two categories: centralized and distributed. The centralized type is further subdivided into three scenarios: land, surface water, and underwater/well. Each secondary category is also classified into single-tap and double-tap based on the type of tap.

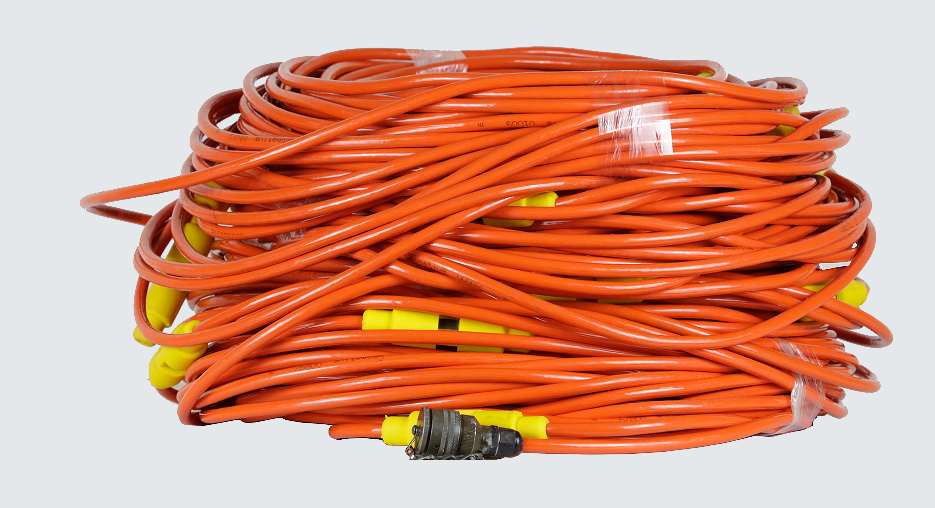

High-density land cables are the standard signal transmission lines for terrestrial electrical prospecting. They connect to electrodes through taps, with all tap signals transmitted to the host via a single cable. The cables feature a copper core with a TPU outer sheath, offering flexibility and tensile resistance, with a maximum transmission voltage of 800V and a maximum transmission current of 2.5A. Tap spacing ranges from 0.5m to 20m, supporting multiple specifications of 5/10/15/30/60 taps. Depending on the tap type, they are categorized into single-tap and double-tap cables, suitable for both land electrical profiling and areal surveys. Single-tap cables utilize a single tap structure, connecting each tap to electrodes through an independent channel. Their simple structure and easy maintenance make them the mainstream choice for high-density electrical prospecting.

- Specifications: 10~30 taps, 0.5~20m spacing, maximum 800V/2.5A

- Protection rating: IP66

Order Info

Material Code	Model	Name	Material	Specification	Length	Max. Transmit Voltage	Max. Transmit Current	Number of Taps	Application Scenario	Default Spacing
M1.2004	CB10-2	Single 10-tap Cable, 2 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	21m	800V	2.5A	10	Land Survey	2.1m
M1.2006	CB10-5	Single 10-tap Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	51m	800V	2.5A	10	Land Survey	5.1m
M1.2007	CB10-10	Single 10-tap Cable, 10 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	102m	800V	2.5A	10	Land Survey	10.2m
M1.2008	CB10-15	Single 10-tap Cable, 15 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	152m	800V	2.5A	10	Land Survey	15.2m
X	CB10-X (Custom)	Customized	Copper Conductor + TPU Outer Jacket	Single-tap	X	800V	2.5A	10	Land Survey	X
M1.2001	CE5-5	Dual 5-tap Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Dual-tap	25.5m	800V	2.5A	5	Land Survey	5.1m
M1.2002	CE5-10	Dual 5-tap Cable, 10 m Spacing	Copper Conductor + TPU Outer Jacket	Dual-tap	51m	800V	2.5A	5	Land Survey	10.2m
X	CE5-X	Customized	Copper Conductor + TPU Outer Jacket	Dual-tap	X	800V	2.5A	5	Land Survey	X
M1.2014	CB30-5	Single 30-tap Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	151m	800V	2.5A	30	Land Survey	5.1m
M1.2010	CB15-5	Single 15-tap Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	76.5m	800V	2.5A	15	Land Survey	5.1m
M1.2011	CB15-10	Single 15-tap Cable, 10 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	153m	800V	2.5A	—	—	—

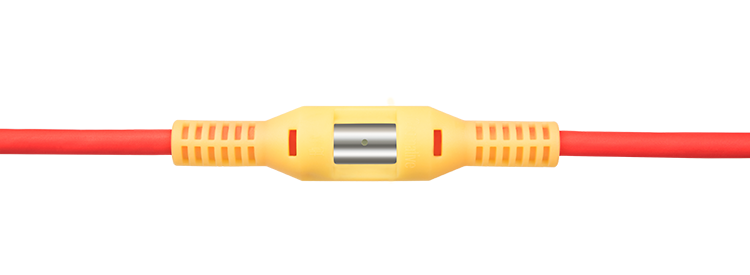

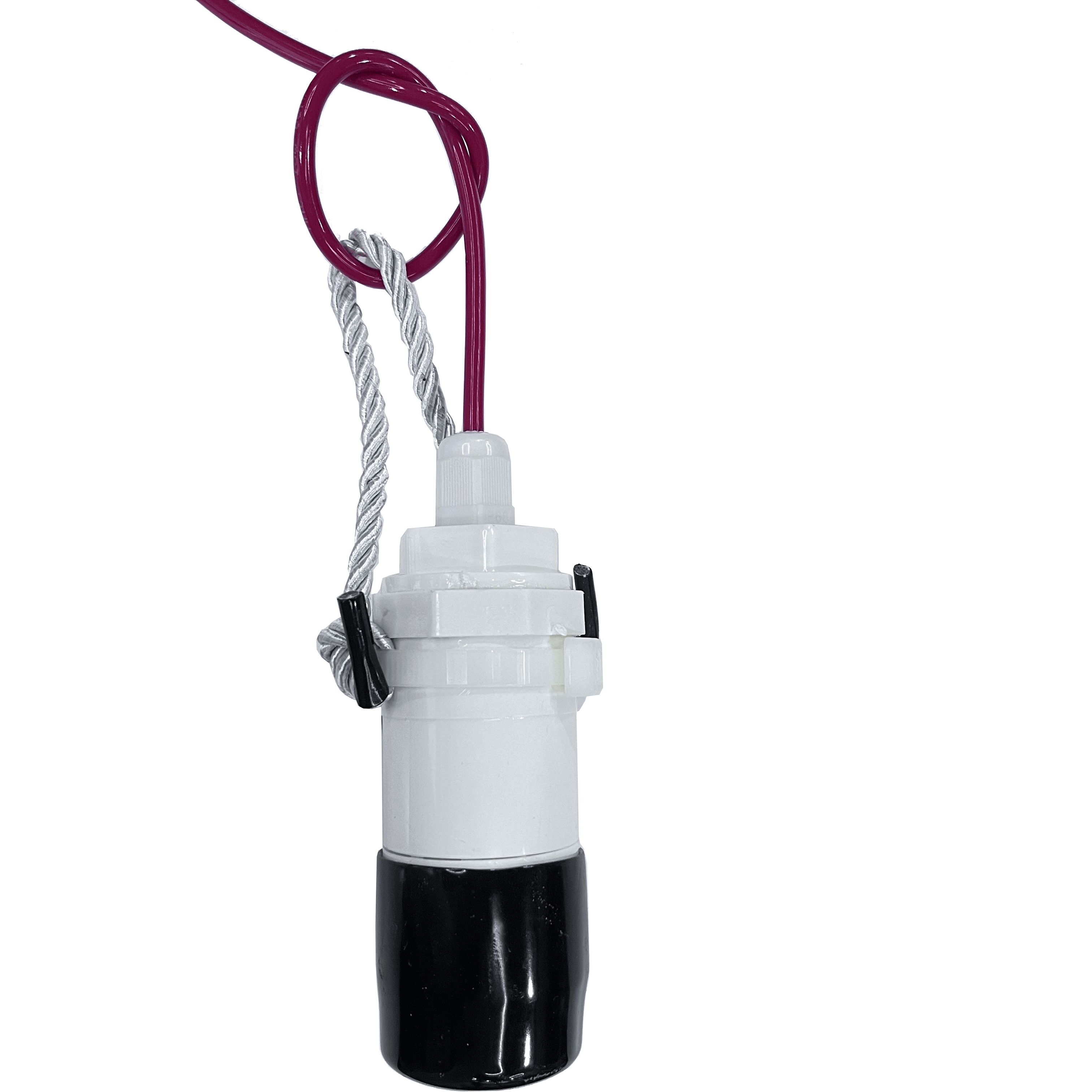

High-density cables for water and wells are specialized signal transmission cables for freshwater and marine electrical exploration. They feature a single-tap structure with waterproof and tensile-resistant design, supporting both freshwater and offshore operational environments. The cables consist of copper cores with TPU outer sheaths and nickel-plated beryllium bronze taps, offering waterproofing and tensile resistance. The maximum transmission voltage is 800V, and the maximum transmission current is 2.5A. Available in various 30/60-tap specifications with 5m/10m spacing options, these cables are suitable for electrical survey sections and area measurements in water bodies. Single-tap cables utilize a single-tap structure, with each tap connected to the electrode through an independent channel. The design is simple and easy to maintain, making it the mainstream configuration for high-density electrical exploration.

- Specifications: 30/60 taps, 5m/10m spacing, maximum 800V/2.5A

- Protection rating: IP68

Order Info

Material Code	Model	Name	Material	Connector	Length	Max. Transmit Voltage	Max. Transmit Current	Number of Taps	Application Scenario	Tensile Load	Default Spacing	Tap Material
M1.2016	CF30-5	Single 30-tap Freshwater Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	160m	800V	2.5A	30	Freshwater Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2017	CF30-5B	Single 30-tap Freshwater Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	30	Freshwater Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2018	CF60-5	Single 60-tap Freshwater Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	60	Freshwater Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2019	CD30-5	Single 30-tap Borehole Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	160m	800V	2.5A	30	Borehole Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2020	CD30-5B	Single 30-tap Borehole Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	30	Borehole Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2021	CD60-5	Single 60-tap Borehole Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	60	Borehole Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2022	CM30-5	Single 30-tap Marine Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	160m	800V	2.5A	30	Marine Survey	500kg	5m	Tantalum-plated Titanium
M1.2023	CM30-5B	Single 30-tap Marine Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	30	Marine Survey	500kg	5m	Tantalum-plated Titanium
M1.2024	CM60-5	Single 60-tap Marine Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	60	Marine Survey	500kg	5m	Tantalum-plated Titanium
X	Customized	Custom Survey Line	Copper Conductor + TPU Outer Jacket	Single-tap	X	800V	2.5A	—	—	—	—	—

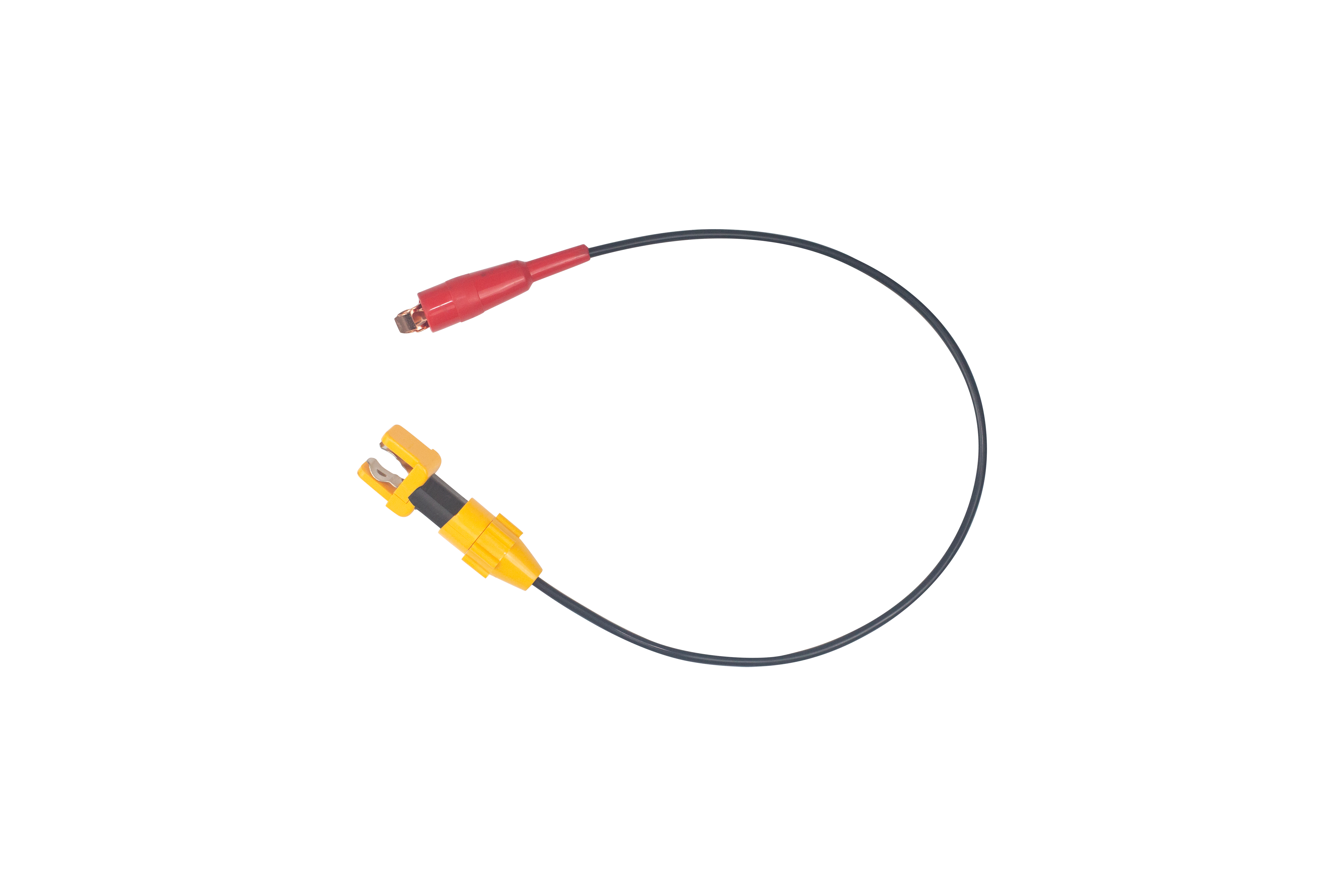

Ordinary cables are high-density electrical and electrical exploration connection and transmission cables, with a tapless structure, mainly used for direct signal connection between devices, remote transmission of AB electrodes, and online monitoring. Copper core TPU outer sheath material, flexible and tensile, maximum transmit voltage 800V, maximum transmit current 2A, compatible with the full series of electrical instruments from first to third generation. Ordinary cables are further divided by application into four categories: AB wire, HDPE one-dimensional wire (online monitoring), one-dimensional wire, and straight-through wire.

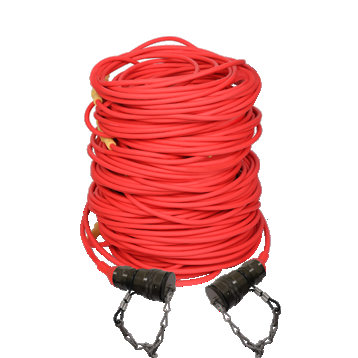

The HDPE one-dimensional cable is a dedicated signal cable for long-term online geoelectrical monitoring scenarios. It features an HDPE high-density polyethylene outer sheath, offering weather resistance and aging protection, making it suitable for long-term outdoor fixed installation. With a copper core and TPU outer sheath, it supports a maximum transmission voltage of 1500V and a maximum transmission current of 16A. Available in lengths of 250m, 500m, and 1000m, it is compatible with long-term online monitoring and time-lapse geoelectrical observations.

- Specifications: 250m/500m/1000m, maximum 1500V/16A

- Protection Rating: IP66

Order Info

Material Code	Model	Name	Specification	Length	Max. Transmit Voltage	Max. Transmit Current	Application Scenario
M1.3010	HDPE-1000	HDPE-1000 1D Cable	0.15*51, Dia. 2.2 mm	1000m	1500V	16A	1D Survey
M1.3011	HDPE-500	HDPE-500 1D Cable	0.15*51, Dia. 2.2 mm	500m	1500V	16A	1D Survey
M1.3012	HDPE-250	HDPE-250 1D Cable	0.15*51, Dia. 2.2 mm	250m	1500V	16A	1D Survey

A direct line is a connection cable used for direct signal linking between devices in high-density electrical systems. It features a non-tap structure and is available in multiple specifications of 14, 19, or 30 cores, suitable for various special scenarios. It has a copper core with a TPU outer sheath; standard lengths of 2 meters up to 700 meters for long-distance transmission are available, offering a clear structure and convenient wiring.

- Specifications: 3~32 cores, 2m~700m

- Protection Level: IP66

Order Info

Material Code	Model	Name	Application	Length	Application Scenario
M1.3001	ZTX-14	14-core Straight-through Cable	Straight-through Connection of Equipment or Cables	Customizable	Combined Water–Land Surveys, Special Scenarios
M1.3002	ZTX-19	19-core Straight-through Cable	Straight-through Connection of Equipment or Cables	Customizable	Combined Water–Land Surveys, Special Scenarios
M1.3003	ZTX-30	30-core Straight-through Cable	Straight-through Connection of Equipment or Cables	Customizable	Combined Water–Land Surveys, Special Scenarios

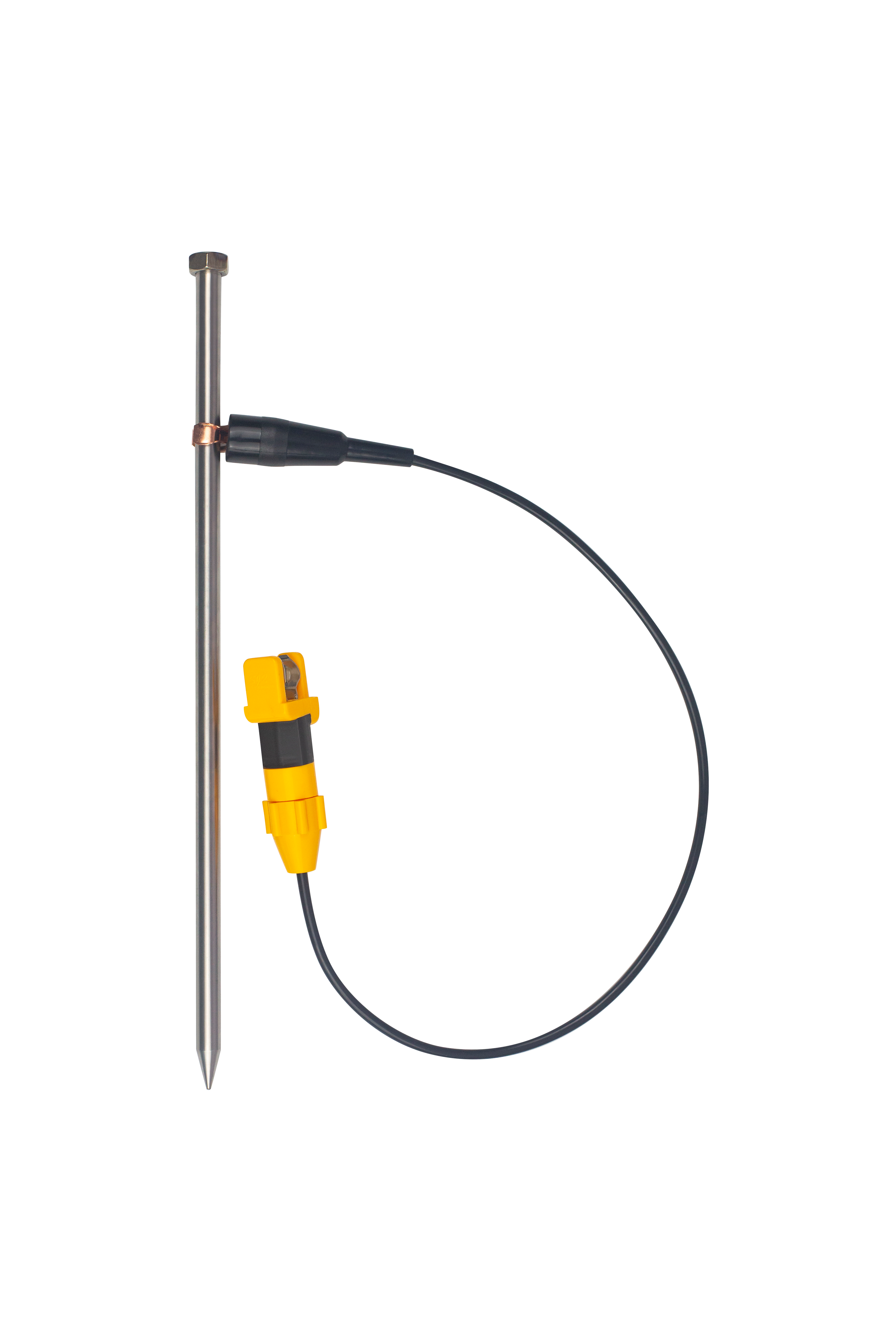

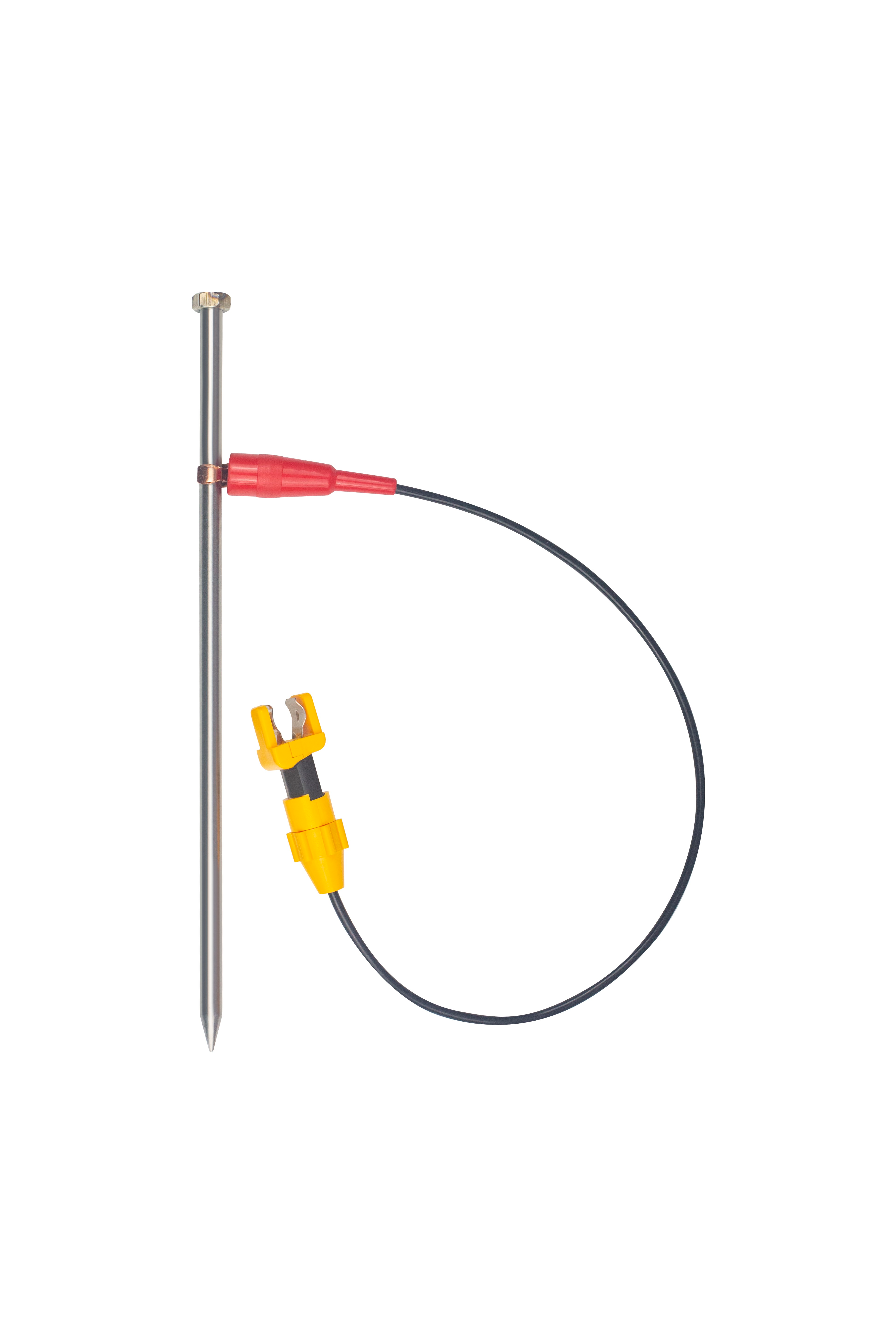

Traditional electrodes are emitter accessories for high-density electrical prospecting, which inject current into the ground through taps connected to cables to establish an artificial electric field. The 316L stainless steel housing is robust and corrosion-resistant, suitable for corrosive soils and shallow water environments; the probe, with its sharp tip, penetrates the soil to provide low contact resistance and is resistant to oxidation and deformation; the maintenance-free design ensures stable and reliable long-term field operation.

- Specifications: Length 52 cm, Outer diameter 38 mm

- Core count: 2 cores

- Protection rating: IP68 (land/shallow water/corrosive soil)

Material Code	Model	Name	Material	Specification	Application Scenario

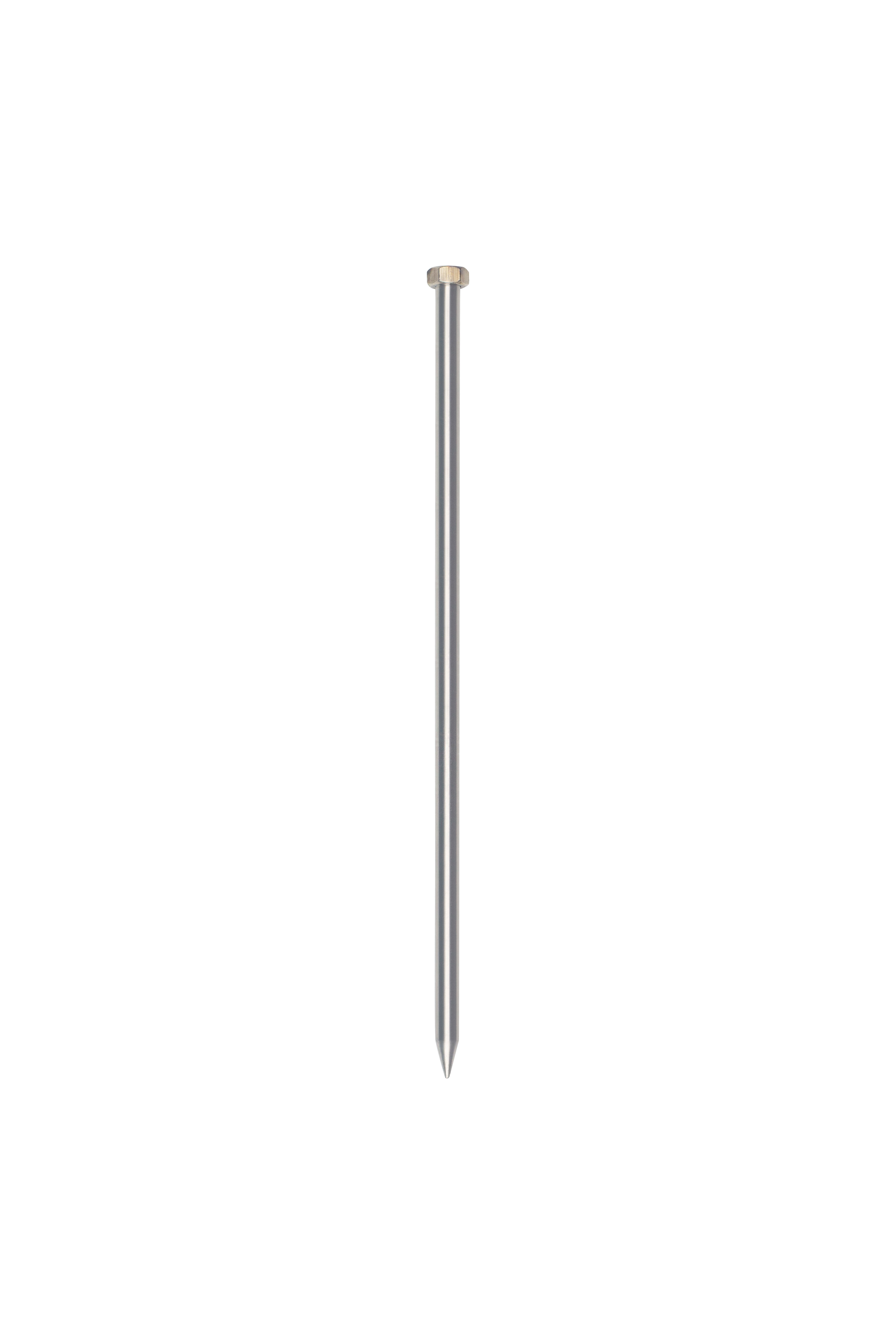

M4.3002	SE-40	Stainless Steel Electrode	Stainless Steel	12×400 mm	Resistivity – (Transmit, Receive)
M4.3005	CE-40	Pure Copper Electrode	Brass	5×300 mm	Resistivity – (Transmit, Receive)
M4.3006	PE-1	Plate Electrode	Stainless Steel	100×100×5 mm	Hardened Concrete Pavement
M4.3013	GE-40	Galvanized Iron Electrode	Galvanized Iron	12×400 mm	Buried Installation for Long-term Monitoring
M4.3009	GE-1	Graphite Electrode	Graphite	150×15 mm	Buried Installation for Long-term Monitoring
M4.3011	SE-1	Disc Electrode	Stainless Steel	100×10 mm	Buried Installation for Long-term Monitoring
M4.3001	NP-1	Non-polarizing Electrode	Lead Chloride	75×100 mm	Induced Polarization (IP) Reception

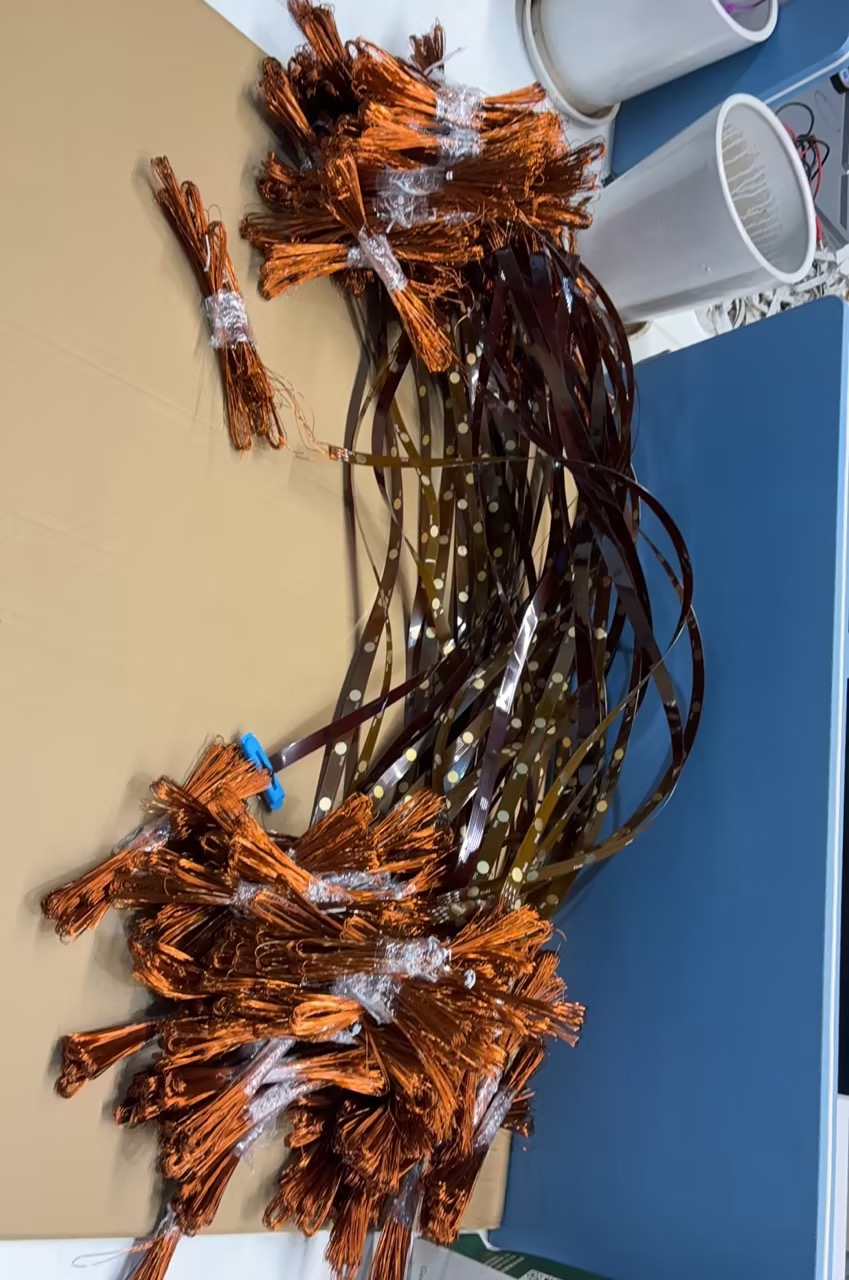

Flexible electrodes are adhesive-type electrode accessories designed for complex curved surfaces and the inner walls of pipelines. They transmit electric field signals from irregular surfaces to the acquisition system through leads welded to cables. The conductive silicone and copper mesh structure can bend freely to fit various shapes; the 4-core redundant design enhances signal acquisition stability; IP67 protection suits humid and shallow water environments; and the maintenance-free design ensures long-term, reliable operation in field conditions.

- Specifications: Length 30 cm, Width 5 cm

- Number of cores: 4

- Protection rating: IP67 (for complex curved surfaces/pipeline inner walls)

Material Code	Model	Name	Specification	Application Scenario
M4.3019	FPC-1	FPC Flexible Patch Electrode	Custom	Scientific Research
M4.3020	SIP-1	SIP Flexible Patch Electrode	Custom	Scientific Research

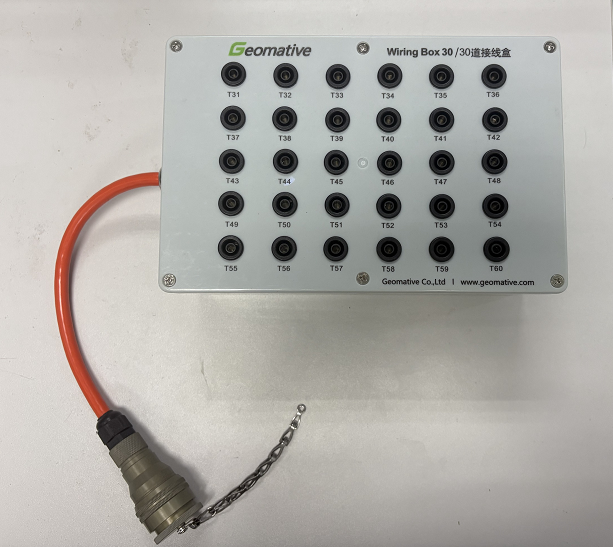

The junction box is the core unit in high-density electrical systems for centralized multi-channel electrode access and signal switching, supporting 10-channel and 30-channel electrode access, enabling signal distribution and switching between the host and cables. ABS engineering plastic casing paired with metal terminals has an IP65 protection rating; The matching F-type waterproof box provides additional IP67 protection, suitable for harsh outdoor environments. The junction box supports the full range of electrical instruments from the first to the third generation GD-10/GD-20, featuring clear structure, convenient wiring, and reliable protection.

- Specifications: 10-channel/30-channel, 201×168×300mm

- Protection rating: IP65 (junction box)

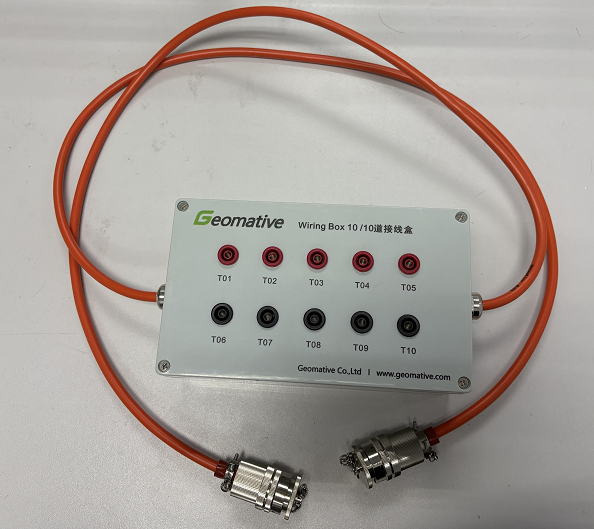

WB-10

WB-30

Material Code	Model	Name	Material	Dimensions (L×W×H)	IP Rating	Rated Voltage	Rated Current	Application Scenario	Connection	Compatible Equipment
M1.1005	WB-10	10-channel Junction Box	ABS Engineering Plastic + Metal Terminals	201×168×300 mm	IP65	250V	3A	Adapter for 10-electrode Connection	Aviation Connector + Terminal Block	Compatible with All Versions
M1.1006	WB-30	30-channel Junction Box	ABS Engineering Plastic + Metal Terminals	230×150×85 mm	IP65	250V	3A	Adapter for 30-electrode Connection	Aviation Connector + Terminal Block	Compatible with All Versions

The conversion box is a connection unit used in high-density electrical systems for multi-channel signal distribution and conversion. It supports 10-channel/30-channel signal distribution, enabling channel expansion between the host and the cables. The ABS engineering plastic housing paired with metal terminals provides an IP65 protection rating. With aviation plug and terminal design, wiring is convenient, the structure is clear, connections are easy, and protection is reliable.

- Specifications: 10-channel/30-channel

- Protection Level: IP65

WB-10

WB-30

Material Code	Model	Name	Category	Material	Dimensions (L×W×H)	Channels / Cores	IP Rating	Rated Voltage	Rated Current	Application Scenario	Connection	Compatible Equipment	Service Life
M1.1003	GD20-TXH-5	5-channel Switch Box	Switch Box	ABS Engineering Plastic + Metal Terminals	Customizable	5 Channels	IP65	250V	3A	5-channel Signal Distribution	Aviation Connector + Terminal Block	2nd-generation GD-20	≥ 5 Years
M1.1004	GD20-TXH-12	12-channel Switch Box	Switch Box	ABS Engineering Plastic + Metal Terminals	Customizable	12 Channels	IP65	250V	3A	12-channel Signal Distribution	Aviation Connector + Terminal Block	2nd-generation GD-20	≥ 5 Years

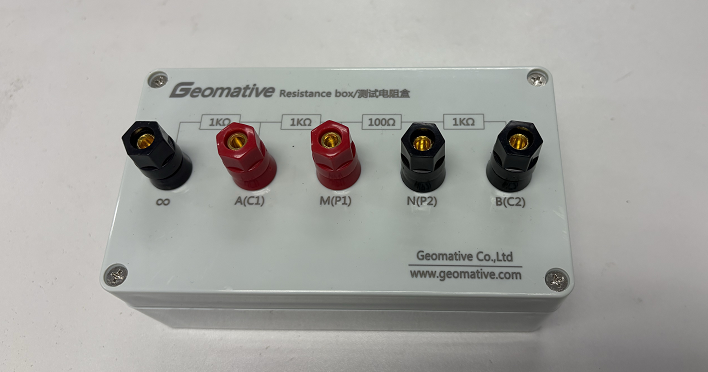

The resistance box is an auxiliary unit in high-density electrical systems used for electrode grounding resistance compensation. Through a precision resistance network, it compensates and matches electrode grounding resistance, improving signal acquisition quality. Metal casing with precision resistor network structure, 4-channel design, protection rating IP65; Paired with an F-type waterproof box, providing IP67 protection. The resistance box supports all versions of electrical method instruments, with clear structure, convenient wiring, and reliable protection.

- Specifications: 4 channels, 158×90×60mm

- Protection rating: IP65

RB-4

Material Code	Model	Name	Material	Dimensions (L×W×H)	IP Rating	Application Scenario	Connection	Compatible Equipment
M1.1007	RB-4	Resistor Box	Metal Housing + Precision Resistor Network	158×90×60 mm	IP65	Electrode Grounding Resistance Compensation	Terminal Block	Compatible with All Versions

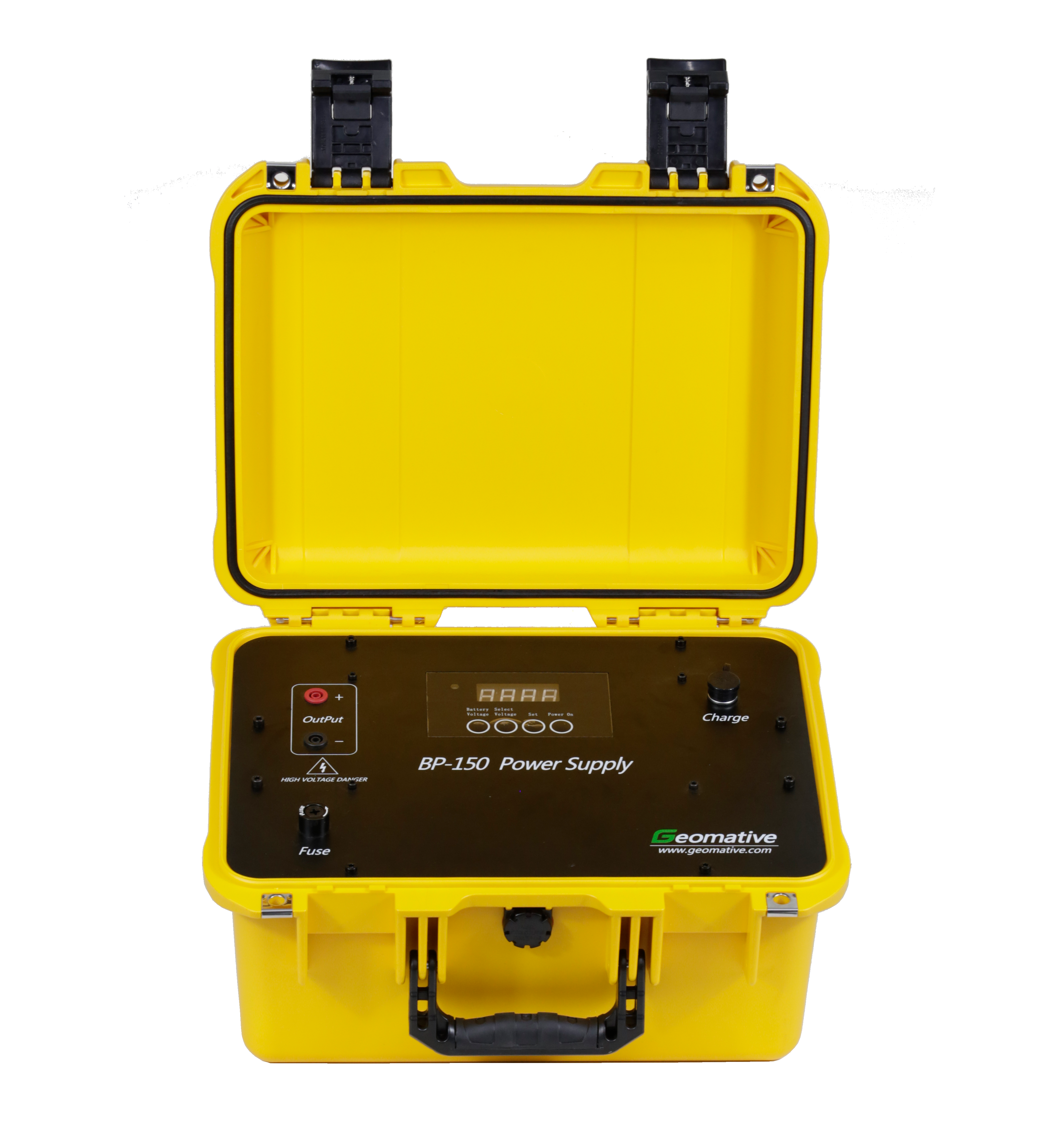

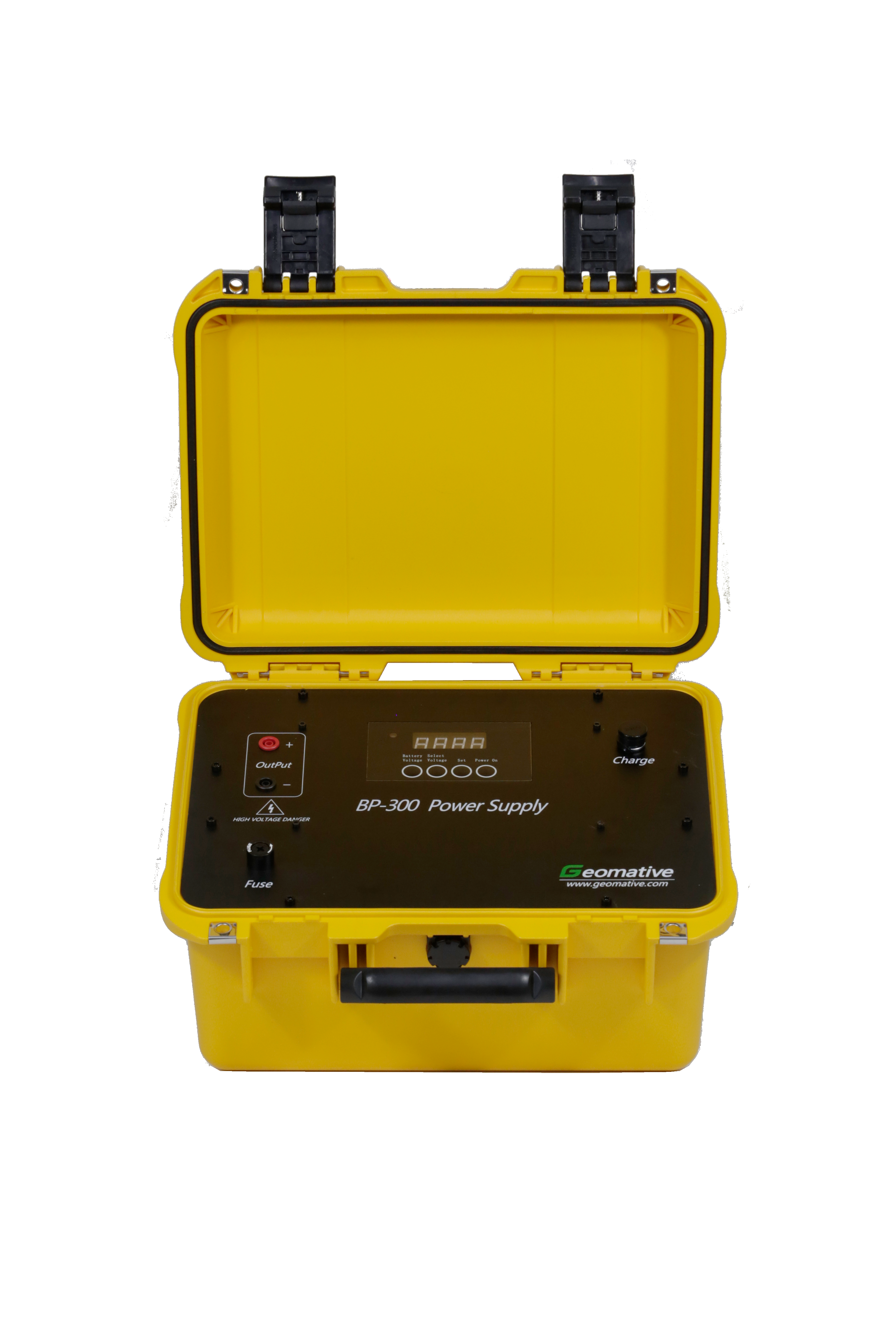

Battery (lithium battery) is a portable rechargeable source compatible with high-density electrical methods, induced current, and online monitoring systems, with built-in large-capacity lithium batteries supporting 150V/300V DC output. 110V~240V AC charging, GE plastic enclosure, protection rating IP67; BP-150 outputs 150V/3A, BP-300 outputs 300V/3A, weighing only 7.5~8kg, portable and easy to use, suitable for short- and medium-term field exploration operations.

- Specifications: 150V/300V, 3A output, GE plastic housing

- Protection rating: IP67

Material Code	Model	Name	Max. Output Voltage	Max. Output Current	Charging Voltage	Output Mode	Operating Temperature	Storage Temperature	Weight	Dimensions	Housing Material	Fuse Specification	Category

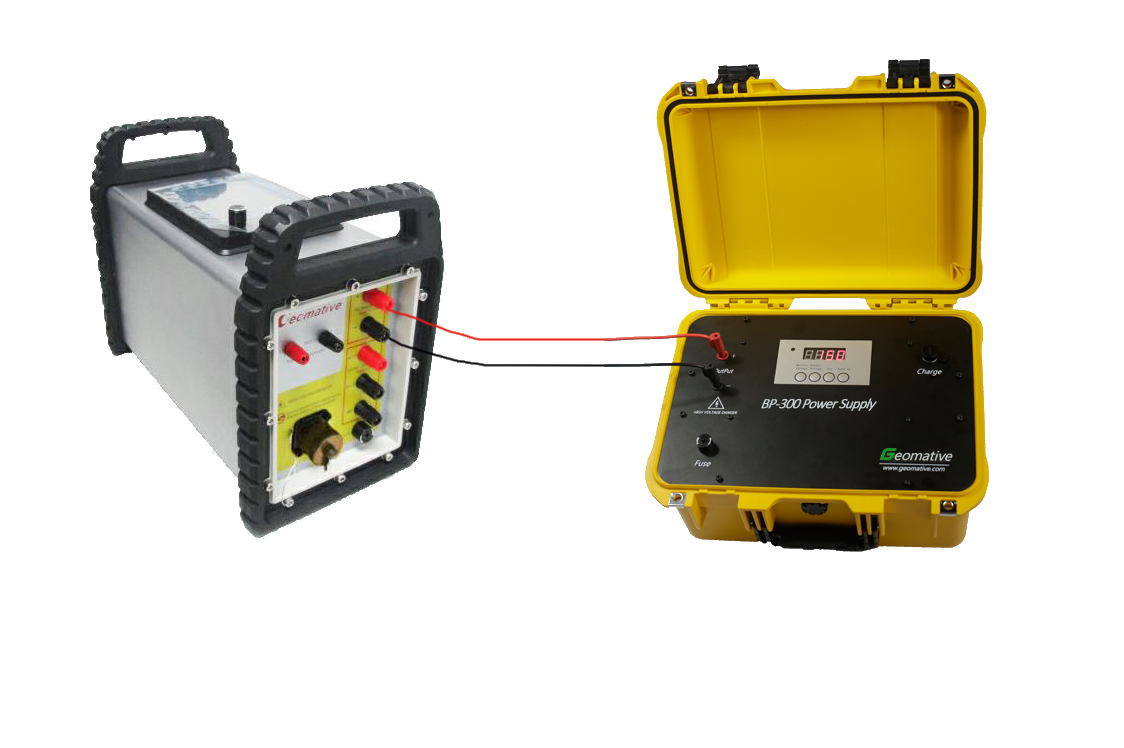

M0.5001	BP-150	150 V DC Step-up Power Supply	150V	3A	110V~240V AC	DC Output	-10 ℃/+50℃	-20℃/+60℃	7.5 kg	L377×W299×H195 mm	GE Plastic	5.2×20 mm	Lithium Battery
M0.5003	BP-300	300 V DC Step-up Power Supply	300V	3A	110V~240V AC	DC Output	-10 ℃/+50℃	-20℃/+60℃	8 kg	L377×W299×H195 mm	GE Plastic	6 A, 5.2×20 mm	Lithium Battery

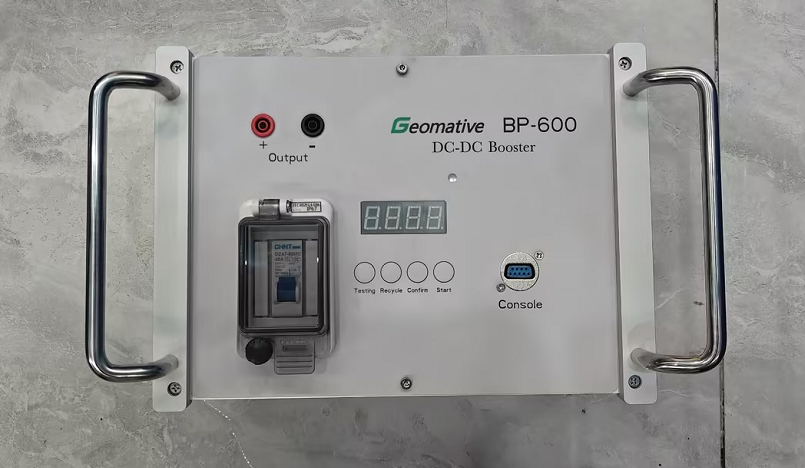

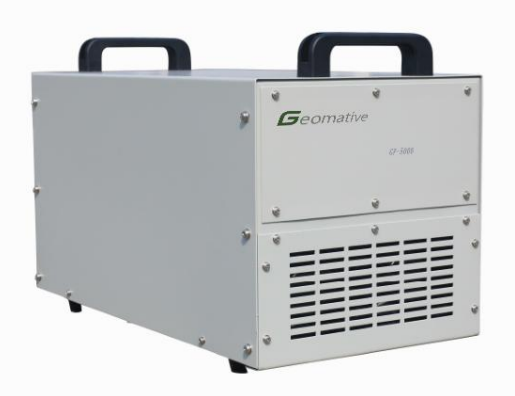

DC Power Booster is a DC voltage enhancement unit designed to support high-density electrical exploration. It does not contain a built-in battery and achieves DC voltage boosting through an external 12–48V DC or 220V AC input. The BP-600 supports six selectable voltage levels: 100/200/300/400/500/600V, with an efficiency greater than 90%, suitable for extreme cold down to -40°C. The BP-1000 features an adjustable output ranging from 0 to 1000V, making it suitable for high-power electric exploration scenarios.

- Specifications: 600V six selectable levels / 1000V adjustable, efficiency >90%

- Protection rating: IP65

BP-600

BP-1000

Material Code	Model	Name	Input Voltage Range	Max. Input Current	Efficiency	Max. Output Current	Output Voltage Settings	Operating Temperature	Operating Humidity	Storage Temperature	Storage Humidity
M0.5005	BP-600	600 V DC Step-up Power Supply	12~48V DC	35A	>90%	0.5A	100/200/300/400/500/600 V Selectable	-40℃~+45℃	<95%	-50℃~+70℃	<95%
M0.5006	BP-1000	1000 V DC Step-up Power Supply	220V±10% AC	-	>90%	5	0~1000 V Adjustable	-10℃- 50 ℃	<95%	-20℃- 60 ℃	≤95%

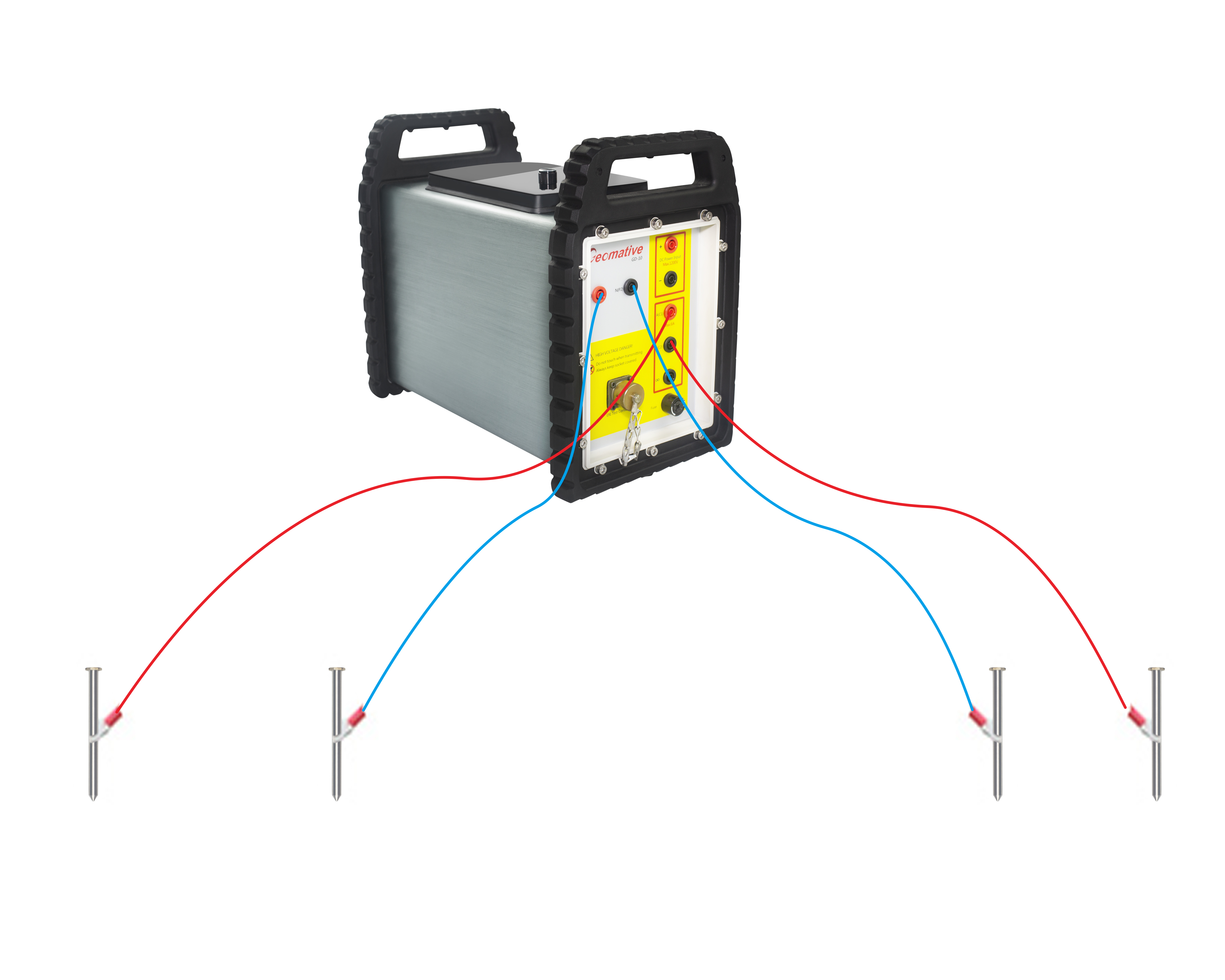

Construction Wiring

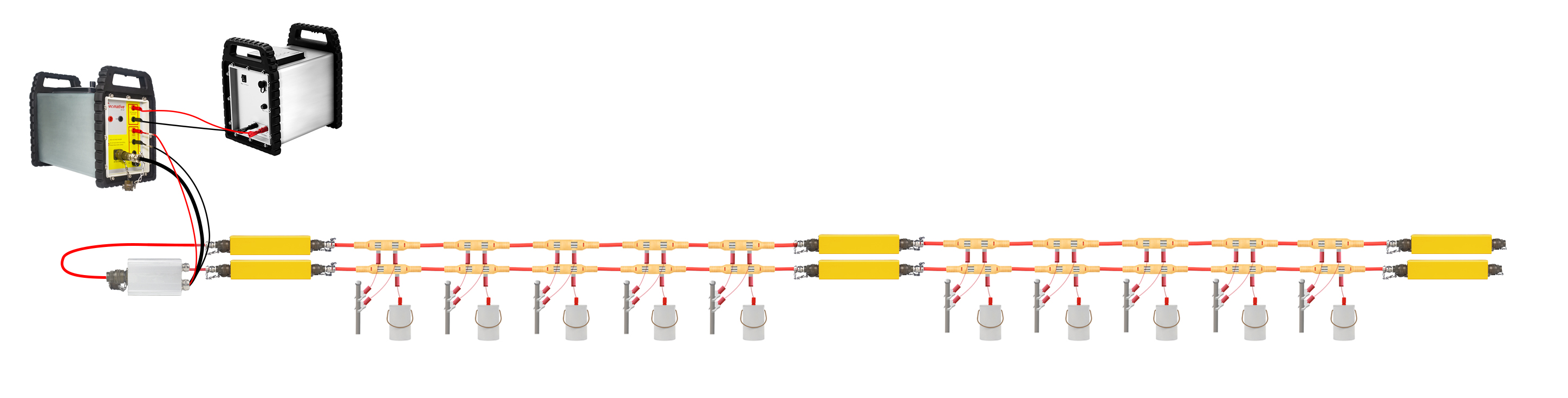

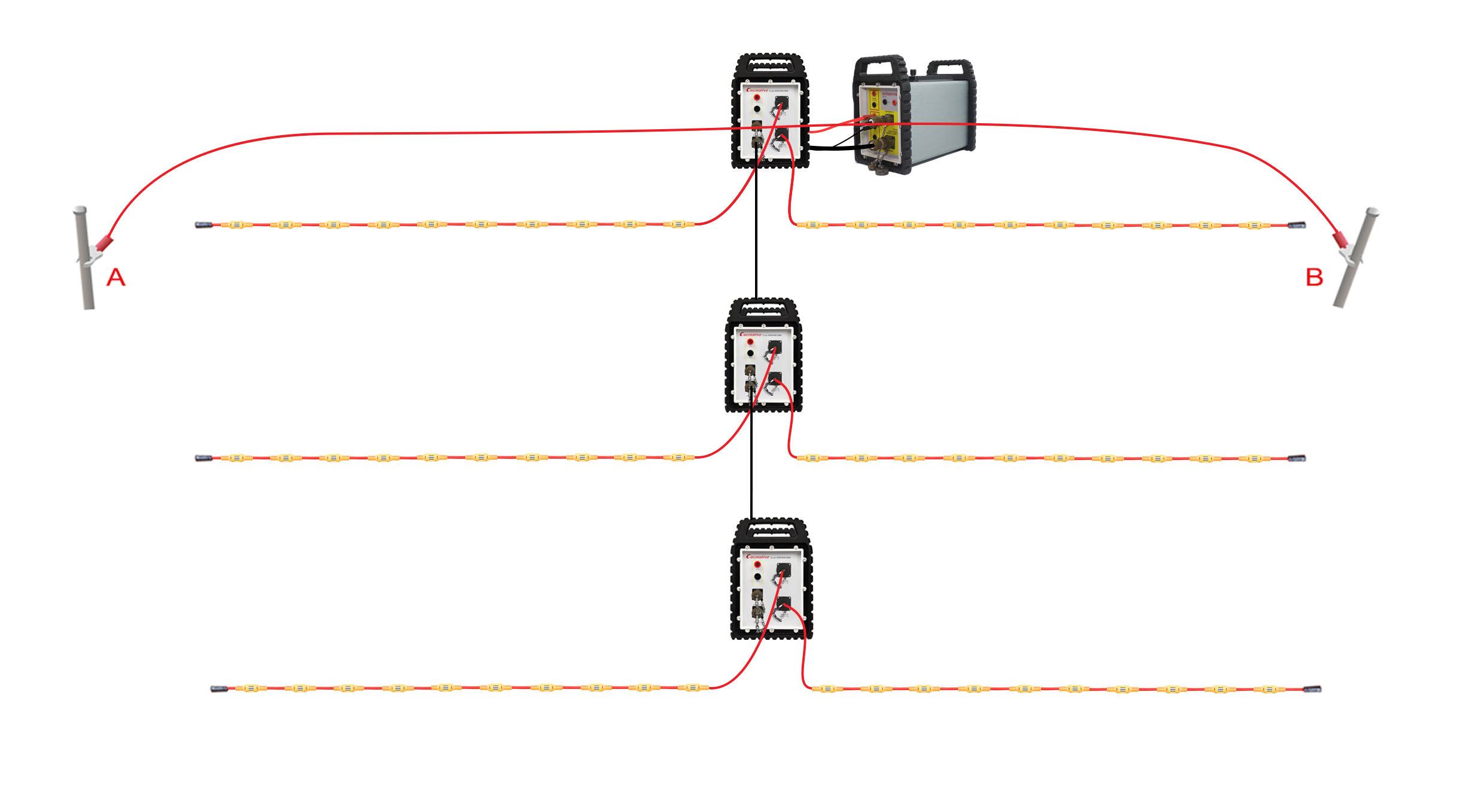

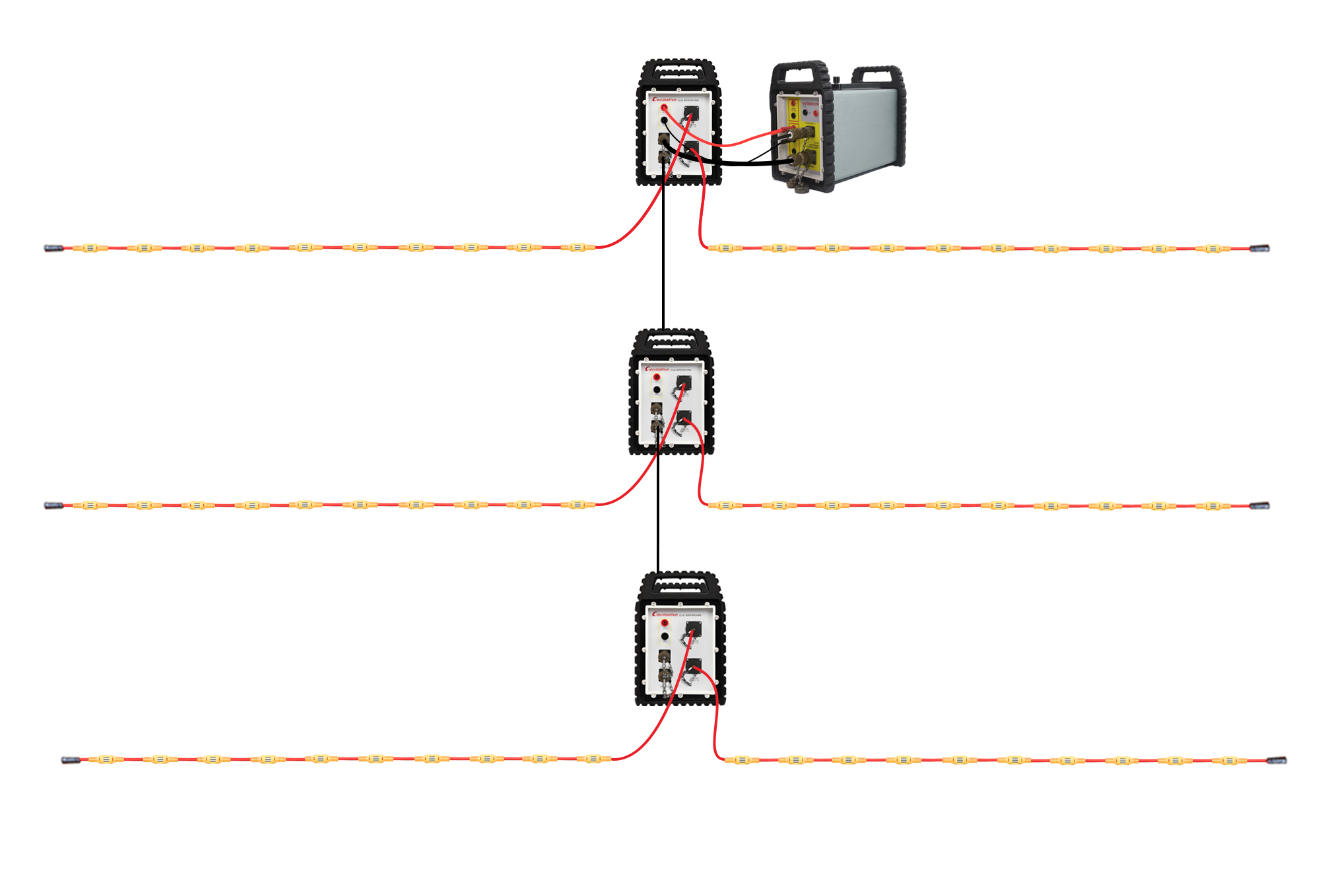

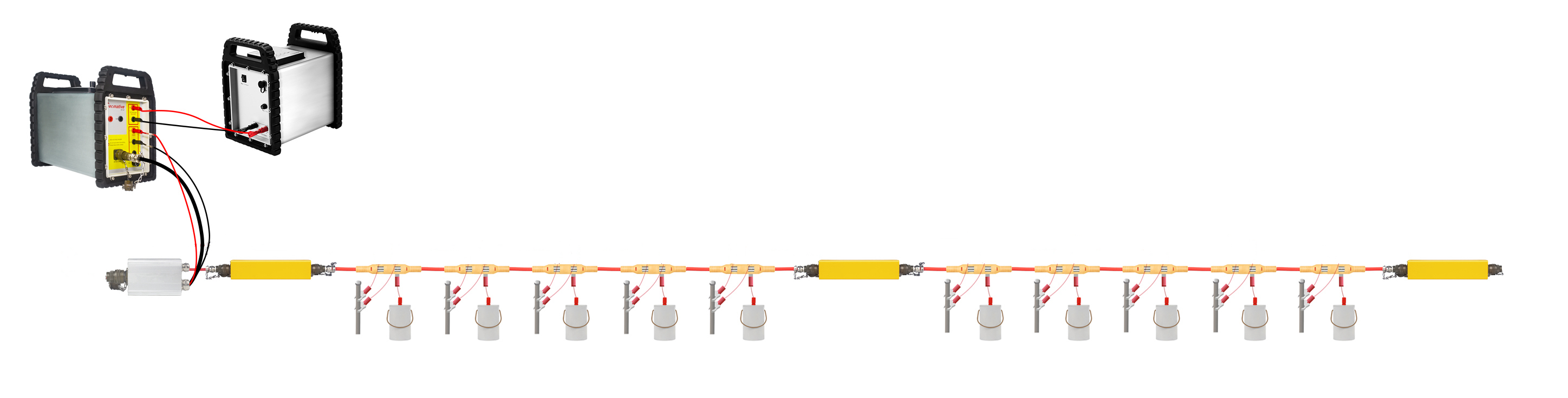

One-dimensional depth measurement, with wiring that can simultaneously set up 24 electrodes and test 12 points at the same time.

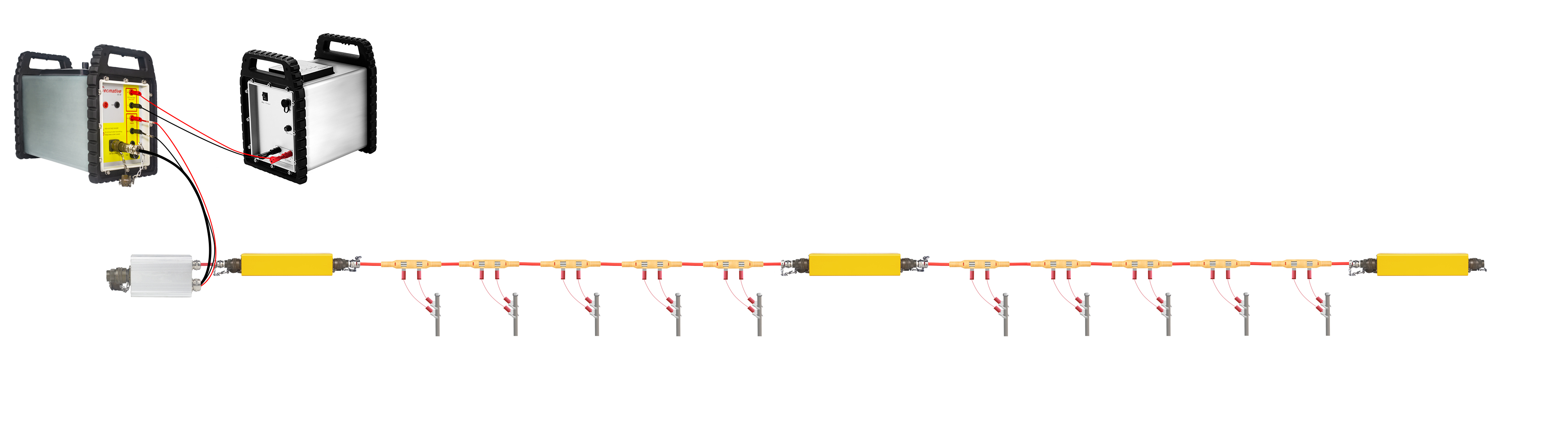

Features 1: Uses a segmented centralized design, switching electrodes during high-density measurements with the SR-10/SR-20 bidirectional smart cable heads.

Features 2: Sections can be connected endlessly, meeting the needs for deep profiling and high-density 3D exploration.

Features 3: Equipped with dual distributed high-density cable interfaces, so cross-hole measurements no longer require a transition switch controller.

Main Unit: GD-10/20, Advance/Supreme

Switching Device: SR-10/20 bidirectional smart cable head

Cable: 12-tap bidirectional high-density cable (CE5/CB10 series), each tap has two separate connectors, controlled from both ends by the cable heads.

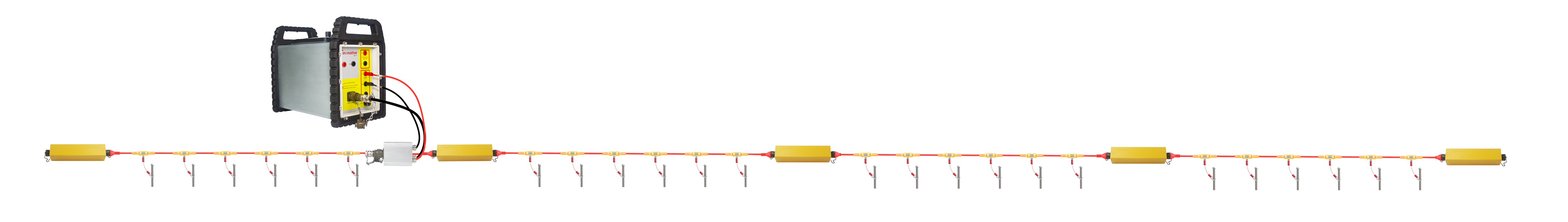

Adopts a segmented centralized design, enabling electrode switching through SR-10/SR-20 bidirectional intelligent cable heads, with sections that can be connected indefinitely.

Feature 1: Sections can be connected indefinitely, meeting the requirements of deep profiling and 3D high-density exploration.

Feature 2: Equipped with dual distributed high-density cable interfaces, eliminating the need for a transition switch controller for cross-hole measurements.

Main Unit: GD-10/20, Advance/Supreme

Switching Device: SR-10/20 bidirectional intelligent cable heads

Cable: 12-tap bidirectional high-density cable (CE5/CB10 series), each tap has two independent connectors, controlled from both ends by the cable heads.

The intermediate gradient method is used for measurement, with power electrodes A and B fixedly arranged at both ends of the survey line, and intermediate measurement electrodes distributed along the measurement line.
Feature 1: Suitable for large-area rapid surface sweeping and detection of steep, low-resistance bodies.
Feature 2: Can be used with multiple main machines for synchronized measurement, improving operational efficiency
Main unit: GD-10/20 Supreme/Advanced
Switching device: SR-10/20 bidirectional intelligent cable head
Cable: twelve-tap bidirectional high-density cable.

Using a single-tap cable, induced current measurement is achieved through a dual-circuit method; stainless steel electrodes are emitted, and non-polarized electrodes are received.
Feature 1: The stainless steel electrode is connected to P1 as the transmitting electrode.
Feature 2: Non-polarizing electrode for reception, enabling combined measurement of resistivity and induced electricity.
Console: GD-10/20 Supreme 2D+/3D+
Switching device: patch box + SR-10/20 cable head
Cable: Double-tapped high-density cable.

Uses double-tapped cables arranged in a single-loop configuration, with two taps connected respectively to ordinary and non-polarized electrodes.
Feature 1: Two taps connect to a standard electrode and a non-polarized electrode respectively.
Feature 2: Controlled separately by cable ends at both ends, achieving synchronous measurement of resistivity and induced excitation.
Console: GD-10/20 Supreme 2D+/3D+
Switching device: SR-10/20 bidirectional intelligent cable head
Cable: Double-tapped high-density cable (CE5 series).

Waterproof cables are floated on the water surface using floats, while the main unit is placed on the ship or surface to study the underwater geoelectric structure.
Feature 1: Conducts various arrangement measurements to study the underwater geoelectric structure.
Feature 2: For longer cross-sections, rolling testing can be used, with GPS assistance for positioning.
Main unit: GD-10/20 (with waterproof cable)
Switching device: SR-10/20 waterproof cable head
Cable: Waterproof, high-density cable.

Continuous high-density measurements are conducted on the water surface, suitable for continuous profile exploration of rivers, lakes, reservoirs, and other water bodies.
Feature 1: Suitable for continuous profile exploration of rivers, lakes, reservoirs, and other water bodies.
Feature 2: Obtains information on the underground underground earth electrical cross-section.
Main unit: GD-10/20 (with waterproof cable)
Switching device: SR-10/20 waterproof cable head
Cable: Waterproof, high-density cable.

Electrodes are placed in the same or different boreholes, connected to the ground via multi-core cables to collect signals, bringing the detection point closer to the target.
Feature 1: The detection point is closer to the exploration target, resulting in higher signal fidelity and more accurate data.
Feature 2: The specially designed cable does not require cable ends for finishing, with a spacing of 1 meter, and uses a specially designed cross-hole script.
Main unit: GD-10/20 Supreme/Advanced
Switching device: Specially designed cable head + transition switch
Cable: Distributed cable in the well (CD30 series), spacing 1 meter.

Connect to a 1D testing environment in the laboratory, create 1D induced current testing tasks, and conduct instrument operation training and teaching demonstrations.
Feature 1: Create one-dimensional induced current test tasks to conduct instrument operation training and teaching demonstrations.
Feature 2: Can measure parameters such as current, voltage, apparent resistivity, and polarization.
Main unit: GD-10/20
Switching device: jumper box
Cable: Standard multi-core cable + stainless steel electrodes/non-polarized electrodes.

GD-10 Electrical Resistivity & IP Imaging System

Product Overview

Functions

Measurement Parameters

Product Catalog

Ordering Information

GD-10 Junior

GD-10 Senior

GD-10 Advance 2D

GD-10 Supreme 2D

GD-10 Supreme+ 2D+

GD-10 Supreme 3D

GD-10 Supreme+ 3D+

Deep Dive

Multidimensional results show

2D/3D scrolling function

Rich and diverse connection methods

Electrode settings for multiple scenarios

Rich programmable scripts and data processing

DIGspace

Processing capabilities of raw data: Waveform viewing, automatic removal of bad points upon recalculation Conversion from two-dimensional to one-dimensional Device integration Online inversion

Platform Capabilities: Project and Data Management Real-time 3D Visualization Online Inversion

Gain a deeper understanding of the DIG Space Geophysical Digital Platform...
Register a DIG Space account to receive 50 GeoCoins and embark on your DIG Space exploration journey...

Application Case

Brazil Gold Ore Exploration Case

Tailings Pond Bottom Real‑Time Online Monitoring System Case

Cross‑hole High‑density Electrical Imaging Case of Anti‑seepage Wall

Groundwater Investigation for Leachate Treatment Plant

Foundation Depth Survey Case of Beijing Five‑Pagoda Temple

Landfill Leakage Investigation

Key Features

It can be externally powered up to 1500V/6A (9000W), and has strong capabilities for deep exploration.

Self-powered SP compensation of 10V, superior suppression of power frequency noise by more than 120dB, clear weak signals, and more reliable high resistance / deep data.

Real-time display of multi-dimensional data (profiles / sections / waveforms), on-site quality control can be performed immediately, and unqualified measurement points can be re-measured immediately.

The main unit is portable, the cables are lightweight, and construction in mountainous or complex terrains is stress-free.

Technical Specifications

Parameter	GD-10 Junior	GD-10 Senior	GD-10 Advance 2D	GD-10 Supreme 2D	GD-10 Supreme+ 2D+	GD-10 Supreme 3D	GD-10 Supreme+ 3D+
Max. Transmit Power	7200W	7200 W (Standard) / 9000 W (Optional)	7200 W (Standard) / 9000 W (Optional)	7200 W (Standard) / 9000 W (Optional)	7200 W (Standard) / 9000 W (Optional)	7200 W (Standard) / 9000 W (Optional)	7200 W (Standard) / 9000 W (Optional)
Max. Transmit Voltage	±600V	1200 V (Standard) / 1500 V (Optional)	1200 V (Standard) / 1500 V (Optional)	1200 V (Standard) / 1500 V (Optional)	1200 V (Standard) / 1500 V (Optional)	1200 V (Standard) / 1500 V (Optional)	1200 V (Standard) / 1500 V (Optional)
Max. Transmit Current	±4A	±6A	±6A	±6A	±6A	±6A	±6A
IP Period	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable	0.5/1/2/4/8/16/32/64 s Selectable
Output Waveform	Square Wave	Square Wave	Square Wave	Square Wave	Square Wave	Square Wave	Square Wave
Voltage Measurement Range	±24V	±24V	±24V	±24V	±24V	±24V	±24V
Voltage Accuracy	0.3%±1μV	0.3%±1μV	0.3%±1μV	0.3%±1μV	0.3%±1μV	0.3%±1μV	0.3%±1μV
SP Compensation	±10V (auto)	±10V (auto)	±10V (auto)	±10V (auto)	±10V (auto)	±10V (auto)	±10V (auto)
A/D Conversion Resolution	24-bit	24-bit	24-bit	24-bit	24-bit	24-bit	24-bit
Stacking Cycles	1–255	1–255	1–255	1–255	1–255	1–255	1–255
Storage	≥8GB	≥8GB	≥8GB	≥8GB	≥8GB	≥8GB	≥8GB
Built-in Battery	16.8 V Lithium Battery	16.8 V Lithium Battery	16.8 V Lithium Battery	16.8 V Lithium Battery	16.8 V Lithium Battery	16.8 V Lithium Battery	16.8 V Lithium Battery
Charging Voltage	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)	100~250V (50Hz or 60Hz)
External Power	DC 24V~60V	DC 30V~60V	DC 30V~60V	DC 30V~60V	DC 30V~60V	DC 30V~60V	DC 30V~60V
Operating Temperature	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃	-10℃~+50℃
Storage Temperature	-20°C~+60°C	-20°C~+60°C	-20°C~+60°C	-20°C~+60°C	-20°C~+60°C	-20°C~+60°C	-20°C~+60°C
Dimensions	39×20×29 cm	39×20×29 cm	39×20×29 cm	39×20×29 cm	39×20×29 cm	39×20×29 cm	39×20×29 cm
Weight	7.5 kg	8 kg	8 kg	8 kg	8 kg	8 kg	8 kg
Display	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480	5.7-inch Full-color LCD, 640×480
Interfaces	A/B/M/N/∞, Multi-electrode Cable Socket 1/2, Charger, External Power, USB, RS485	A/B/M/N/∞, Multi-electrode Cable Socket 1/2, Charger, External Power, USB, RS485	A/B/M/N/∞, ERI Test Console, Charger, External Power, USB, RS485	A/B/M/N/∞, ERI Test Console, Charger, External Power, USB, RS485	A/B/M/N/∞, ERI Test Console, Charger, External Power, USB, RS485	A/B/M/N/∞, ERI Test Console, Charger, External Power, USB, RS485	5.7-inch Full-color LCD, 640×480
Self-Potential (SP)	√	√	√	√	√	√	√
1D Resistivity	√	√	√	√	√	√	√
1D IP	—	√	√	√	√	√	√
2D Resistivity	—	—	√	√	√	√	√
2D IP	—	—	—	—	√	—	√
3D Resistivity	—	—	—	—	—	√	√
3D IP	—	—	—	—	—	—	√

Parts and Accessories

- Specifications: Length 215mm, Outer Diameter 50mm

- Number of Cores:

- Protection Rating: IP67

Order Info

Material Code	Model	Name	Material	Weight	Application	Number of Acquisition Channels
M1.0001	SR-10	Smart Bidirectional Cable Head	PC+ABS Housing	0.4kg	Distributed Survey	Single-channel
M1.0006	SR-60	Single-channel Distributed Switch Box	Aluminum Alloy Housing	5kg	Combined Water–Land and Borehole–Surface Surveys	Single-channel

- Specifications: 201x168x300mm

- Protection rating: IP65

Material Code	Model	Name	Material	Weight	Application	Acquisition Channel
M1.0003	CS-60	Centralized Switch Box	Aluminum Alloy Housing	5kg	Surface, Cross-hole, Laboratory	Single-channel

- Specifications: 10~30 taps, 0.5~20m spacing, maximum 800V/2.5A

- Protection rating: IP66

Order Info

Material Code	Model	Name	Material	Specification	Length	Max. Transmit Voltage	Max. Transmit Current	Number of Taps	Application Scenario	Default Spacing
M1.2004	CB10-2	Single 10-tap Cable, 2 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	21m	800V	2.5A	10	Land Survey	2.1m
M1.2006	CB10-5	Single 10-tap Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	51m	800V	2.5A	10	Land Survey	5.1m
M1.2007	CB10-10	Single 10-tap Cable, 10 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	102m	800V	2.5A	10	Land Survey	10.2m
M1.2008	CB10-15	Single 10-tap Cable, 15 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	152m	800V	2.5A	10	Land Survey	15.2m
X	CB10-X (Custom)	Customized	Copper Conductor + TPU Outer Jacket	Single-tap	X	800V	2.5A	10	Land Survey	X
M1.2001	CE5-5	Dual 5-tap Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Dual-tap	25.5m	800V	2.5A	5	Land Survey	5.1m
M1.2002	CE5-10	Dual 5-tap Cable, 10 m Spacing	Copper Conductor + TPU Outer Jacket	Dual-tap	51m	800V	2.5A	5	Land Survey	10.2m
X	CE5-X	Customized	Copper Conductor + TPU Outer Jacket	Dual-tap	X	800V	2.5A	5	Land Survey	X
M1.2014	CB30-5	Single 30-tap Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	151m	800V	2.5A	30	Land Survey	5.1m
M1.2010	CB15-5	Single 15-tap Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	76.5m	800V	2.5A	15	Land Survey	5.1m
M1.2011	CB15-10	Single 15-tap Cable, 10 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	153m	800V	2.5A	—	—	—

- Specifications: 30/60 taps, 5m/10m spacing, maximum 800V/2.5A

- Protection rating: IP68

Order Info

Material Code	Model	Name	Material	Connector	Length	Max. Transmit Voltage	Max. Transmit Current	Number of Taps	Application Scenario	Tensile Load	Default Spacing	Tap Material
M1.2016	CF30-5	Single 30-tap Freshwater Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	160m	800V	2.5A	30	Freshwater Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2017	CF30-5B	Single 30-tap Freshwater Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	30	Freshwater Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2018	CF60-5	Single 60-tap Freshwater Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	60	Freshwater Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2019	CD30-5	Single 30-tap Borehole Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	160m	800V	2.5A	30	Borehole Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2020	CD30-5B	Single 30-tap Borehole Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	30	Borehole Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2021	CD60-5	Single 60-tap Borehole Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	60	Borehole Survey	120kg	5m	Nickel-plated Beryllium Copper
M1.2022	CM30-5	Single 30-tap Marine Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	160m	800V	2.5A	30	Marine Survey	500kg	5m	Tantalum-plated Titanium
M1.2023	CM30-5B	Single 30-tap Marine Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	30	Marine Survey	500kg	5m	Tantalum-plated Titanium
M1.2024	CM60-5	Single 60-tap Marine Cable, 5 m Spacing	Copper Conductor + TPU Outer Jacket	Single-tap	320m	800V	2.5A	60	Marine Survey	500kg	5m	Tantalum-plated Titanium
X	Customized	Custom Survey Line	Copper Conductor + TPU Outer Jacket	Single-tap	X	800V	2.5A	—	—	—	—	—

- Specifications: 250m/500m/1000m, maximum 1500V/16A

- Protection Rating: IP66

Order Info

Material Code	Model	Name	Specification	Length	Max. Transmit Voltage	Max. Transmit Current	Application Scenario
M1.3010	HDPE-1000	HDPE-1000 1D Cable	0.15*51, Dia. 2.2 mm	1000m	1500V	16A	1D Survey
M1.3011	HDPE-500	HDPE-500 1D Cable	0.15*51, Dia. 2.2 mm	500m	1500V	16A	1D Survey
M1.3012	HDPE-250	HDPE-250 1D Cable	0.15*51, Dia. 2.2 mm	250m	1500V	16A	1D Survey

- Specifications: 3~32 cores, 2m~700m

- Protection Level: IP66

Order Info

Material Code	Model	Name	Application	Length	Application Scenario
M1.3001	ZTX-14	14-core Straight-through Cable	Straight-through Connection of Equipment or Cables	Customizable	Combined Water–Land Surveys, Special Scenarios
M1.3002	ZTX-19	19-core Straight-through Cable	Straight-through Connection of Equipment or Cables	Customizable	Combined Water–Land Surveys, Special Scenarios
M1.3003	ZTX-30	30-core Straight-through Cable	Straight-through Connection of Equipment or Cables	Customizable	Combined Water–Land Surveys, Special Scenarios

- Specifications: Length 52 cm, Outer diameter 38 mm

- Core count: 2 cores

- Protection rating: IP68 (land/shallow water/corrosive soil)

Material Code	Model	Name	Material	Specification	Application Scenario
M4.3002	SE-40	Stainless Steel Electrode	Stainless Steel	12×400 mm	Resistivity – (Transmit, Receive)
M4.3005	CE-40	Pure Copper Electrode	Brass	5×300 mm	Resistivity – (Transmit, Receive)
M4.3006	PE-1	Plate Electrode	Stainless Steel	100×100×5 mm	Hardened Concrete Pavement
M4.3013	GE-40	Galvanized Iron Electrode	Galvanized Iron	12×400 mm	Buried Installation for Long-term Monitoring
M4.3009	GE-1	Graphite Electrode	Graphite	150×15 mm	Buried Installation for Long-term Monitoring
M4.3011	SE-1	Disc Electrode	Stainless Steel	100×10 mm	Buried Installation for Long-term Monitoring
M4.3001	NP-1	Non-polarizing Electrode	Lead Chloride	75×100 mm	Induced Polarization (IP) Reception

- Specifications: Length 30 cm, Width 5 cm

- Number of cores: 4

- Protection rating: IP67 (for complex curved surfaces/pipeline inner walls)

Material Code	Model	Name	Specification	Application Scenario
M4.3019	FPC-1	FPC Flexible Patch Electrode	Custom	Scientific Research
M4.3020	SIP-1	SIP Flexible Patch Electrode	Custom	Scientific Research

- Specifications: 10-channel/30-channel, 201×168×300mm

- Protection rating: IP65 (junction box)

WB-10

WB-30

Material Code	Model	Name	Material	Dimensions (L×W×H)	IP Rating	Rated Voltage	Rated Current	Application Scenario	Connection	Compatible Equipment
M1.1005	WB-10	10-channel Junction Box	ABS Engineering Plastic + Metal Terminals	201×168×300 mm	IP65	250V	3A	Adapter for 10-electrode Connection	Aviation Connector + Terminal Block	Compatible with All Versions
M1.1006	WB-30	30-channel Junction Box	ABS Engineering Plastic + Metal Terminals	230×150×85 mm	IP65	250V	3A	Adapter for 30-electrode Connection	Aviation Connector + Terminal Block	Compatible with All Versions

- Specifications: 10-channel/30-channel

- Protection Level: IP65

WB-10

WB-30

Material Code	Model	Name	Category	Material	Dimensions (L×W×H)	Channels / Cores	IP Rating	Rated Voltage	Rated Current	Application Scenario	Connection	Compatible Equipment	Service Life
M1.1003	GD20-TXH-5	5-channel Switch Box	Switch Box	ABS Engineering Plastic + Metal Terminals	Customizable	5 Channels	IP65	250V	3A	5-channel Signal Distribution	Aviation Connector + Terminal Block	2nd-generation GD-20	≥ 5 Years
M1.1004	GD20-TXH-12	12-channel Switch Box	Switch Box	ABS Engineering Plastic + Metal Terminals	Customizable	12 Channels	IP65	250V	3A	12-channel Signal Distribution	Aviation Connector + Terminal Block	2nd-generation GD-20	≥ 5 Years

- Specifications: 4 channels, 158×90×60mm

- Protection rating: IP65

RB-4

Material Code	Model	Name	Material	Dimensions (L×W×H)	IP Rating	Application Scenario	Connection	Compatible Equipment
M1.1007	RB-4	Resistor Box	Metal Housing + Precision Resistor Network	158×90×60 mm	IP65	Electrode Grounding Resistance Compensation	Terminal Block	Compatible with All Versions

- Specifications: 150V/300V, 3A output, GE plastic housing

- Protection rating: IP67

Material Code	Model	Name	Max. Output Voltage	Max. Output Current	Charging Voltage	Output Mode	Operating Temperature	Storage Temperature	Weight	Dimensions	Housing Material	Fuse Specification	Category
M0.5001	BP-150	150 V DC Step-up Power Supply	150V	3A	110V~240V AC	DC Output	-10 ℃/+50℃	-20℃/+60℃	7.5 kg	L377×W299×H195 mm	GE Plastic	5.2×20 mm	Lithium Battery
M0.5003	BP-300	300 V DC Step-up Power Supply	300V	3A	110V~240V AC	DC Output	-10 ℃/+50℃	-20℃/+60℃	8 kg	L377×W299×H195 mm	GE Plastic	6 A, 5.2×20 mm	Lithium Battery

- Specifications: 600V six selectable levels / 1000V adjustable, efficiency >90%

- Protection rating: IP65

BP-600

BP-1000

Material Code	Model	Name	Input Voltage Range	Max. Input Current	Efficiency	Max. Output Current	Output Voltage Settings	Operating Temperature	Operating Humidity	Storage Temperature	Storage Humidity
M0.5005	BP-600	600 V DC Step-up Power Supply	12~48V DC	35A	>90%	0.5A	100/200/300/400/500/600 V Selectable	-40℃~+45℃	<95%	-50℃~+70℃	<95%
M0.5006	BP-1000	1000 V DC Step-up Power Supply	220V±10% AC	-	>90%	5	0~1000 V Adjustable	-10℃- 50 ℃	<95%	-20℃- 60 ℃	≤95%

Construction Wiring

One-dimensional depth measurement, with wiring that can simultaneously set up 24 electrodes and test 12 points at the same time.

Features 1: Uses a segmented centralized design, switching electrodes during high-density measurements with the SR-10/SR-20 bidirectional smart cable heads.

Features 2: Sections can be connected endlessly, meeting the needs for deep profiling and high-density 3D exploration.

Features 3: Equipped with dual distributed high-density cable interfaces, so cross-hole measurements no longer require a transition switch controller.

Main Unit: GD-10/20, Advance/Supreme

Switching Device: SR-10/20 bidirectional smart cable head

Cable: 12-tap bidirectional high-density cable (CE5/CB10 series), each tap has two separate connectors, controlled from both ends by the cable heads.

Adopts a segmented centralized design, enabling electrode switching through SR-10/SR-20 bidirectional intelligent cable heads, with sections that can be connected indefinitely.

Feature 1: Sections can be connected indefinitely, meeting the requirements of deep profiling and 3D high-density exploration.

Feature 2: Equipped with dual distributed high-density cable interfaces, eliminating the need for a transition switch controller for cross-hole measurements.

Main Unit: GD-10/20, Advance/Supreme

Switching Device: SR-10/20 bidirectional intelligent cable heads

Cable: 12-tap bidirectional high-density cable (CE5/CB10 series), each tap has two independent connectors, controlled from both ends by the cable heads.
