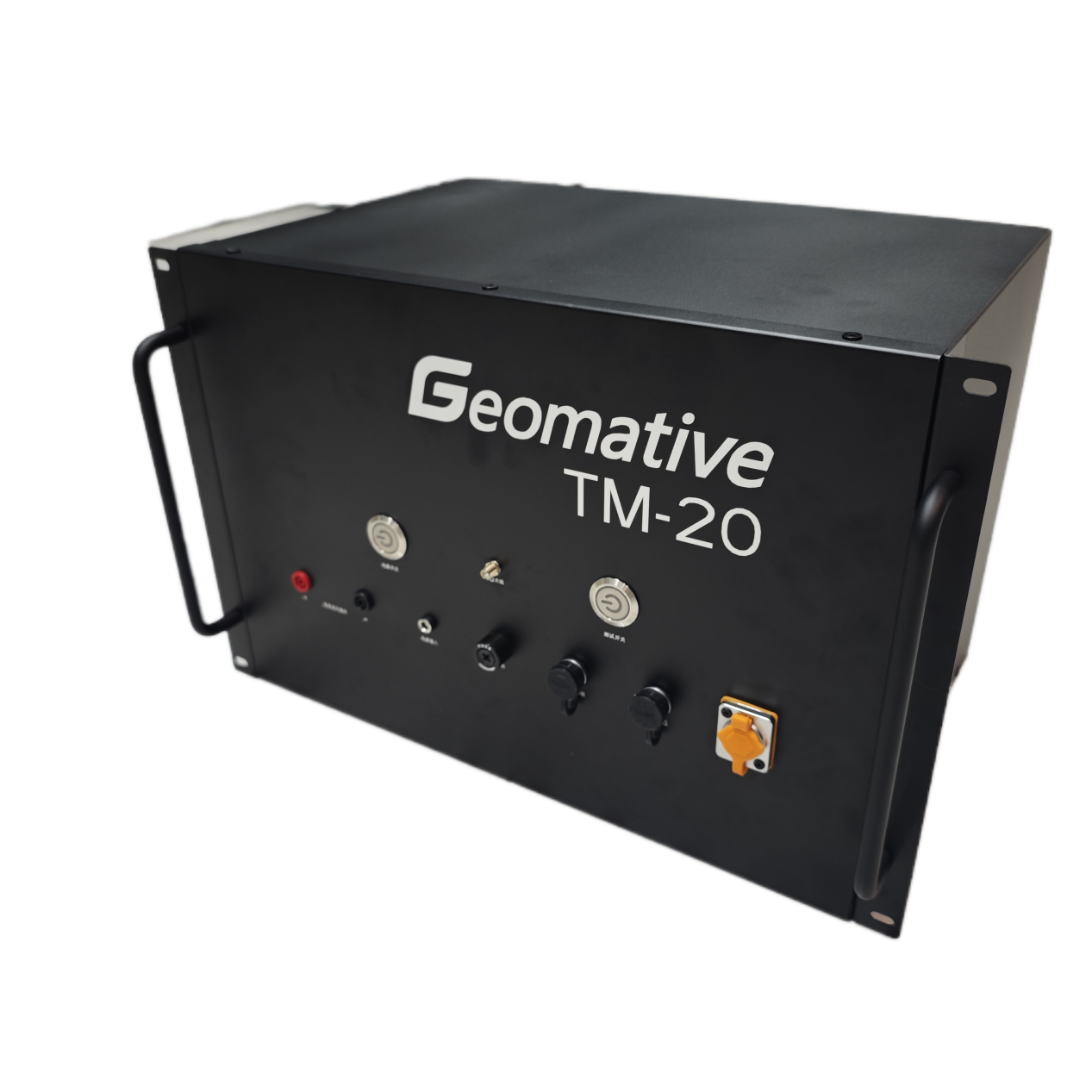

IoT communication and power integrated module, equipped with 4G/5G communication, can automatically remotely control device startup and shutdown on a schedule, realizing automatic task execution and automatic shutdown after completion, with both power management and remote control functions.
Specifications: IoT communication and power integrated module, built-in 250V boost device
Communication: 4G/5G full-network (annual data 6G)
Protection rating: IP65
Functions: Power management + remote control + data transmission
Ordering Information
| Material Code | Model | Product Name | Communication Method | Input Voltage | Output Power | Protection Rating |
|---|---|---|---|---|---|---|
| M0.5008 | TM-20 | IoT Communication & Power Integrated Module | 4G/5G full-network | AC 120~250V or DC 24V | 250V boost | IP65 |

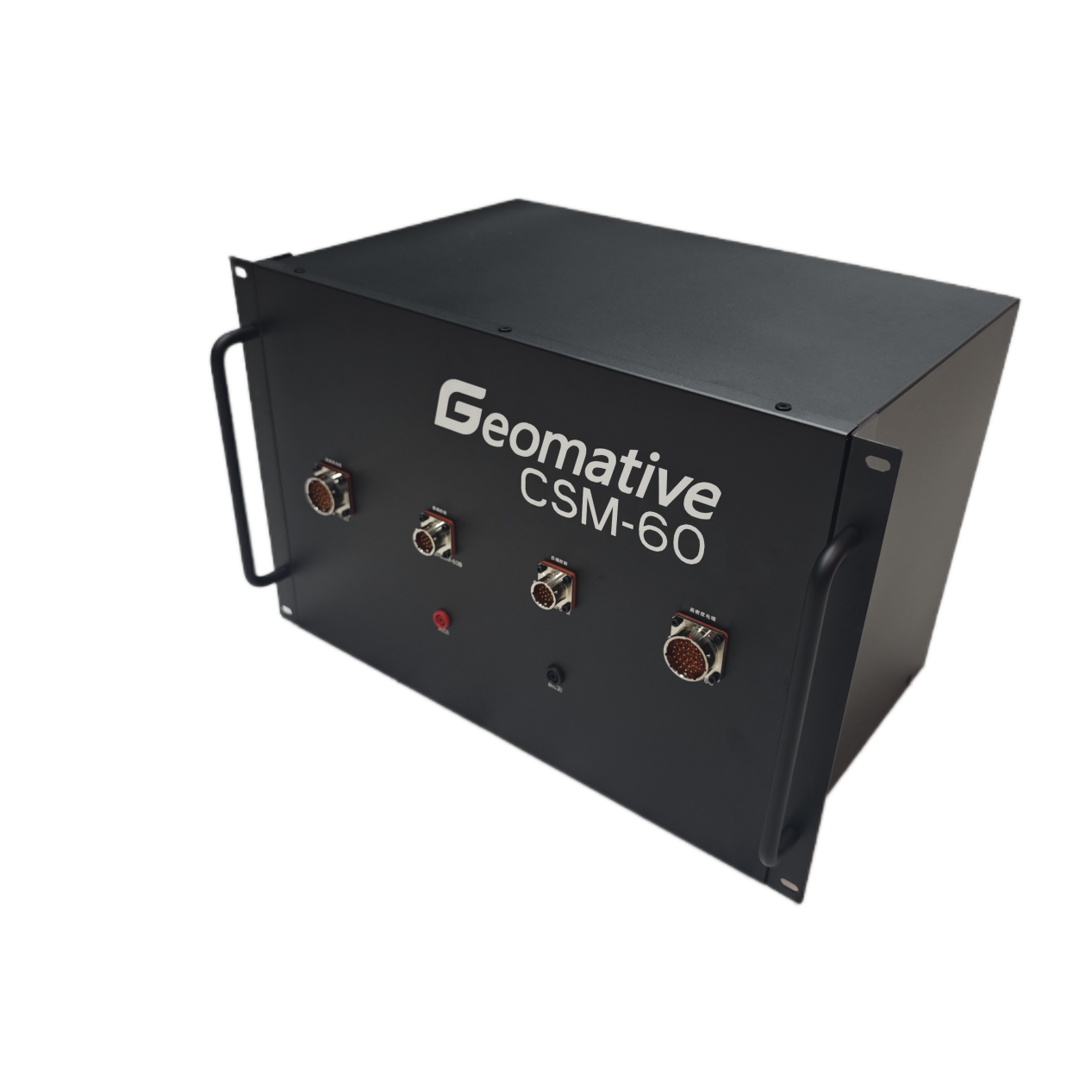

Centralized electrode switching unit, single unit maximum 60 channels, used for online resistivity meter channel switching management. Multiple units can be cascaded to expand channel count, supporting automatic switching of Wenner, dipole-dipole and other configurations, completing multi-group data acquisition with one electrode deployment.
Specifications: Centralized electrode switching unit, single unit maximum 60 channels
Type: Online single-channel switching box, multiple units can be cascaded to expand channels
Protection rating: IP65
Features: High precision, high sampling rate (10kHz), supports automatic switching of multiple configurations
Ordering Information
| Material Code | Model | Product Name | Max Channels | Input Impedance | ADC Precision | Protection Rating |
|---|---|---|---|---|---|---|
| M1.0005 | CSM-60 | Centralized Electrode Switching Unit | 60 channels | 10MΩ | 12bit | IP65 |

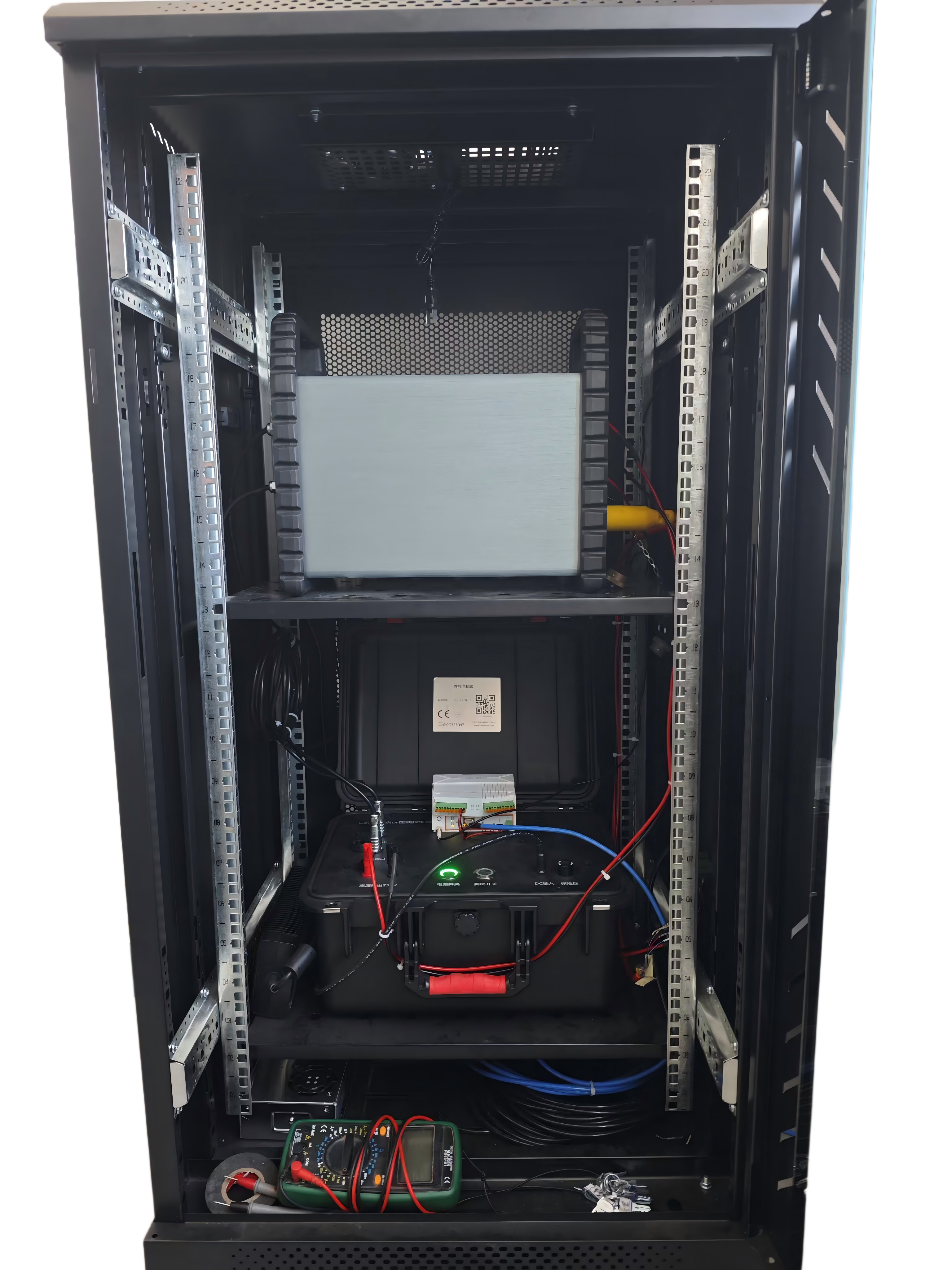

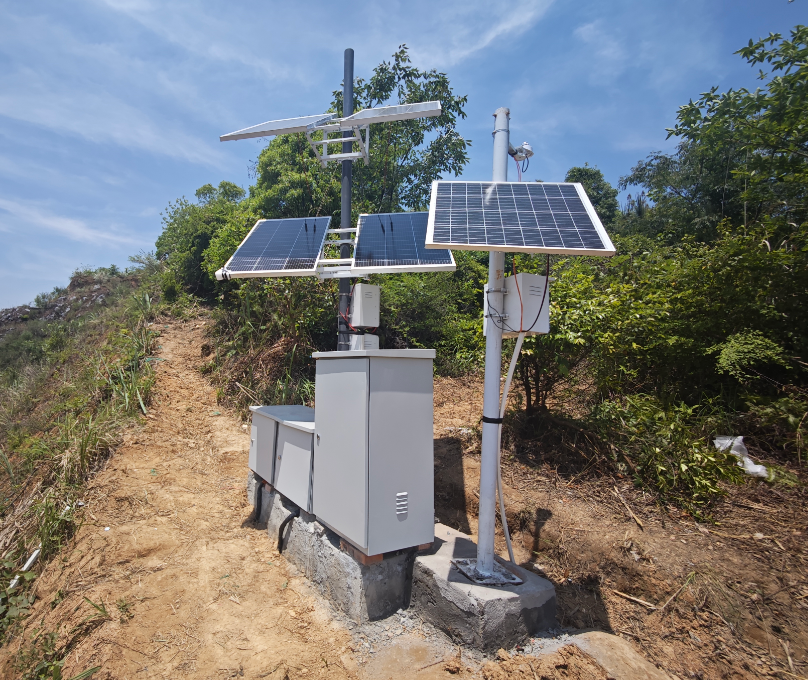

Integrated outdoor waterproof cabinet for field open-air deployment, accommodating GDM-31 main unit, TM-20 module, wiring terminals and power modules, providing IP65 protection.
Specifications: Outdoor waterproof cabinet, integrated design
Material: Cold-rolled steel plate spray plastic + silicone sealing strip
Protection rating: IP65
Functions: Accommodate GDM-31 main unit, TM-20 module and wiring terminals
Ordering Information
| Material Code | Model | Product Name | Specifications | Appearance Material | Protection Rating | Applicable Scenario |
|---|---|---|---|---|---|---|
| — | TM-05 | Outdoor Waterproof Cabinet | Custom size | Cold-rolled steel plate spray plastic | IP65 | Field open-air deployment |
