What is it like to find a gold mine?

ake off your sunglasses

Raise the corners of your mouth

lightly

"I have mines"

My pride has been fully expressed

Who hasn't had a dream of having a mine at home?

This mine can be coal mine, iron mine, and of course gold mine is the best

Come and share with you today

What is it like to find a gold mine?

How to find gold mines with geophysical equipment?

In the study of geophysical methods of mineral exploration (alluvial or quartzite), it is an important technical means to use the difference of the charging rate characteristics of metals in the limestone rock and soil layers to judge the location of metal ore.

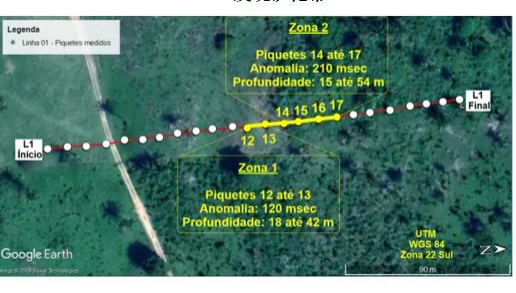

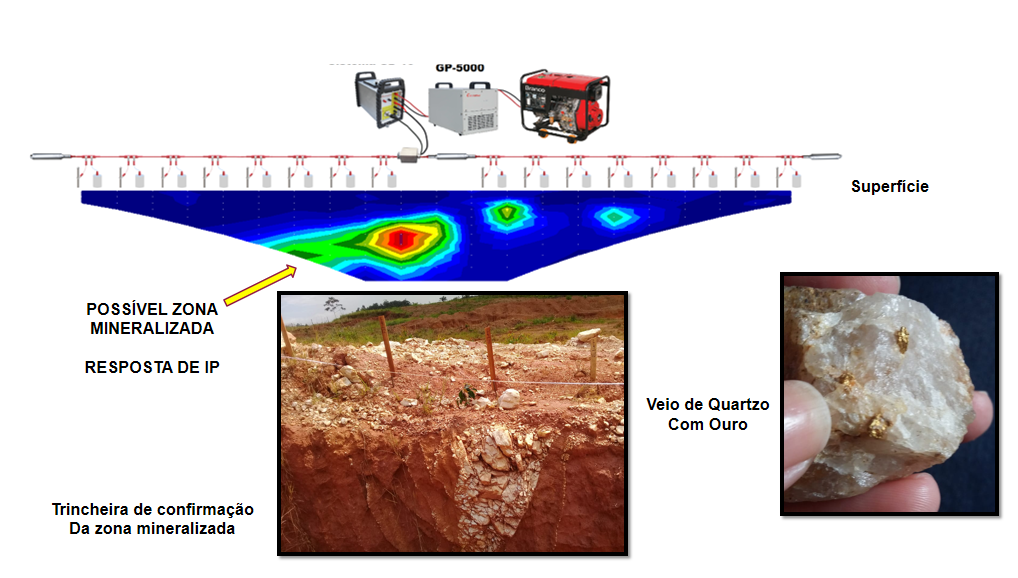

Using the GD-10 High Density electrical resistivity tomography(ERT) system, the Brazilian client has found gold deposits in the sulphate belt where metal deposits may be found in ESTADO DO PARA, Brazil.

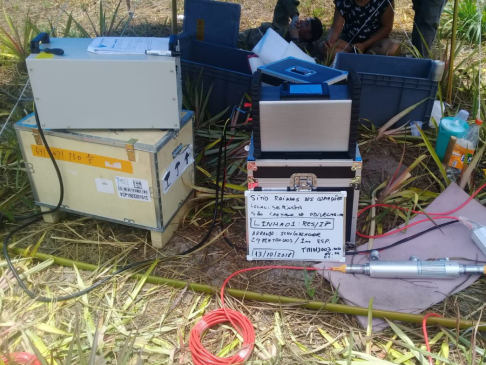

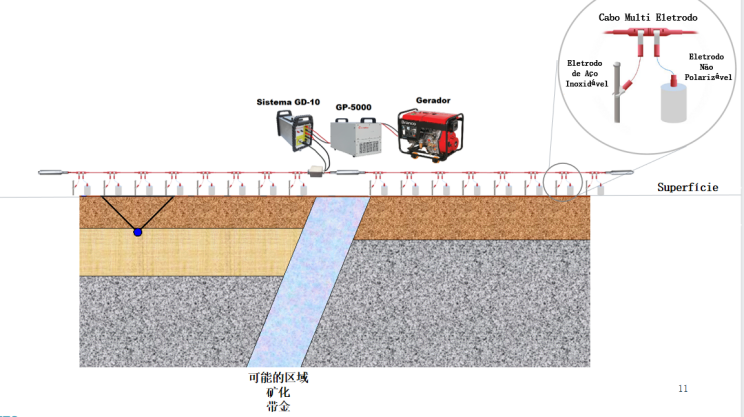

GD-10 electrical resistivity tomography system

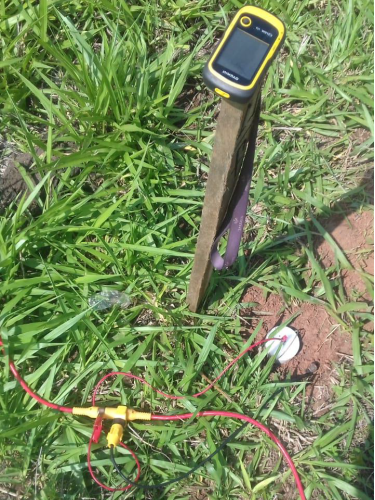

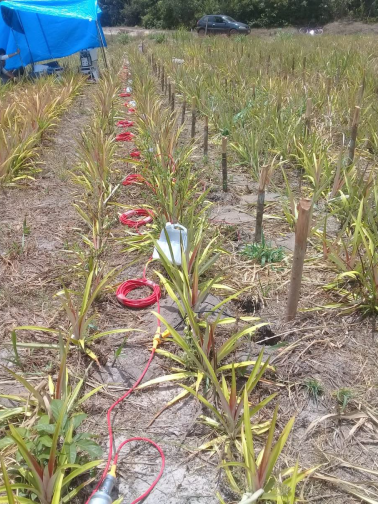

IP/Resistivity Line                                                              measuring stake

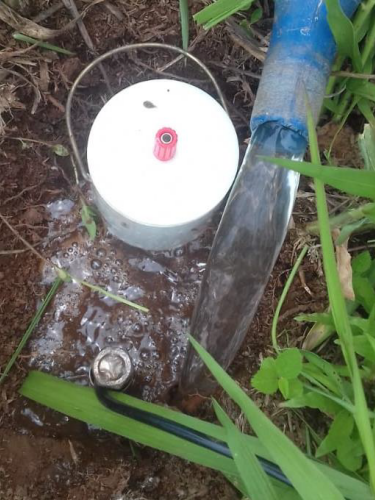

Stainless steel and non-polarized electrodes

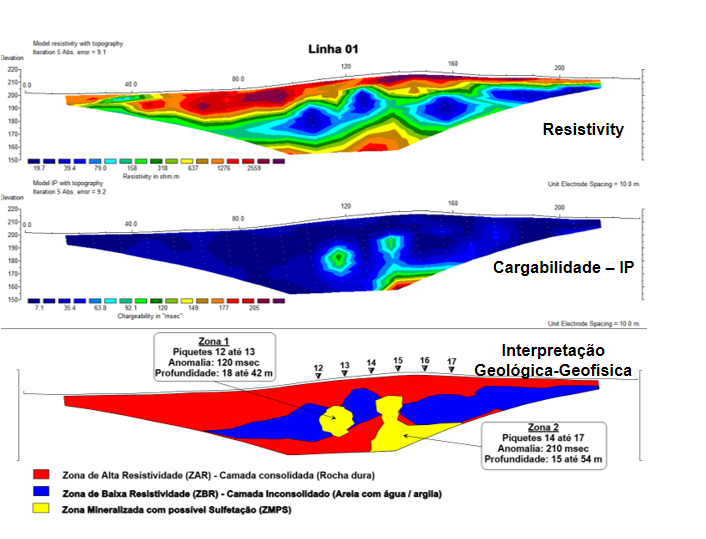

Using the GD-10 superme 2D+/3D+ double-take out cable enables high-density field-excited polarization measurements. Through the analysis of IP data, the occurrence area of metal deposits can be identified. By comparing the physical properties of the geological environment, it is possible to further determine the underground sedimentary environment and metal mineral enrichment areas, and assist geological drilling to achieve accurate ore prospecting.

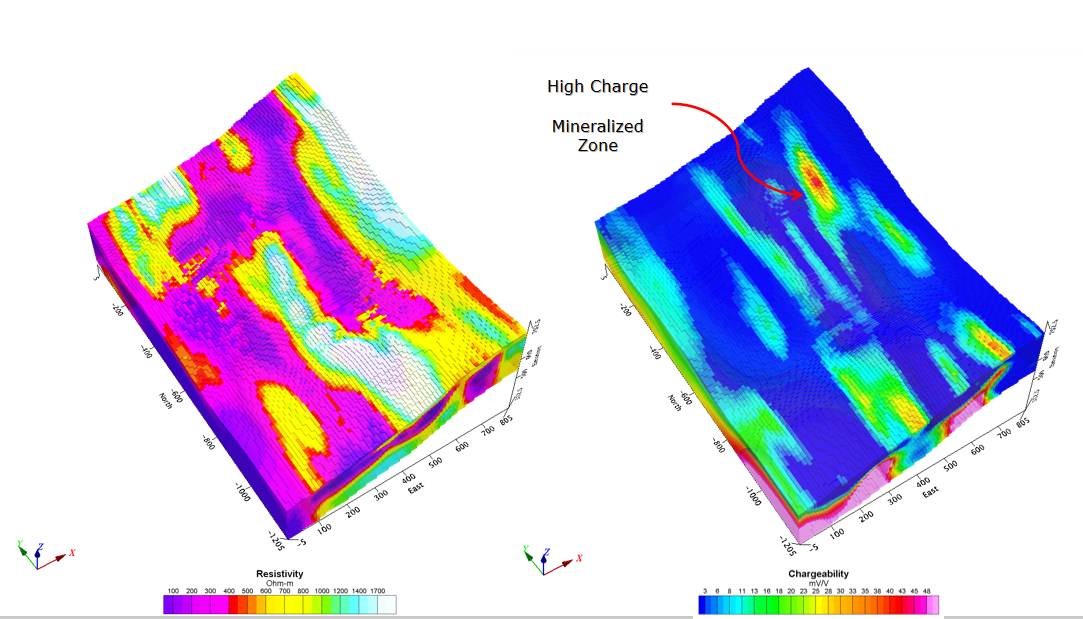

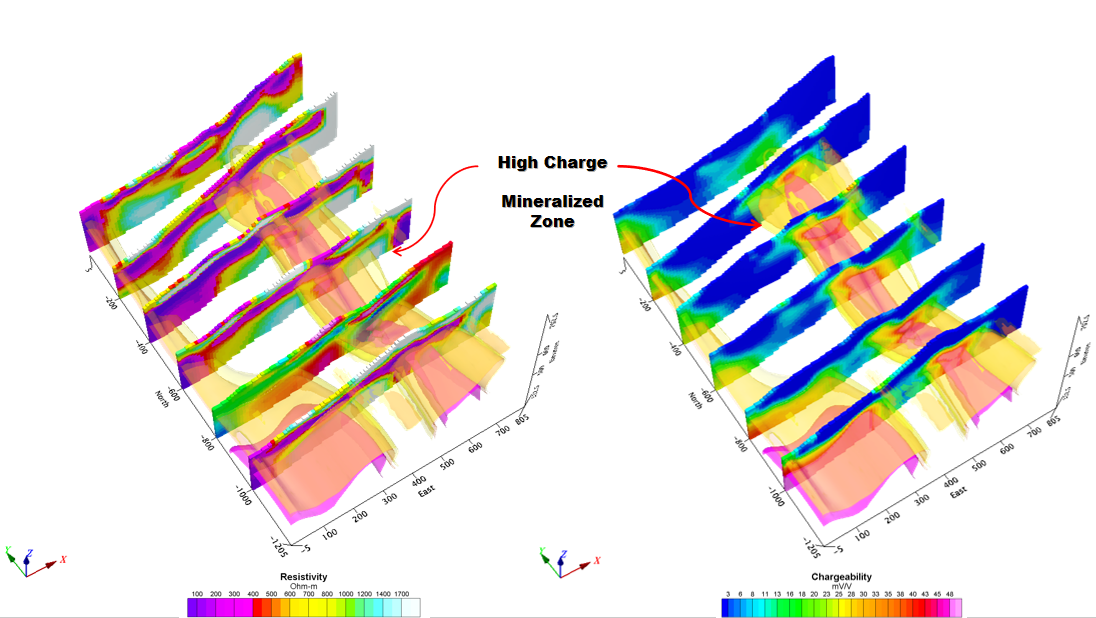

The GD-10 High Density Electrometer has visualization capabilities so it can generate 2D and 3D images of what may be suspected gold mining targets. At the same time, the physical properties of IP properties can be used to identify the deposit environment and gold accumulation areas, making it possible to identify gold mineralization in the area through detection.

Geophysical survey is indirect and non-invasive, without any form of harm to the environment, and no major perforation and pollution damage; and can provide real "tomography" underground, more accurately describe the underground morphology of ore bodies, for customers Provides important information to inform drilling.

Back to the title, what is it like to find a gold mine?

Just so so

Geophysical methods can not only prospect

groundwater detection

Landfill Inspection

Polluted Site Survey

Dam leak detection

and many more

Speaking of which, does anyone want to mine with us?
