Well logging and surface testing

Geomative provides underground ERT resistivity testing solutions, breaking through traditional 1D VES method for well logging. The ERT well logging method simplifies the field construction and wiring, greatly improves efficiency and data comprehensiveness. It supports the acquisition of SP, resistivity, IP and other high-quality data.

Features

-Geomative customized well logging cable extremely simplifies the wiring inside the well. It only requires to put the cable in the well and the head of the cable connects to the switching box for automatic measurement.

-For Well-Ground or Well-Ground-Well measuring methods, when the workplace is not allowed stainless steel electrode to be laid on the ground, we provide advanced plate electrode which requires to directly touch with the ground, causing no damages to the ground environment, suitable for concrete floor measurement.

-The high testing efficiency of half an hour allows data acquisition of over 2,000 sample points.

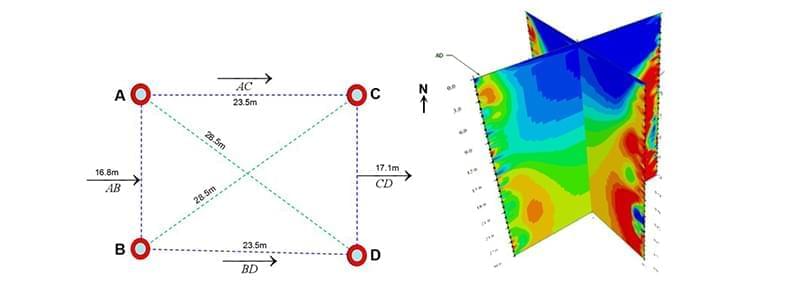

- The test results show complete, simple and clear cross-section imaging.

Application Direction

SEAWATER INTRUSION MONITORING

BOTTOM MUD DETECTION OF RIVERS AND LAKES

UNDERGROUND SCENE TEST

UNDERWATER ENVIRONMENT TEST

SEAWATER INTRUSION MONITORING

BOTTOM MUD DETECTION OF RIVERS AND LAKES

UNDERGROUND SCENE TEST

UNDERWATER ENVIRONMENT TEST

SEAWATER INTRUSION MONITORING

BOTTOM MUD DETECTION OF RIVERS AND LAKES

UNDERGROUND SCENE TEST

UNDERWATER ENVIRONMENT TEST

Functions

1、Support a variety of high-quality data acquisition such as SP, RES, and IP.

2、Improved test efficiency and easier construction and wiring.
