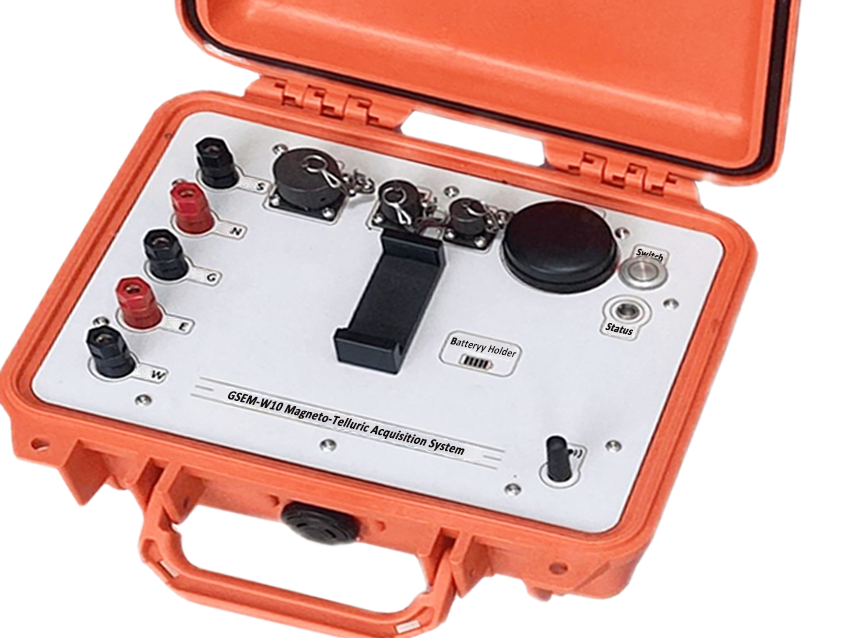

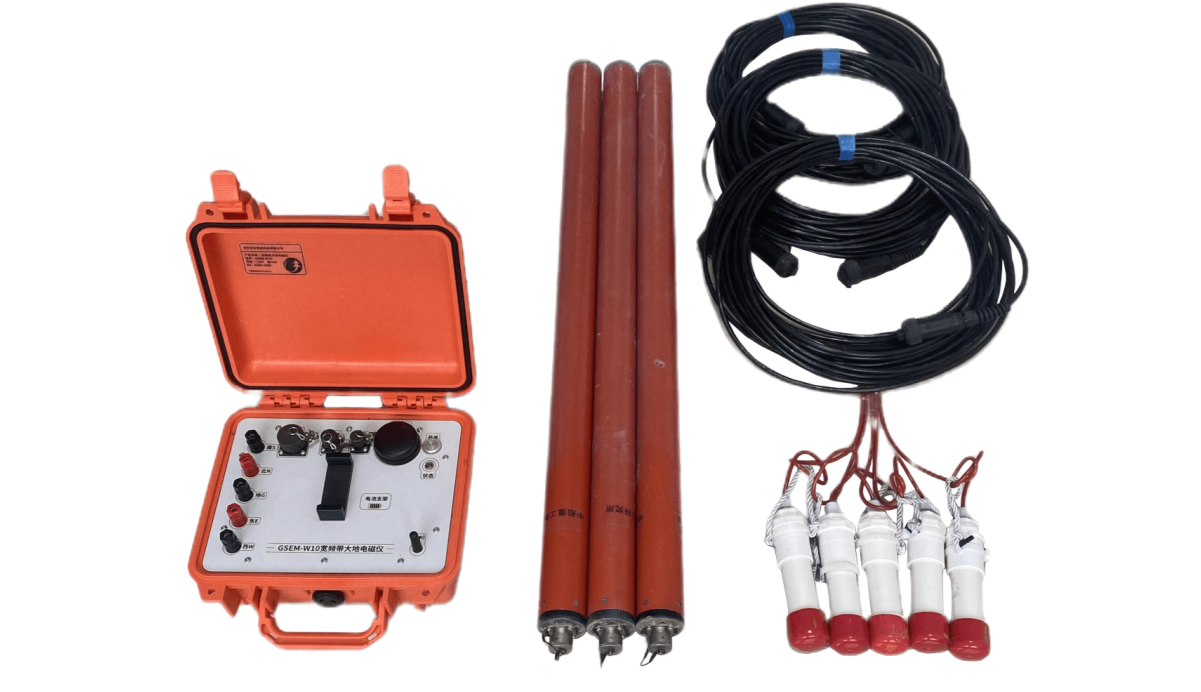

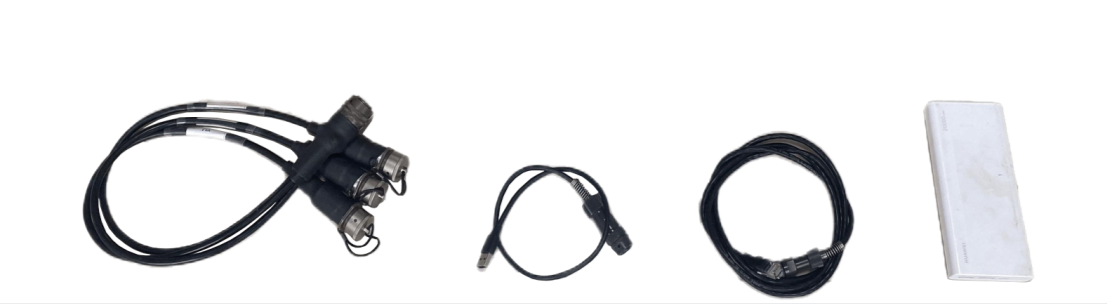

Magneto-telluric (MT) Acquisition System

IoT MT device Goal and Idea : The device power supply by wide-spread 5V power Bank，It was easy transport by Air Based on the ZigBee Tech, a single operator can control more than 200 MT device Using the latest low noise amplifier and ADC, the instrument noise is controlled lower 5nV/sqrt(Hz) Adopt DSP real-time processing, real-time 50/60Hz multi-notch, multi-band data real-time output MT impedance estimation based on artificial intelligence can output MT impedance data of expert-level points directly

Features

Low Power Consumption

Low background Noise

IoT long distance communication

AI Impedance estimate

High Power transmitter @CSAMT

Fit for all kinds of Magnetic Sensors

Application Direction

MINERAL SURVEY

GEOTHERMAL RESOURCE EXPLORATION

STRUCTURAL SURVEY

Functions

1.The device power supply by wide-spread 5V power Bank，It was easy transport by Air
2.Based on the ZigBee Tech, a single operator can control more than 200 MT device
3.Using the latest low noise amplifier and ADC, the instrument noise is controlled lower 5nV/sqrt(Hz)
4.Adopt DSP real-time processing, real-time 50/60Hz multi-notch, multi-band data real-time output
5.MT impedance estimation based on artificial intelligence can output MT impedance data of expert-level points directly

Technical Parameter Index

MT Receiver Specification
Input Signal Range:	±1.25V
input impedance:	1MΩ
Gain:	1,3,9,27,81 Controlled
Frequency:	0.1～10000Hz (AMT) , 0.001～1kHz (MT),0.00001~1kHz (LMT)
Dynamic Range:	160dB
Sensors:	CMS-01、CMS-02 （support Phoenix Mag Sensors）
Background Noise:	3 nV / sqrt(Hz) @ 1000Hz AMT 5 nV / sqrt(Hz)@ 1Hz M
Synchronization:	±30ns(Standard GPS), ±1ns(Optional GPS)
Connection:	Wi-Fi, Zigbee, Internet
Channel:	6( 2 for electric, 3 for Magneto, 1 for backup )
Sample Rate:	24000/2400Hz controlled, 150Hz continues (AMT mode)2400/150Hz controlled, 15Hz continues (MT mode)
Notch Filter:	50/60Hz odd Notch Filter and 100/120Hz Notch Filter
Communicate Distance:	1600m@ Visual Condition, 200~400m @Brush via ZigBee
Max Station:	256@ ZigBee
