GD-20 Electrical system

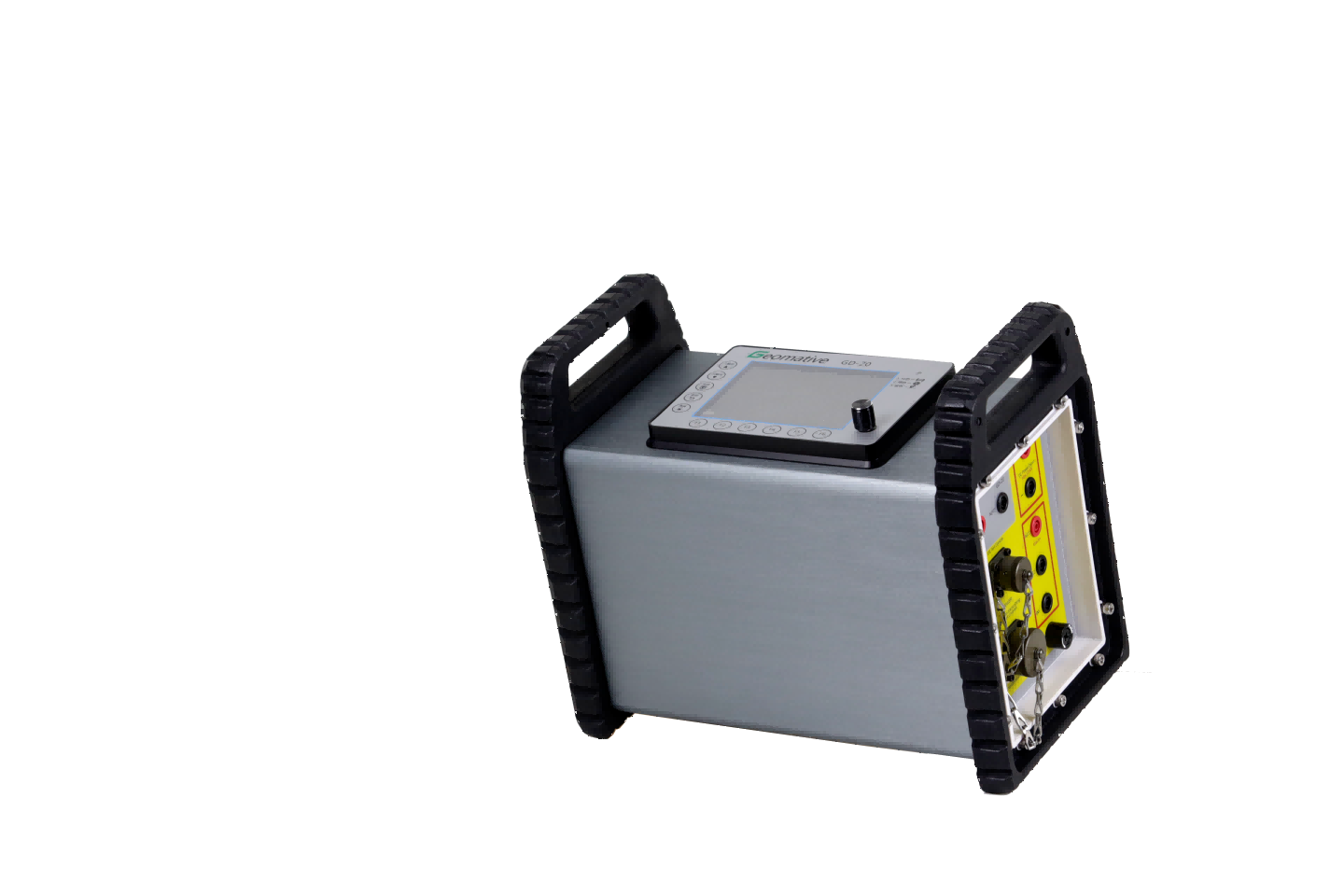

GD-20 is a brand-new multi-channel electrical method system, independent 5/12 channel design, It can measure up to 10 points at the same time, greatly improving the efficiency on site. GD20 can be used for self-electricity, apparent resistivity and IP testing. Compared with single-channel equipment, the multi-channel average test efficiency is increased by 2-3 times, greatly shortening the field construction period. The GD-20 system is portable and has its own memory to store data. Multi-channel conversion box  Supporting VES, ERT, and N-∞ settings. VES can test 12 sets of sounding points in the meantime , ERT test can meets 10-channel data acquisition, N-∞ gear meets the application of N-connected infinity device, and independent 10-channel design maximizes test efficiency.



Features

1

Complete DC solution

2

upporting Resistivity automatic iteration and single point testing, can improve data quality and testing efficiency

3

Flexible, efficient and convenient layout, double connection method can twice enlarge the current threshold

4

Powerful and efficient rolling and 3D testing and pseudo 3D scanning

5

Rich devices and support custom scripts

6

Multi-dimensional data display, all problems, on-site discovery, real-time positioning

7

GD-20 series, unique Centralized control center and Distributed collection mode

Application Direction

MINERAL RESOURCE EXPLORATION

UNDERGROUND PIPELINE MONITORING

ARCHEOLOGICAL STUDIES

DAM SEEPAGE AND LEAKAGE DETECTION

CEOLOGICZL MAPPING

CONTAMINATION RANGE DETECTION

EXPLORING THE LANDFILL PLANT AND SEEPAGE AREA

CAVITY EXPLORATION,BEDROCK DETECTION FOR PILE FOUNDATION

GROUNDWATER AND MINING RESOURCRS EXOLORATION

Product Features

1D VES for Resistivity or IP

In 1D VES survey, transmission up to full power 7200W (1200V*6A) can be emitted to allow excited pulse signals to reach deeper strata. For small signals, up to 255 stacking amounts are allowed to enhance measurement accuracy. 1D survey layout can be placed and measured at 12 points concurrently, further reducing the amount of electrode scanning.


Supported 1D arrays (click for details)

1)4P-VES

2)Composite Profiling

3)Dipole VES

4)3P-VES

5)Mid-grandient

6)Customized arrays

2D ERT or IP Profiling

GD-20 ERT system is capable of conducting 2D cross-section profiling of ERT and IP in field. Through the array script management in Geomative Studio, clients can predefine survey parameters on PC prior to field surveys. Up to 3200W (800V*4A) transmission power can be deployed in field.


3D ERT or IP Profiling

Using GD-20 ERT measurement system, the sectional centralized cabling layout can be deployed robustly in a snakelike layout pattern to perform 3D ERT and IP survey. Up to 3200W (800V*4A) can be transmitted under this mode. If ERT cabling is insufficient, limited cabling can be deployed in a dual-direction shifting combination or multiple paralleled 2D survey line data fusion method to cover a larger 3D region.


High power IP mid gradient scanning

Geomative is the first in the industry to adopt ERT modules in the high-powered IP mid-gradient cross-sectional profiling. Similar to the ERT method, clients can deploy a pair of AB electrodes and multiple sets of non-polarizable electrodes. AB transmitting electrode is connected to the AB terminal port on the GD-20, while the non-polarizable electrodes are connected to the ERT cables takeouts. During IP survey, the host instrument emits electrical signal simultaneously and sequentially select MN electrodes in automated mode. Under sufficient amount of cabling and electrodes, the whole lateral cross-sectional profiling can be accomplished in one run, with a significant enhancement in survey efficiency. If signal emission is performed using external transmitter, clients can simply connect the AB terminal port of GD-20 host to the emission circuit in series. GD-10 will automatically monitor and detect the transmitted electrical signals, triggering and synchronizing the MN acquisition channels simultaneously.


GD-20 senior

Supreme2D/3D

Supreme2D+/3D+

Electrical resistivity sounding



IP sounding

SP

Maximum Power (W) 1200V*6A

Upgradeable hardware



Electrical resistivity sounding, 2D / 3D Profiling


Distributed ERT (single takeout cabling)



Distributed ERT (Dual takeout cabling)







Technical Parameter Index

others

Operating Temperature

-10℃/+50℃

Storage Temperature

-10℃/+60℃

Internal Battery

16.8V Lithium Battery

Weight

8.5kg

Dimensions

39*20*29cm

Screen Display

5.7" full Color LCD 640*480

Transmittier

Protection Features

IP65,with protections against over-current, over- voltage, short circuit,  high temperature

Maximum Power(W)

7200W

Maximum Voltage(V)

1200V

Maximum Current(C)

6A

Current Resolution

better than 0.1%

Pulse Width:

0.5、1s、2s、4s、8s、16s、32s

Receive

A/D Conversion Rate

24 bit

Noise Rejection

≥120dB

Voltage Range

±24V

SP Compensation

±10V

Voltage Resolution

0.1%±1uV

Channel

5,12
