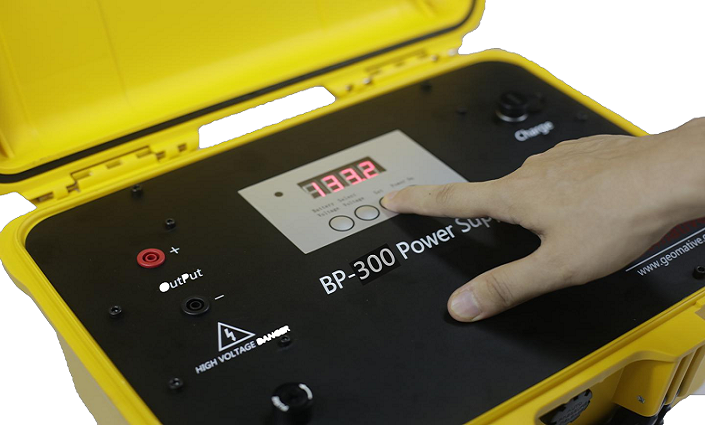

BP-300 D.C. Rechargeable power source

BP-300 is a new generation Digital DC Power Source. It can output 50V,100V, 150V,300V voltage

Features

Control panel is replaceable

Displaying work status intelligently

Fully sealed GE plastic shell

Portable

Over-current protection and over discharge protection

Application Direction

Functions

1、sets of BP-300 could be connected in series for high power output.

2、More connected in series for high power ,Single BP-300 can output max 300v DC voltage

Technical Parameter Index

BP300 Parameters
Weight	10.5kg
Dimensions	265200295mm
Maximum Current	1A Constant Current
Output Mode	DC output
Working Temperature	-10℃/+50℃
Storage Temperature	-10℃/+60℃
Charging Voltage	110-240V A.C
Type	Lithium batteries
Fuse Size	5.2*20mm
