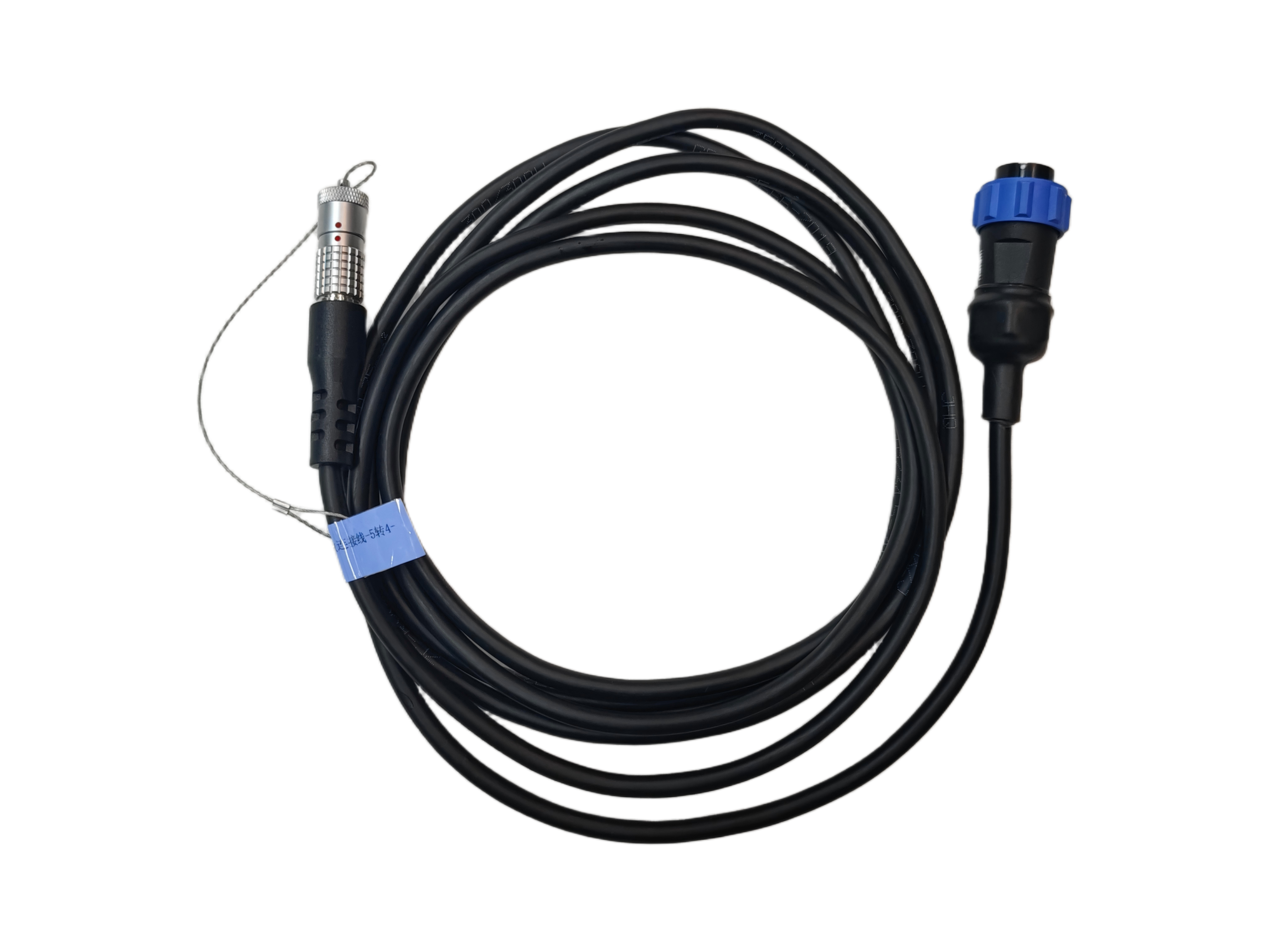

Data Cable
Ordering Information
| Material Code | Model | Name | Plug |
|---|---|---|---|
| M6.0014 | T-11 | Surface TEM Probe Connection Cable | Waterproof Aviation Plug |
Its central-probe design replaces conventional overlapping-loop arrangements, helping simplify field deployment and improve operational flexibility across different terrains.
With configurable transmitter loop sizes and integrated data acquisition and processing capabilities, the GT-10 is suitable for mineral exploration, groundwater investigation, goaf detection, and engineering geological surveys.

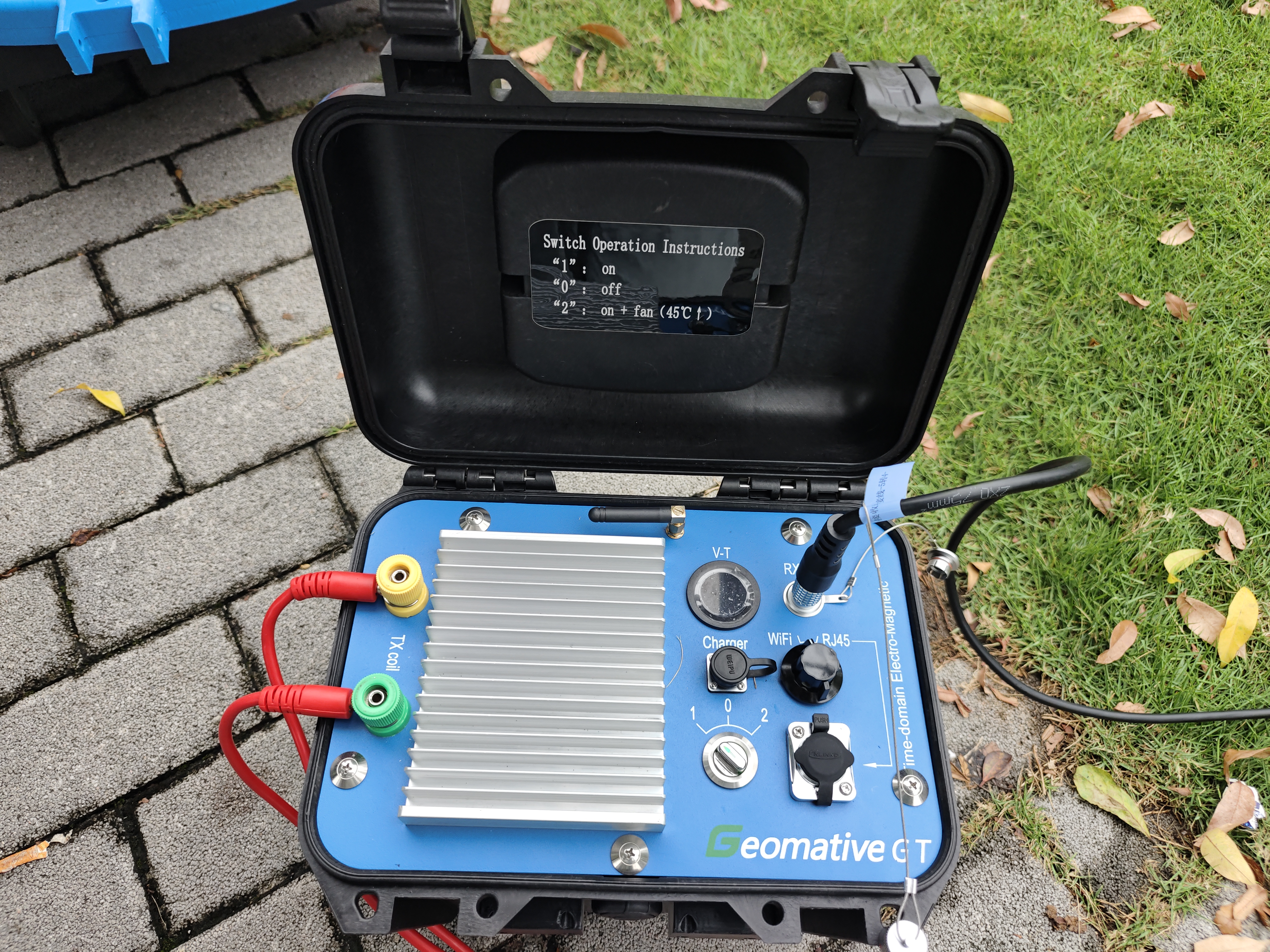

Receiver + transmitter + power supply all-in-one, 10 kg, 403×330×178 mm, with built-in battery operating for over 8 hours.
Output current 150A, max power 3.6 kW, bipolar square wave (duty cycle 1:1), pulse width 10/20/40 ms.
Replaces the conventional overlapped-loop setup, smaller in size and lower failure rate, delivering accurate results in both mountainous and flat terrain.
Integrated acquisition, processing, forward/inverse modeling, and automatic result output; supports remote data management and real-time upload via wired + wireless dual channels.
| Parameter | Receiver Module | Parameter | Transmitter Module |
|---|---|---|---|
| A/D Converter | 32-bit | Transmitter Voltage (V) | 36-57 |
| Dynamic Range | 160dB | Transmitter Current (A) | ≥150 |
| Sampling Rate | 1μs、4μs、16μs | Current Pulse Width (ms) | 10、20、40 |
| Number of Acquisition Channels | 2 | Transmitted Waveform | Bipolar square wave with a 1:1 duty cycle |
| Background Noise | 1μV | Maximum Transmitter Power (kW) | 8.5 |
| Voltage Measurement Range | -200V-200V | Synchronization Method | Cable synchronization |
| Voltage Measurement Resolution | ≤300nV | Turn-off Time | 0.5–300 μs, depending on the supply current and transmitter coil |
| Measurement Accuracy | 0.001 | Computer System | Windows-based operating interface |
| Input Gain Range | 1/80-8000 | Data Interface | USB2.0 |
| Minimum Sampling Interval | 4μs | Storage Capacity | ≥30,000 measurement points |
| Noise Suppression | >100dB | Dimensions (L × W × H) | 403mm×330mm×178mm |
| Frequency Bandwidth | 0-500kHz | Weight | 8kg |
| Stacking Times | 1~200 | Operating Temperature | -10℃-50℃ |
| Parameter Category | GT-10 |
|---|---|
| System Positioning | Intelligent TEM system for medium- to deep-depth exploration |

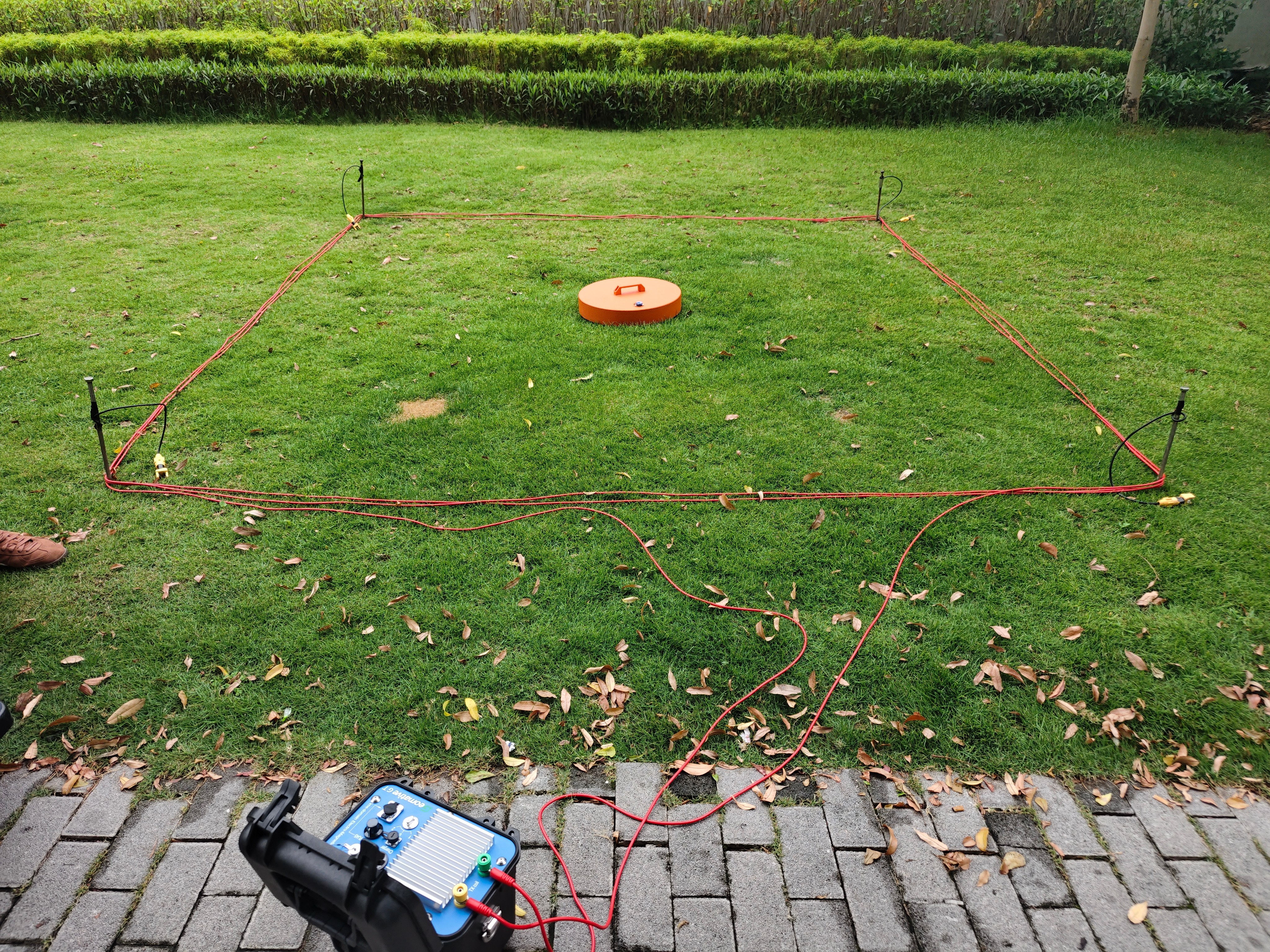

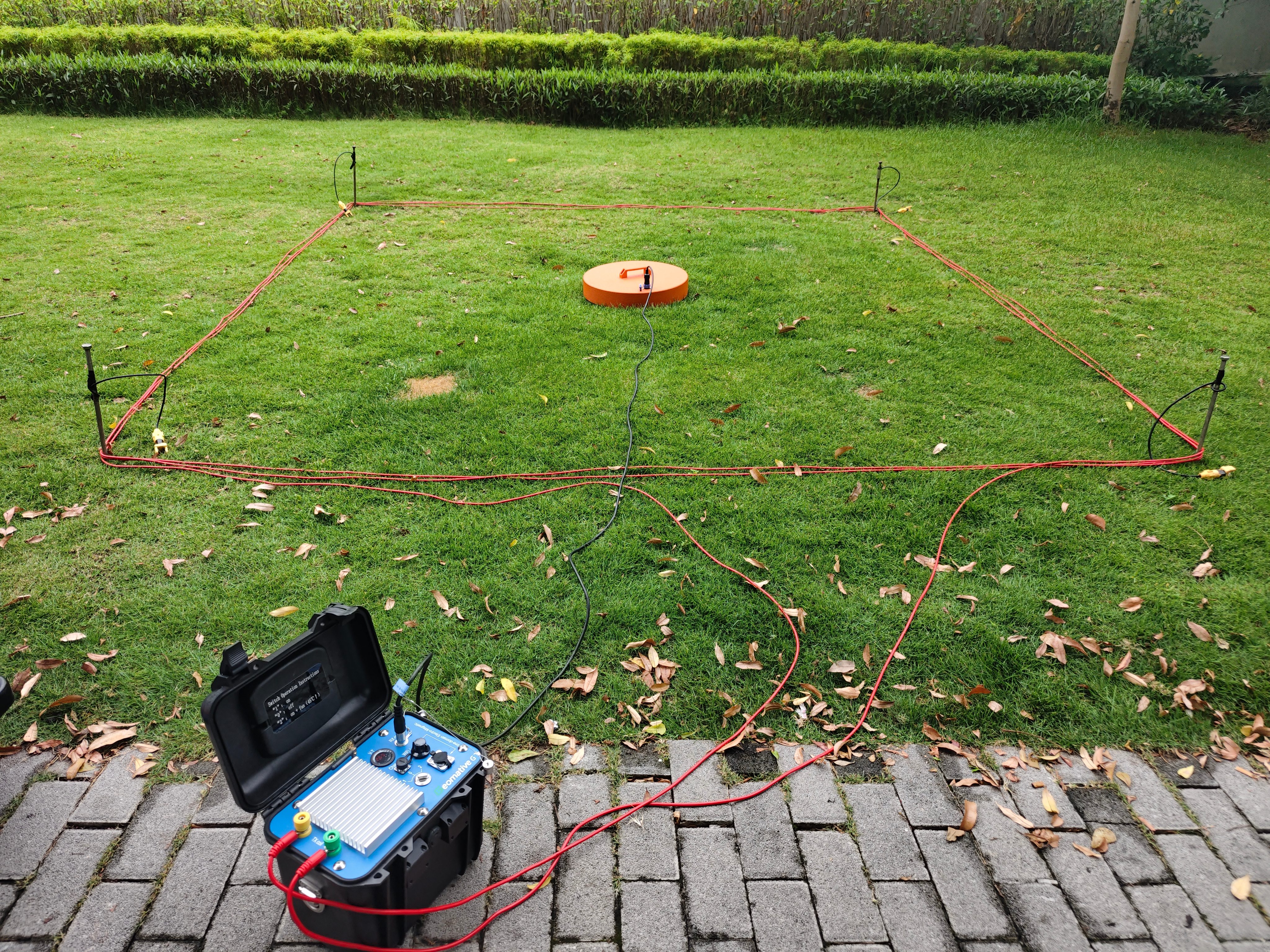

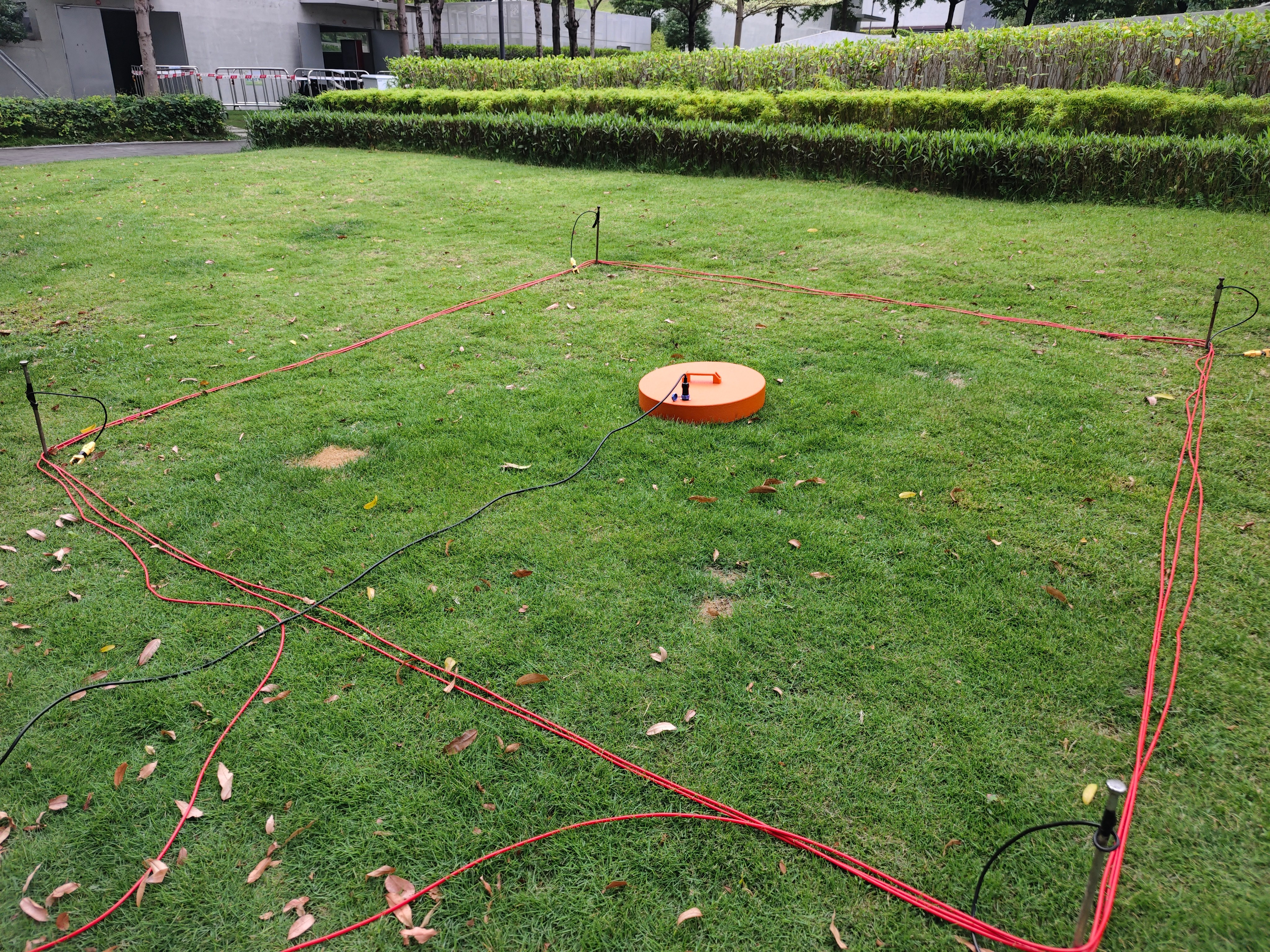

| Standard Transmitter Loop Specification | 3 m × 3 m square loop; general compatible range: 1 m × 1 m to 10 m × 10 m square loops |

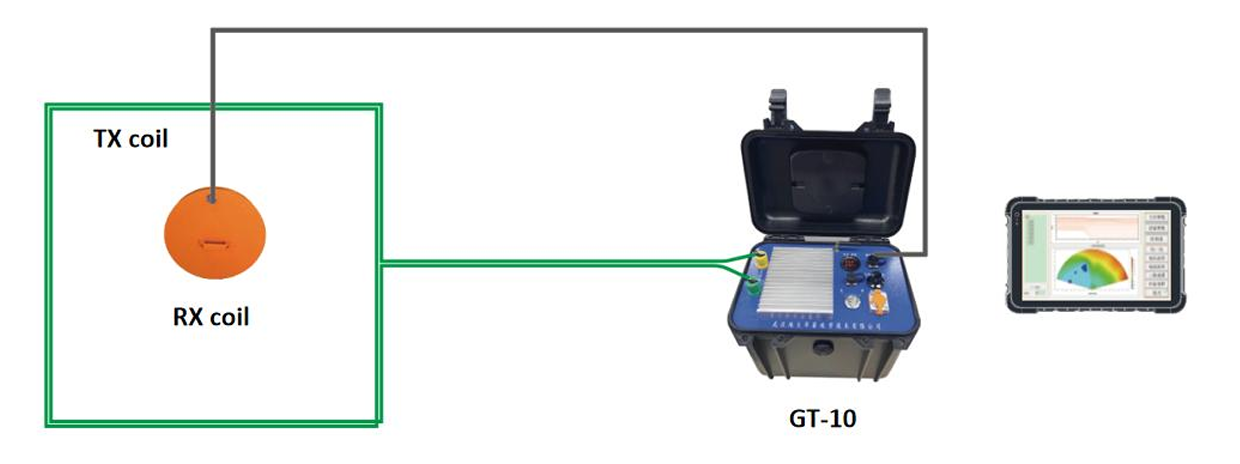

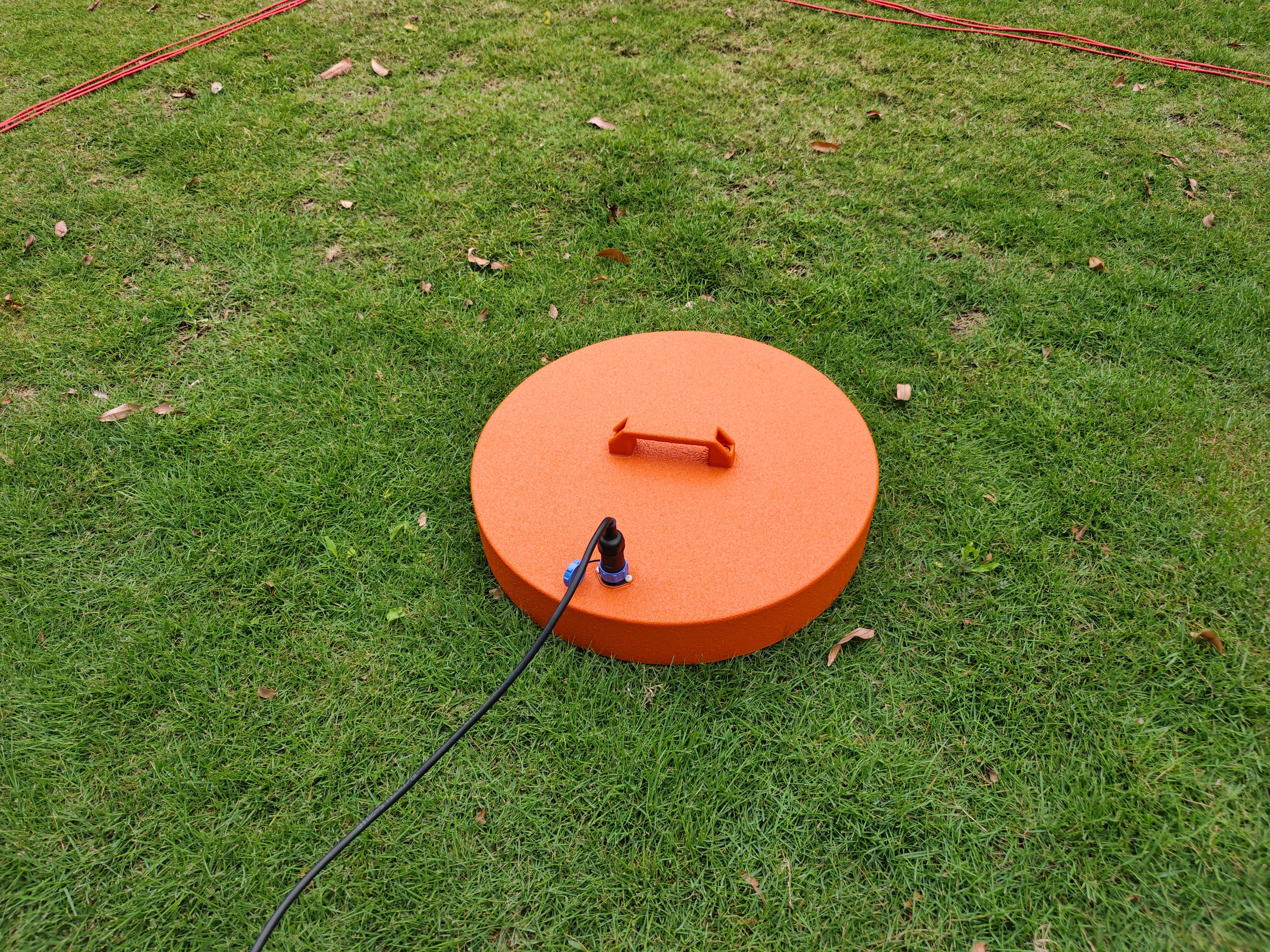

| Standard Receiver Probe / Coil | Compact 0.45 m central receiver probe (central-loop configuration) |
| Common Survey Configuration | Central-loop configuration |
| Compatible Transmitter Current | Designed for high-current operation and medium- to deep-depth exploration |
| Typical Applications | Ground-level goaf detection, mineral exploration, hydrogeology, and medium- to deep-depth engineering surveys (30–600 m) |
| Design Features | Separate transmitter loop and receiver probe for flexible deployment |

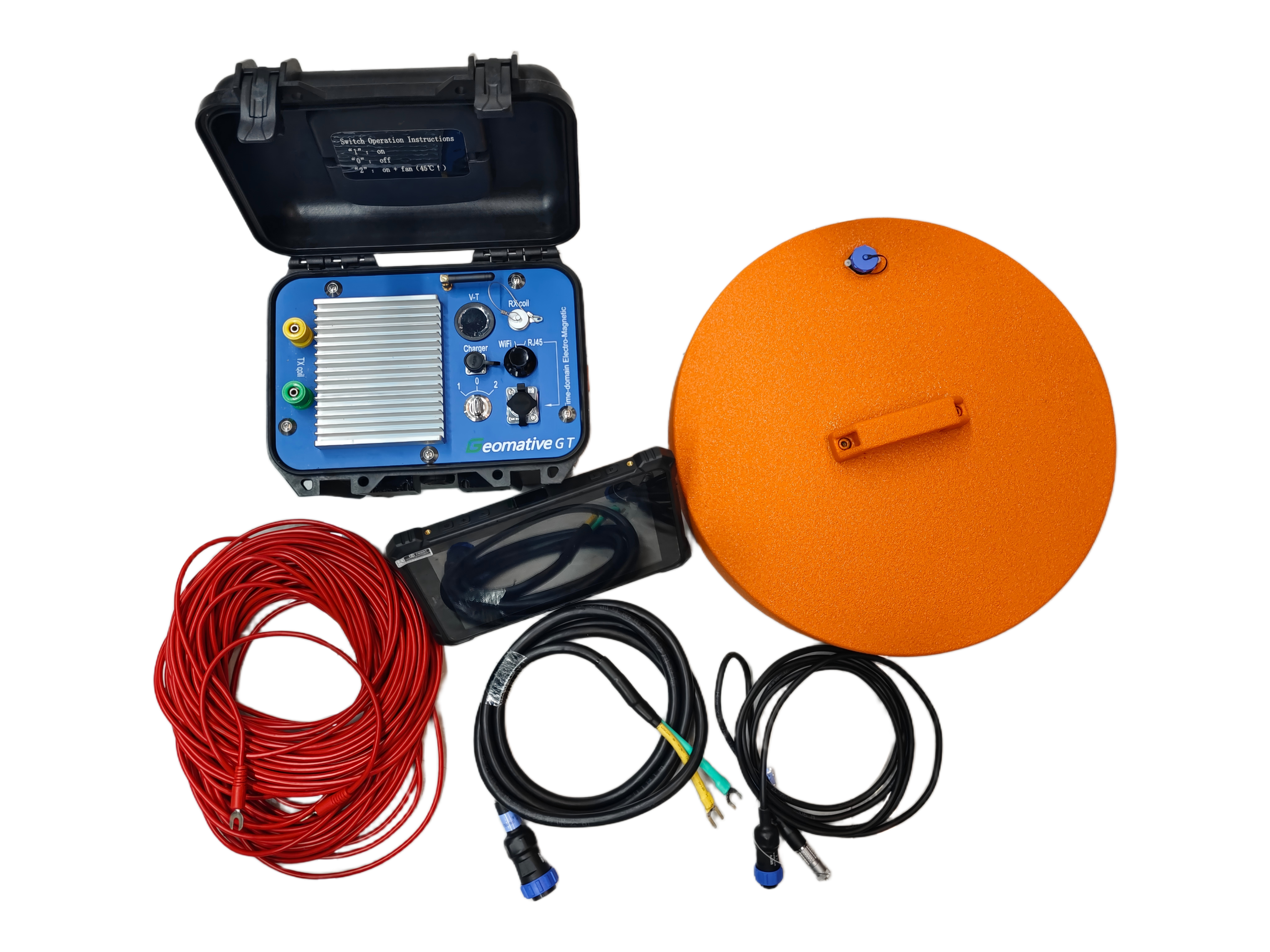

The standard kit is designed for field transport and routine survey setup. Actual contents may vary by model and order configuration.
Integrated Transmitter-Receiver Unit × 1
Industrial Tablet PC × 1
Ground TEM Probe × 1
Ground TEM Probe Connection Cable × 1
Transmitter Loop × 1
| Name | Model | Material Code |
|---|---|---|
| GT-10 Standard Kit | GT-10 Kit | M0.0009 |
| Transient Electromagnetic Instrument | GT-10 | M0.2001 |
| Industrial Tablet PC (including Network Cable) | ONERugged | M6.0001 |

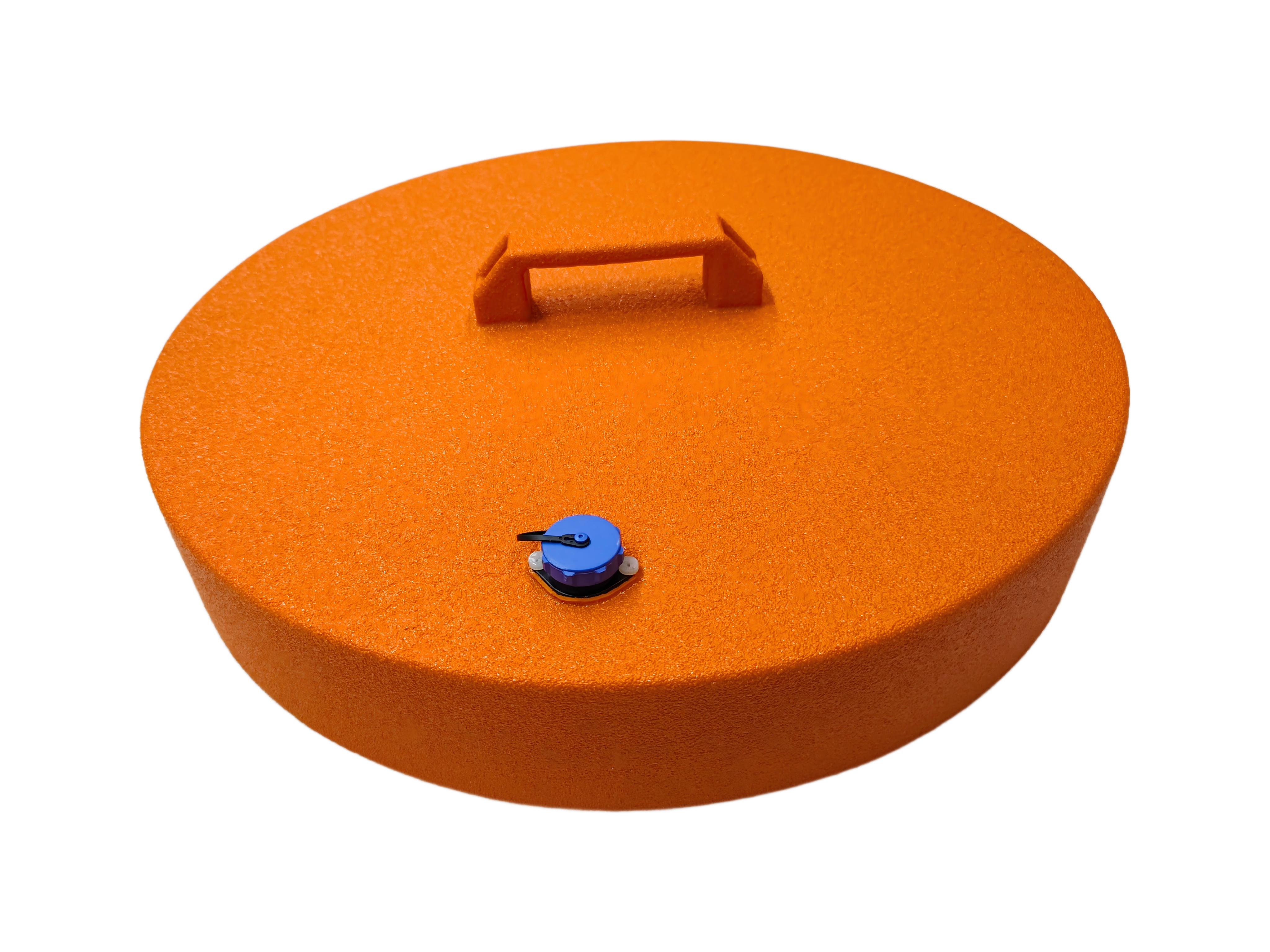

| Ground Receiving Probe | T-10 | M4.2001 |

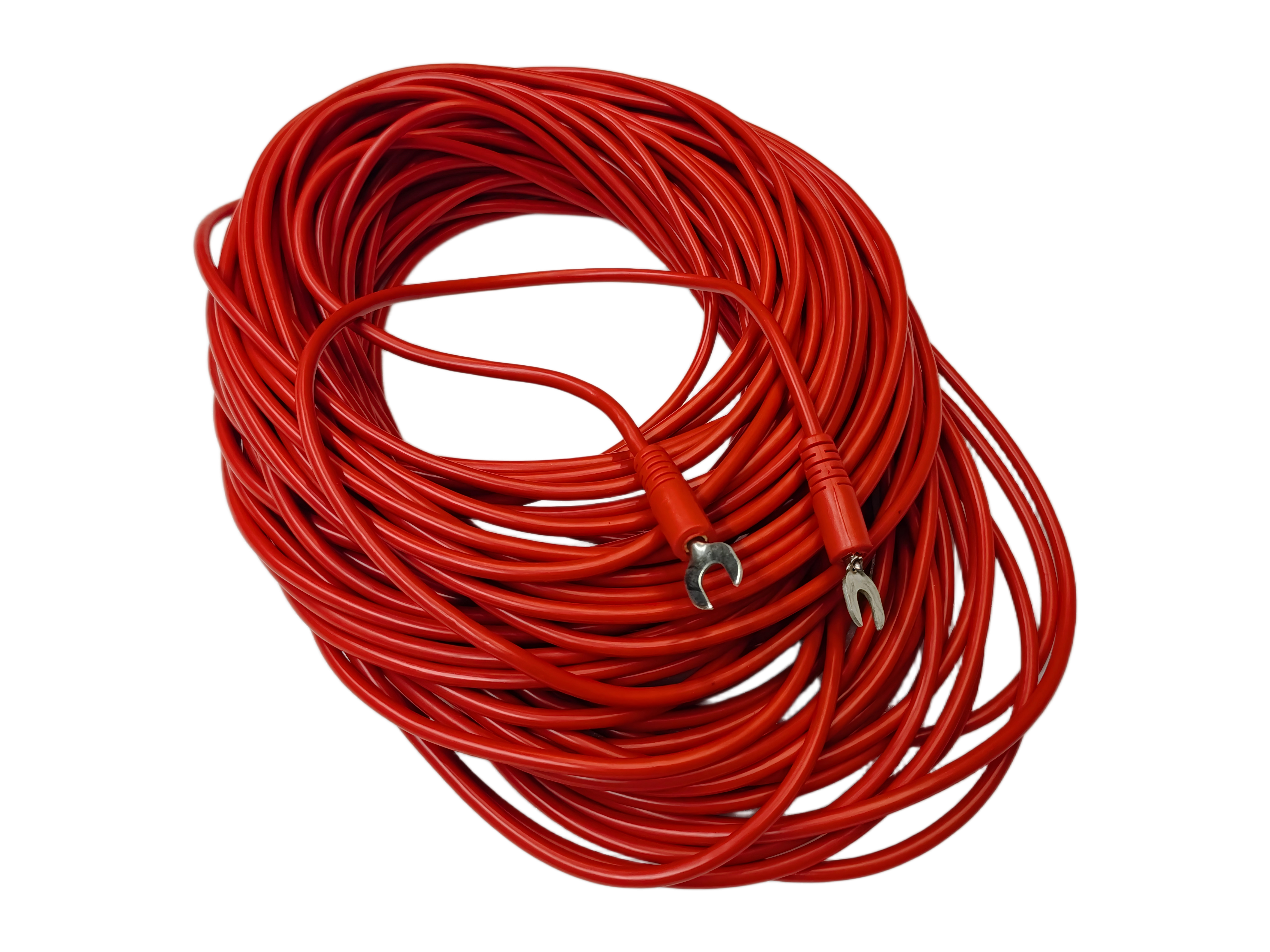

| Transmitter Loop | 6mm²*40m | M4.2002 |
| Ground TEM Probe Connection Cable | T-11 | M6.0014 |
| Processing Software (including USB Dongle) | TEM Processing Software | M5.1010 |
| TEM Backpack Harness | Dual-Shoulder | M6.0006 |
| TEM Charger | CDQ-5 | M4.1005 |
| Tablet PC Charger | CDQ-6 | M4.1006 |
Data Cable
| Material Code | Model | Name | Plug |
|---|---|---|---|
| M6.0014 | T-11 | Surface TEM Probe Connection Cable | Waterproof Aviation Plug |
